Signal Specification, Audio Module (AUD)

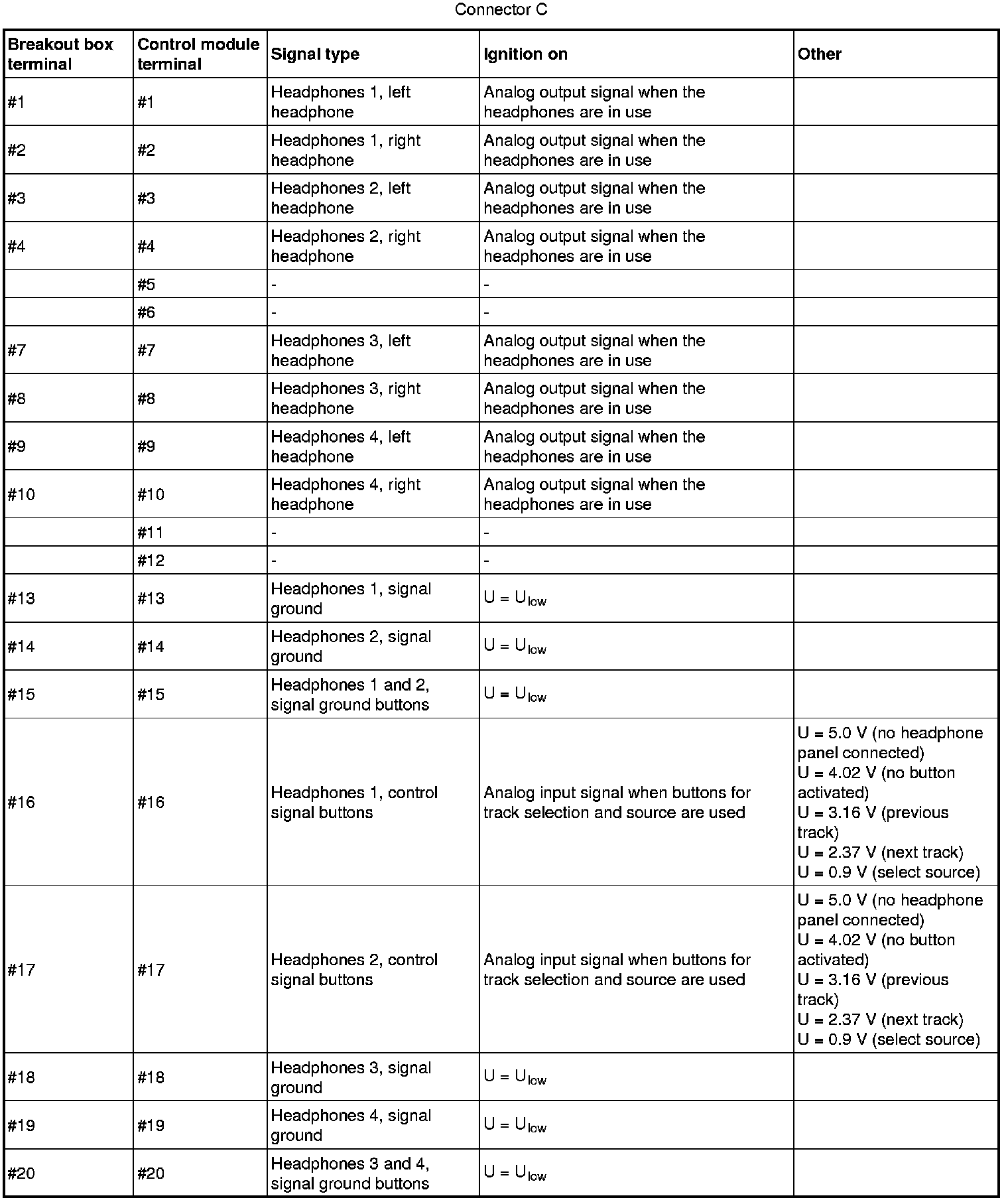

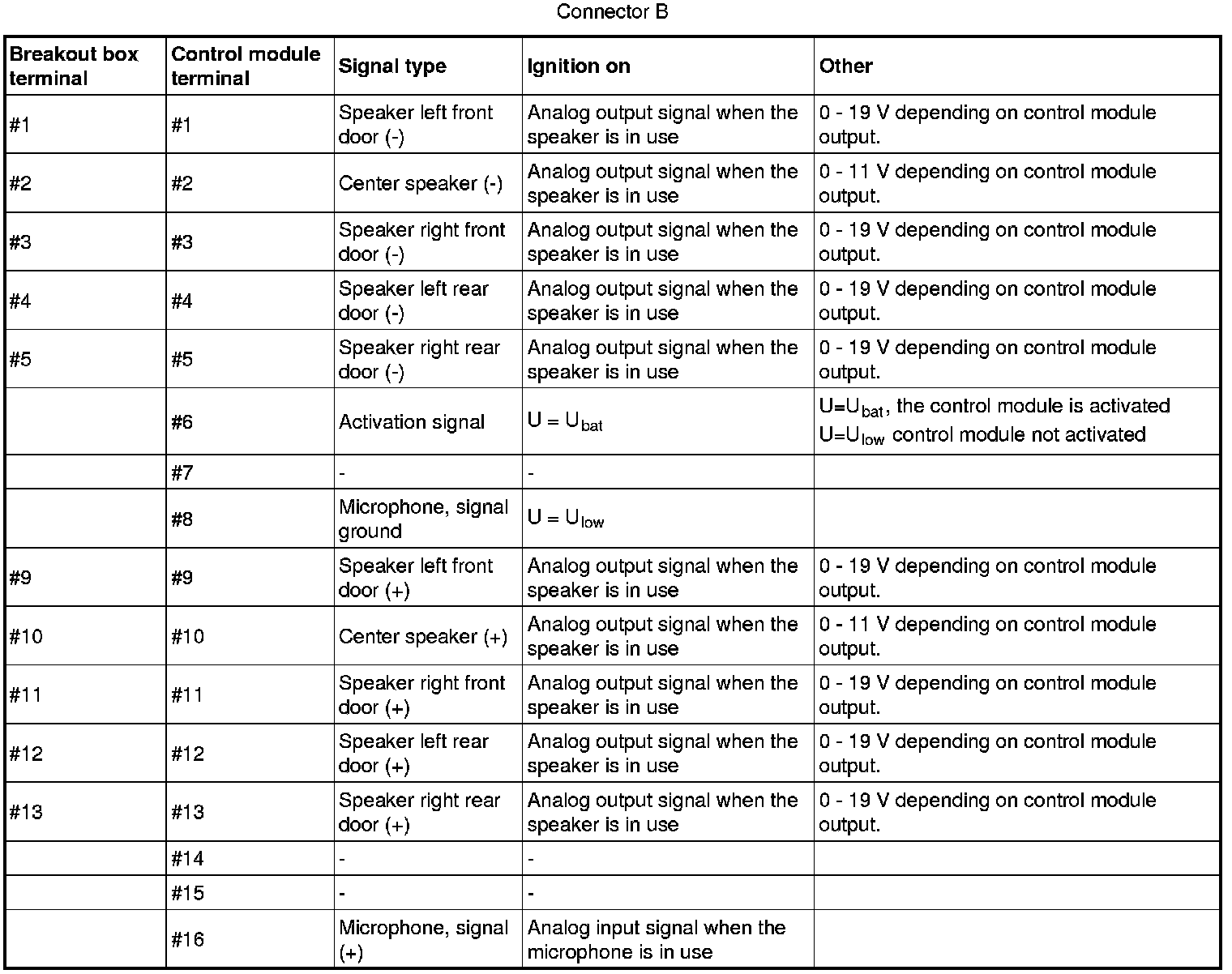

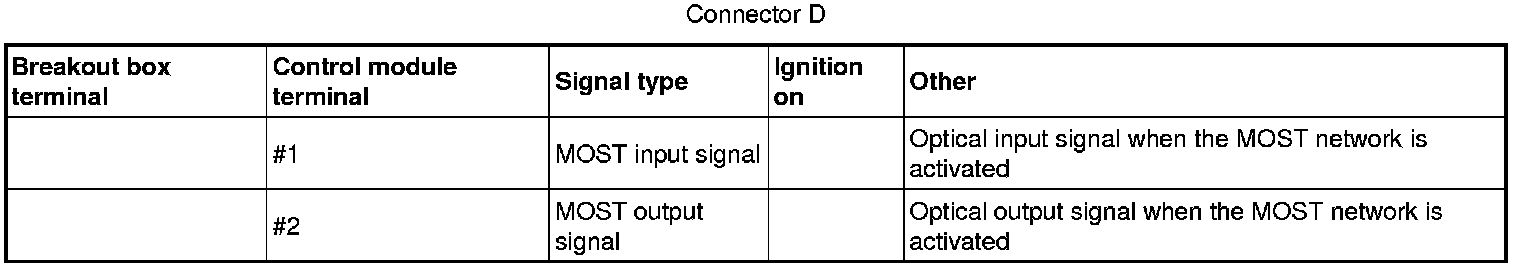

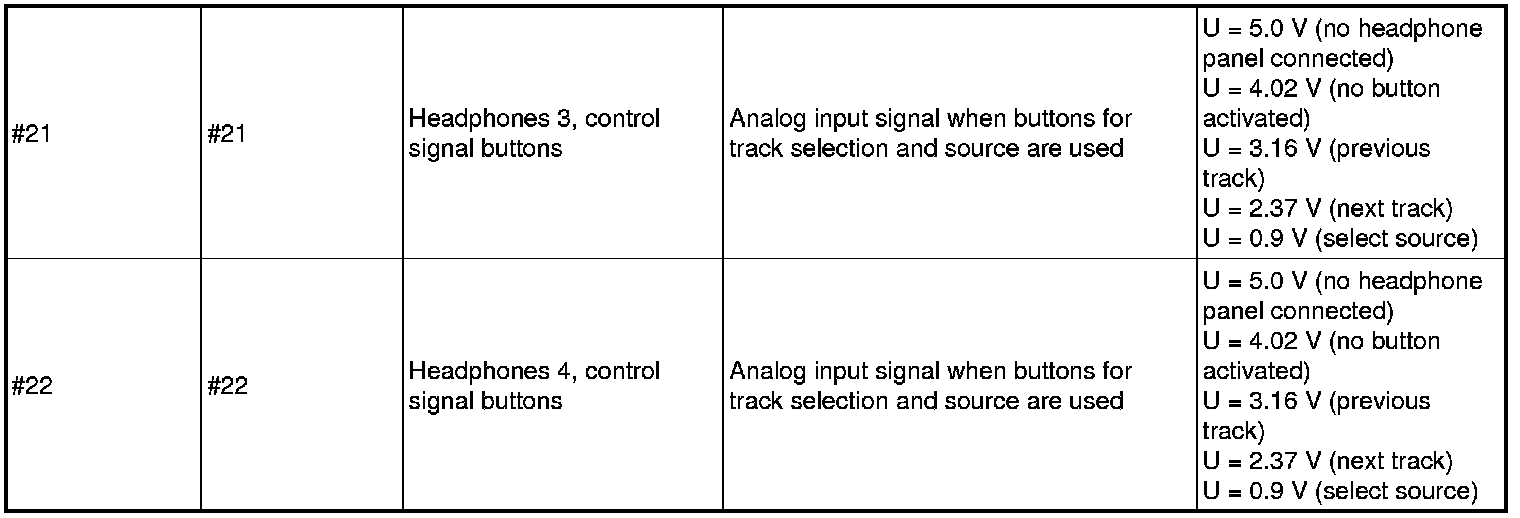

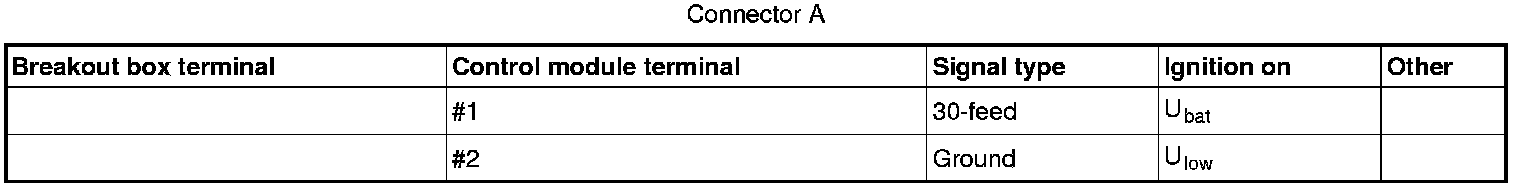

Signal specification

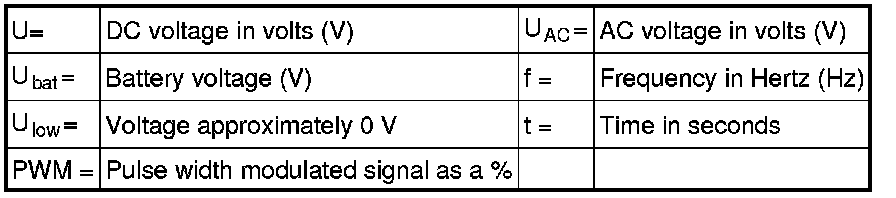

General































Note! The connector is only on cars with headset panels.
