Variable Induction System: Service and Repair

Operation number: 25132-2

Distribution damper intake manifold

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

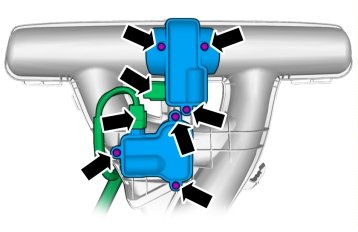

Remove the intake manifold. Refer to: Induction pipe, B6324S5 Service and Repair.

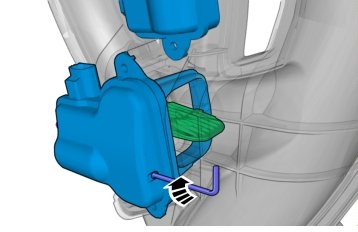

If the damper has jammed in the open position it must be screwed back as illustrated.

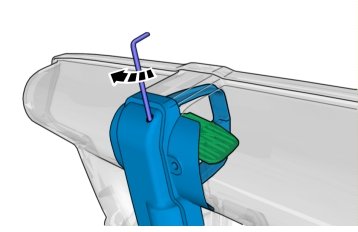

Make a hole at the mark and screw clockwise to close the damper.
Use: Allen key, 3 mm.






Installation

To install, reverse the removal procedure
