Steering - Steering Wheel Vibration/Booming Noise In Rear Seat
Technical JournalTITLE:
Steering wheel vibrations and/or booming noise from rear
seat position at idle
CAR MARKET:
United States
ISSUING DEPARTMENT:
Technical Service
REF NO:
TJ 27132
ISSUE DATE:
YEAR
2012
MONTH
12
DAY
21
PARTNER:
3 US 7510 Volvo Cars North America
FUNC DESC:
Steering
FUNC GROUP:
6400
"Fixed Right - First Time"

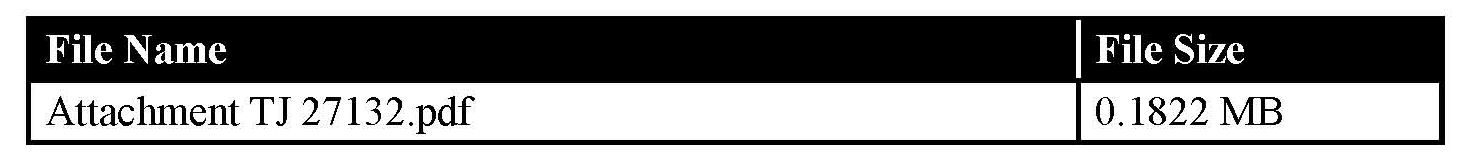

Attachment
Vehicle Type

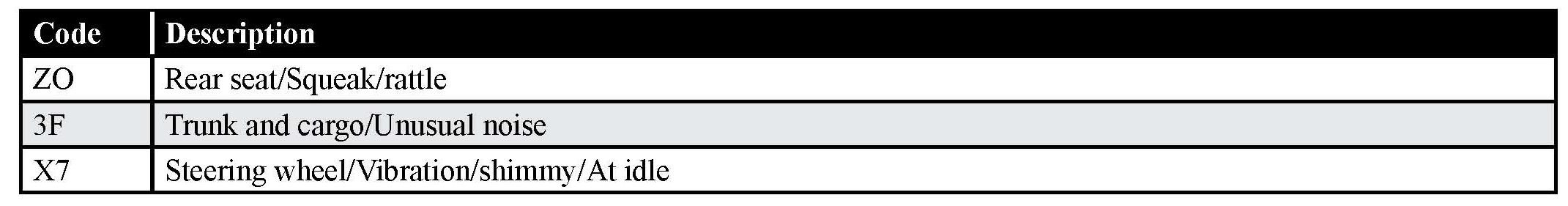

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
Note!
If using a printed copy of this Technical Journal, first check for the latest online version.
DESCRIPTION:
Vibration in steering wheel and/or booming noise heard when sitting in the rear seat may occur during idling.
PRODUCT MODIFICATION:
An oscillation damper for the steering wheel and new Engine Control Module (ECM) software has been developed to be used as service solution for steering wheel vibrations. For reduction of noise in rear seat, see instruction.
SERVICE:
If the customer complaint/symptom is confirmed, do as follows:

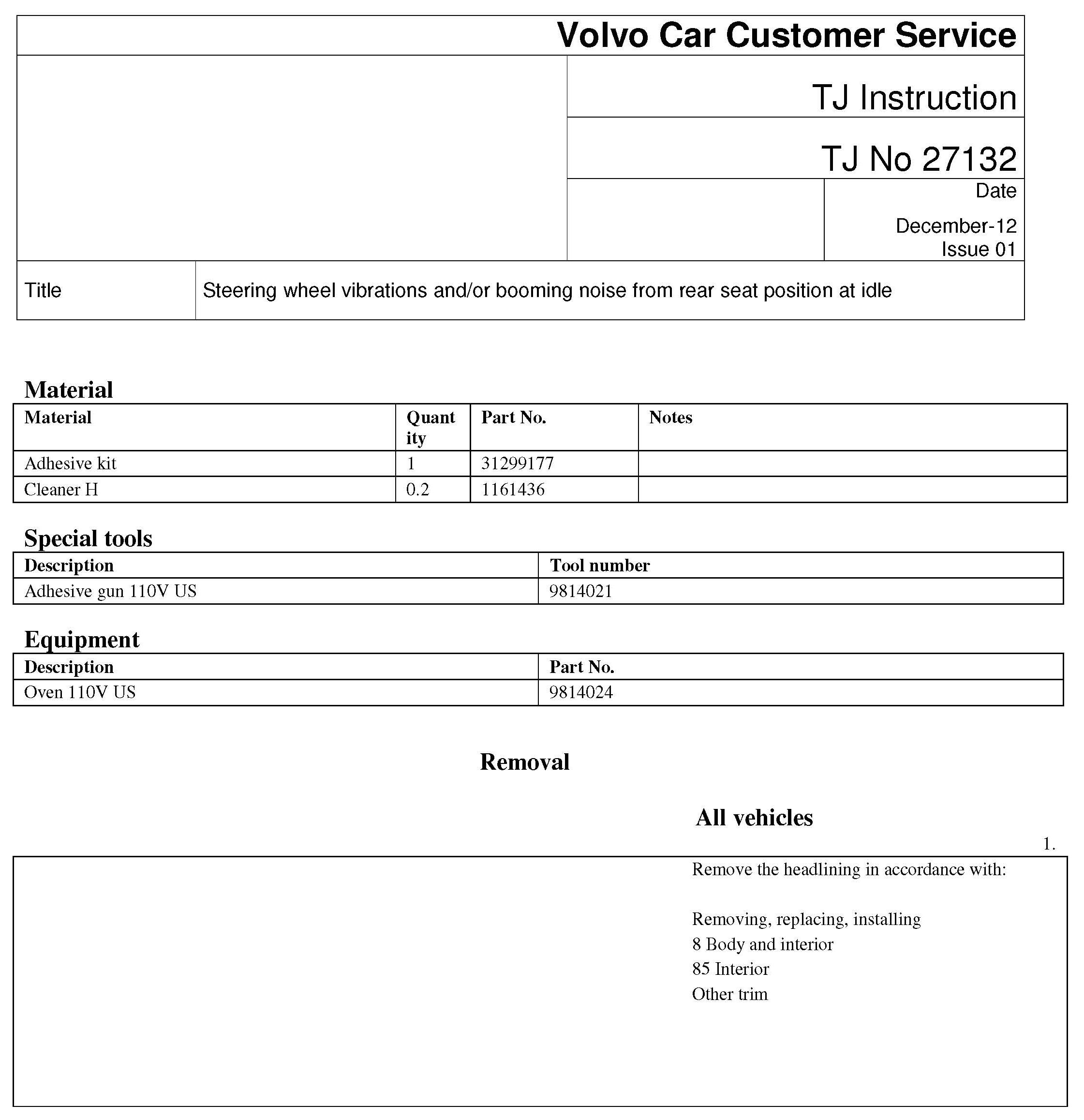

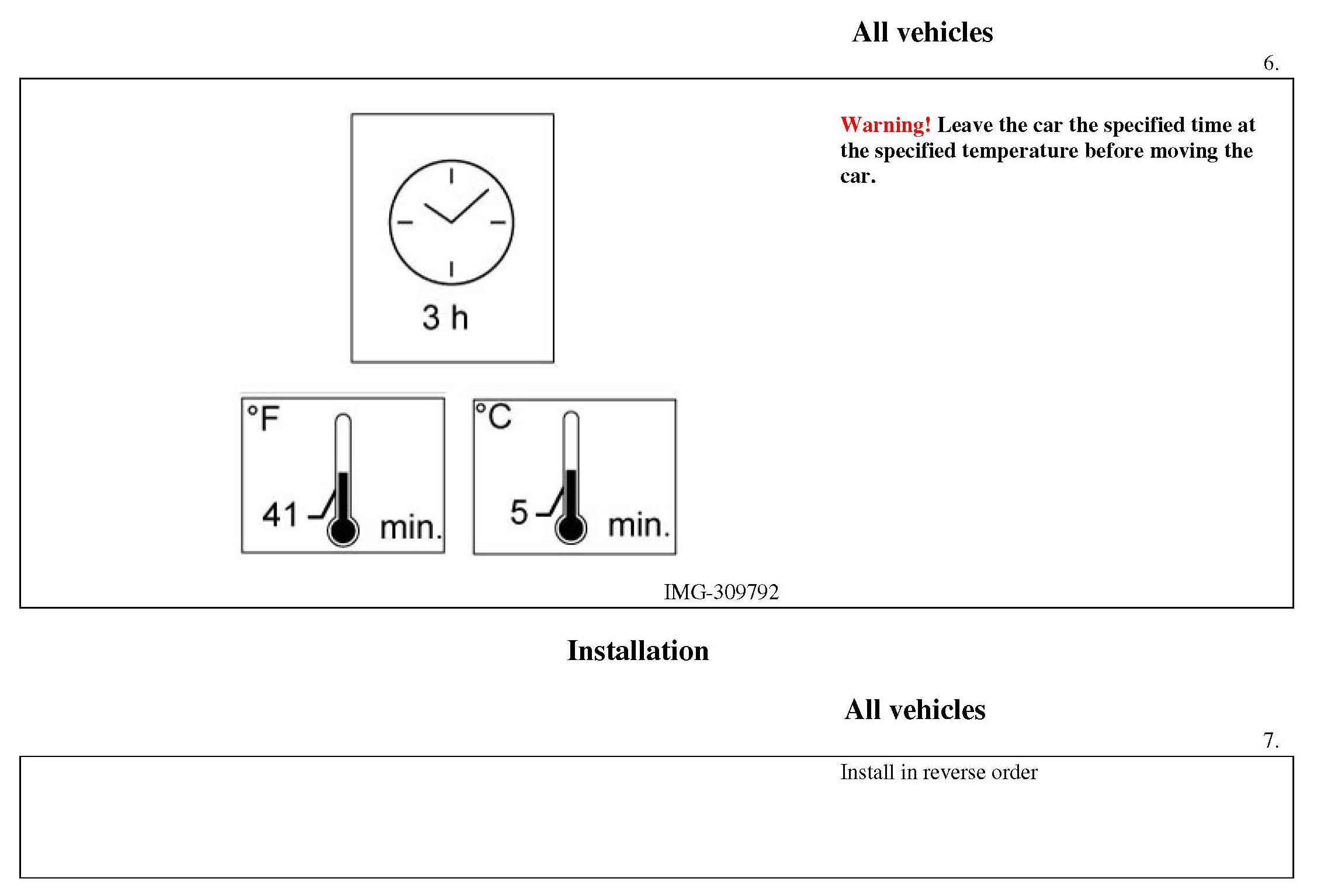

Perform actions according to attached repair instruction to reduce the noise level.
Install oscillation damper in the steering wheel according to VIDA (part number 31390240 for 3-spoke steering wheel or part number 31390241 for 4-spoke steering wheel). Follow the Removal, Replacement, and Installation for 64: Steering wheel. Also perform an ECM upgrade according to VIDA.
All steps need to be done to solve the problem.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number 98444-2 - Ceiling adjustment according to TJ 27132 - 3.6 hrs
Operation number 36004-2 - Software control module downloading - See VSTG
Operation number 64104-2 - Steering wheel replace - See VSTG
Continue to view TJ attachment
