Refrigerant Pipe Condenser to Expansion Valve

Refrigerant pipe condenser to expansion valve

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.


Warning! Follow the safety instructions for work on the air conditioning system. Refer to: Refrigerant, safety regulations Refrigerant, Safety Regulations.

Note! First read the instructions covering slow and fast leaks. Refer to: Oil air conditioning (A/C) system, filling Oil Air Conditioning (A/C) System, Filling.

Drain the refrigerant from the system. Refer to: Refrigerant, draining Refrigerant, Draining
Remove the right headlight. Refer to: Headlight/bulb, replacing Headlamp/Bulb, Replacing

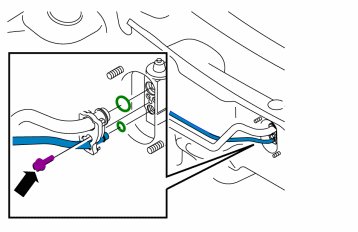

Torque: M6, 10 Nm

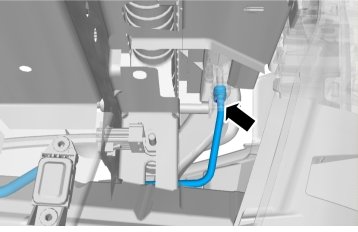

Remove the upper torque rod. Refer to: Upper torque rod, B6324S5 Upper Torque Rod


















Torque: M6, 10 Nm





For vehicles with rear AC
Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Vacuum pump the A/C system. Refer to: Vacuum pumping Vacuum Pumping.
Fill the AC-system with refrigerant. Refer to: Refrigerant, filling Refrigerant, Filling
Leak-trace the air conditioning system. Refer to: Leak tracing, fluorescent tracing agent / UV lamp Leak Tracing, Fluorescent Tracing Agent/UV Lamp
Carry out a performance test on the climate control system. Refer to: Climate system, performance test Climate System, Performance Test
