Oil Pump: Service and Repair

Operation number: 22114-2

Oil pump

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the oil pan. Refer to: Oil pan, B6324S5 Service and Repair.










999 7313 Puller 999 7313 Puller

Installation






Install the following items:

1.
2.
3.
Note! Only tighten the bolt finger tight at this stage.

4.
Note! Only tighten the bolt finger tight at this stage.

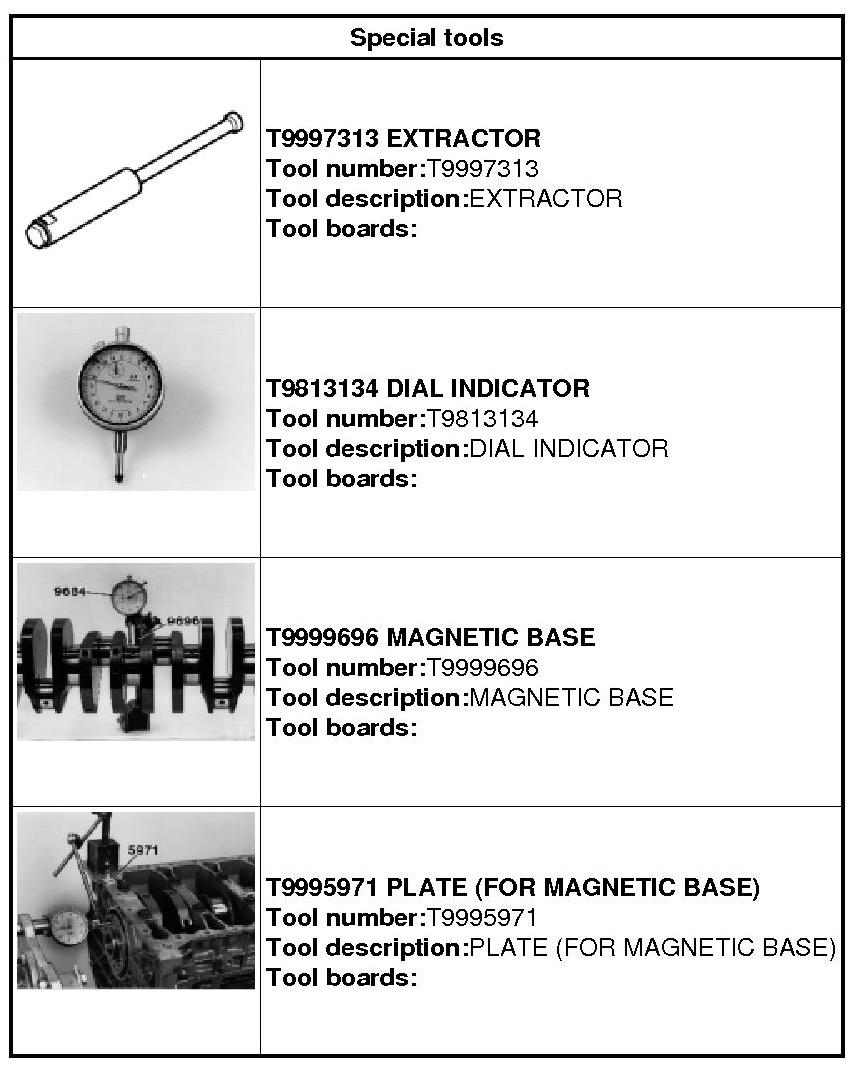

981 3134 DIAL INDICATOR 981 3134 Dial Indicator 999 9696 MAGNETIC BASE 999 9696 Magnetic Base 999 5971 PLATE 999 5971 Plate





See information about specifications Engine, B6324S5 Engine





M6. Refer to: Tightening torque, B6324S5 Tightening Torque





M7. Refer to: Tightening torque, B6324S5 Tightening Torque

Install the oil pan. Refer to: Oil pan, B6324S5 Service and Repair.
