Valve Cover: Service and Repair

Operation number: 21144-2

Valve cover

Note! Some variation in the illustrations may occur, but the essential information is always correct.











Removal

Remove the inner gasket, timing cover. Refer to: Gasket, inner timing cover, B6324S5 Gasket, Inner Timing Cover































Caution! Take extra care not to damage the mating faces.

1.
Note! Only use moderate force.

2. Caution! Take extra care when handling the components.






Caution! Note the position of each component before removal.






Caution! Note the position of each component before removal.

Installation






Caution! Make sure that the mating faces are clean and free of foreign material.

Caution! Make sure that the oil galleries are clean and free of foreign material.

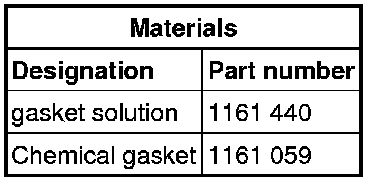

Use: gasket solution, 1161 440

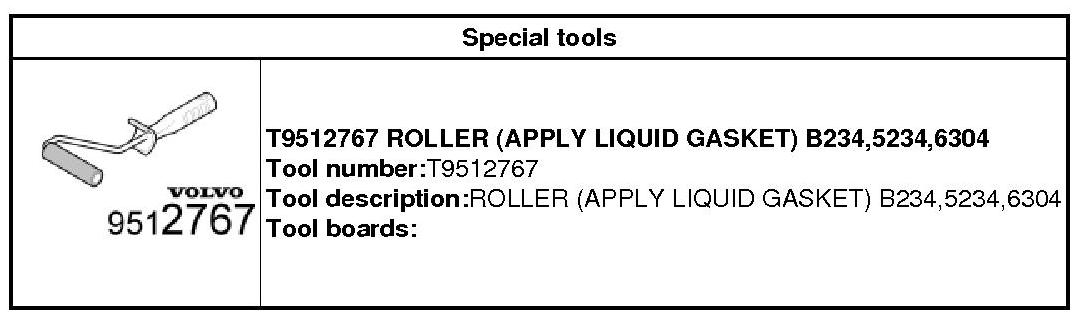

Use special tool: 951 2767 Roller 951 2767 Roller

Use: liquid gasket, 1161 059






Note! Make sure that these components are installed to the noted removal position.






Note! Make sure that these components are installed to the noted removal position.






Note! Make sure that the installation marks are aligned.






Caution! Take extra care not to damage the mating faces.

1. Caution! Take extra care when handling the component.

2.
Note! Only use moderate force.





Tightening torque: M7, 17 Nm










Tightening torque: M7, 17 Nm





1. Tightening torque: M6, 10 Nm
2. Tightening torque: M10, 50 Nm





Tightening torque: M6, 10 Nm







Install gasket inner timing gear casing. Refer to: Gasket, inner timing cover, B6324S5 Gasket, Inner Timing Cover.
