Connecting Rod: Specifications










Connecting Rod Cap Bolts
Install new bolts
Stage 1 12 Nm
Stage 2 20 Nm
Stage 3 90°

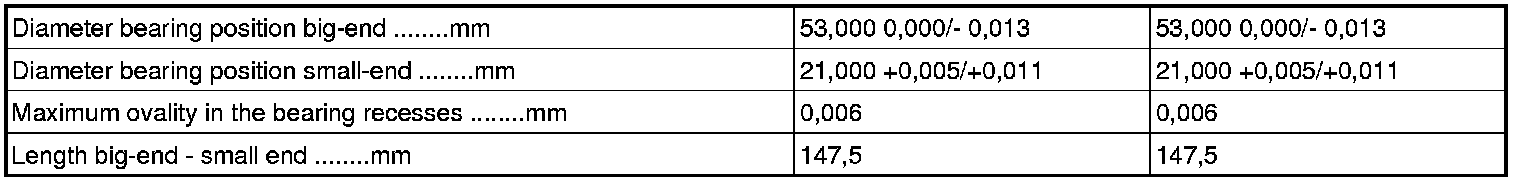

Connecting Rods
