Radiator Cooling Fan: Service and Repair

Operation number: 26361-2

Engine cooling fan (FC)

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.







Drain the coolant. Refer to: Cooling system - draining, charging and bleeding Service and Repair

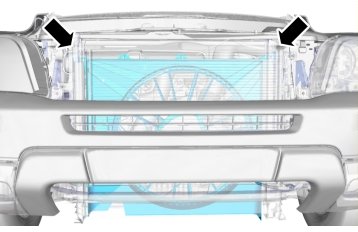

Note! Do not remove the screws completely.

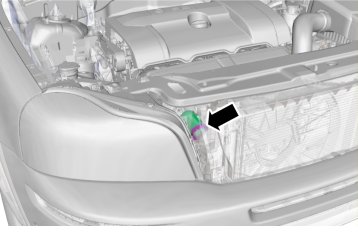

Use suitable paper to absorb any escaping fluid.

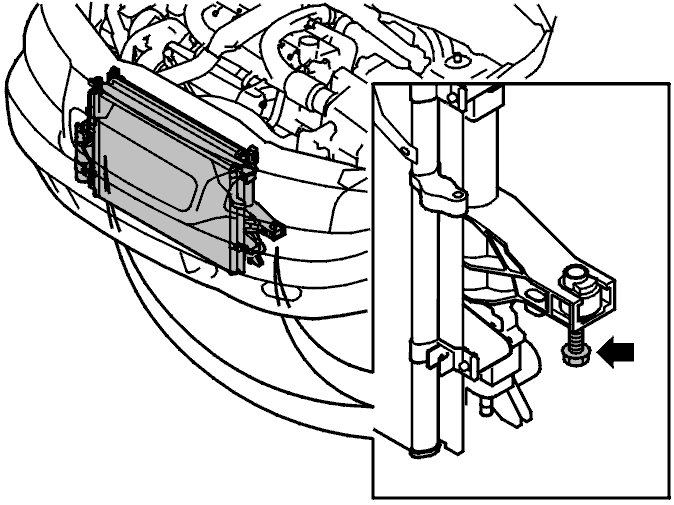

Torque: M6, 10 Nm






Installation

To install, reverse the removal procedure
