Door Lock Cylinder: Service and Repair

Lock cylinder side door, replacing

As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

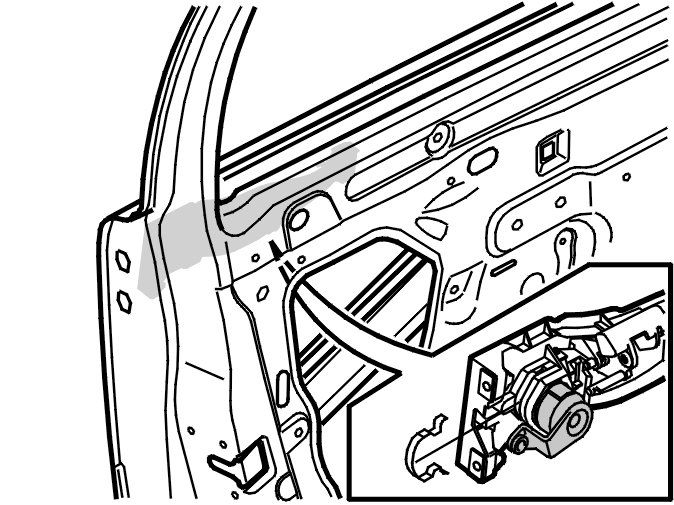

Removing the lock cylinder from the side door





Remove:
- the door panel. See Panel front side door, replacing Service and Repair
- the run-off profile
- the handle with deadlock. See Handle outer front side door, replacing Service and Repair
- the handle without deadlock. See Handle outer front side door, replacing Service and Repair
- the 1 clip
- the lock cylinder.

Installing the lock cylinder in the side door

Install:
- the lock cylinder
- the 1 clip
- the handle with deadlock. See Handle outer front side door, replacing Service and Repair
- the handle without deadlock. See Handle outer front side door, replacing Service and Repair
- the run-off profile
- the door panel. See Panel front side door, replacing Service and Repair.
