Home >> Volvo >> 2012 >> XC90 R Design AWD L6-3.2L VIN 95 B6324S5 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

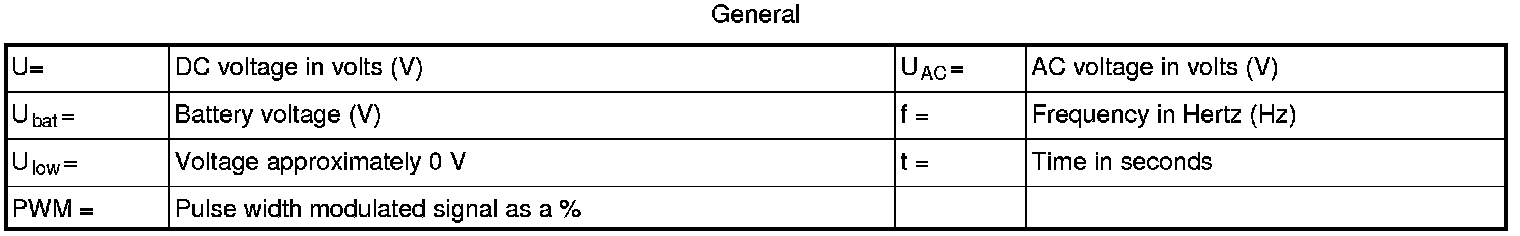

Signal specification

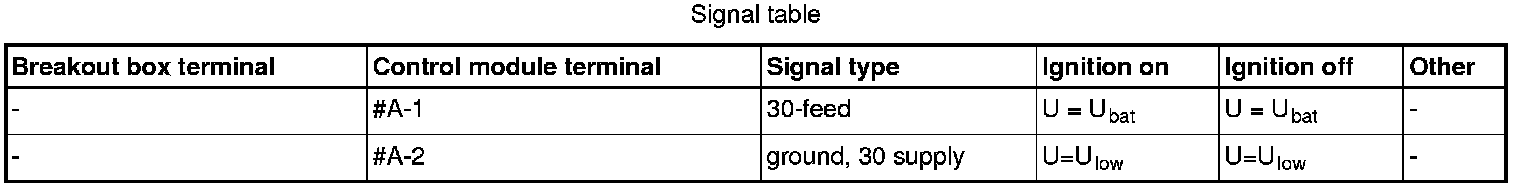

Connector A

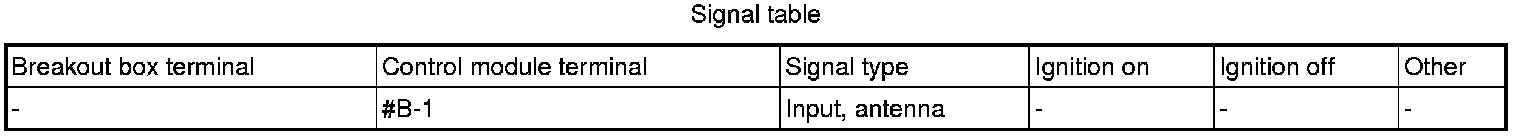

Connector B

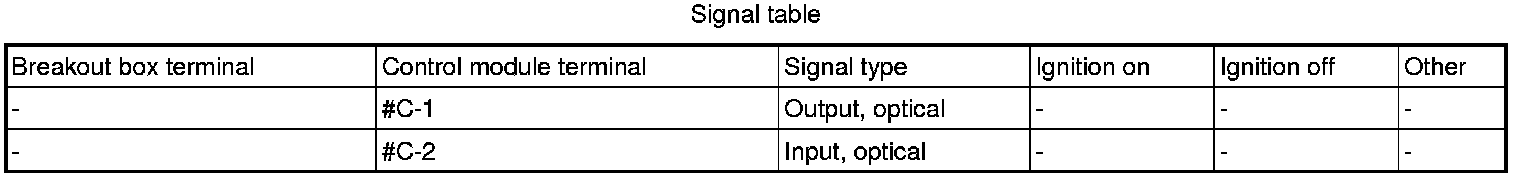

Connector C
