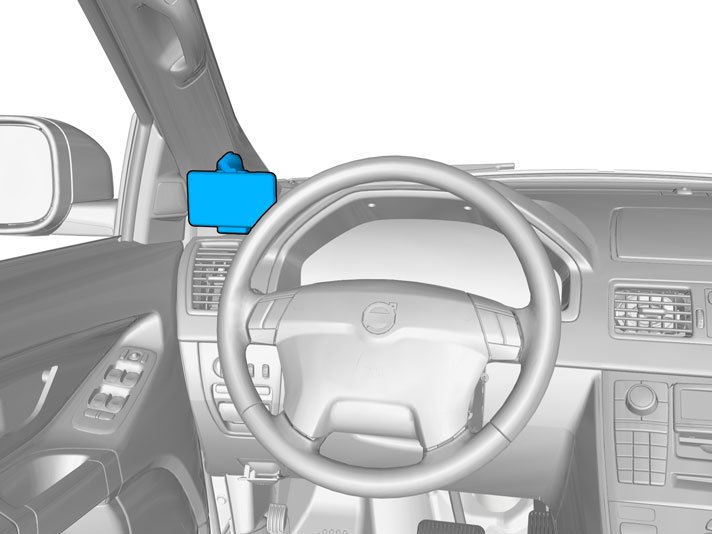

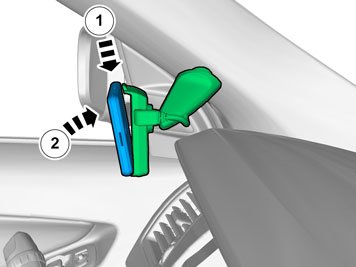

Portable Navigation System











Navigation system, portable

Equipment


































Kit contents









Operation number: 39730






Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions

Where the procedure differs, the right-hand version is also shown with text and image.

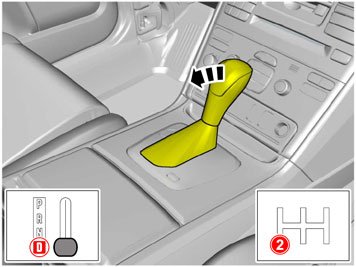

Set the ignition key to position 0.

Removal

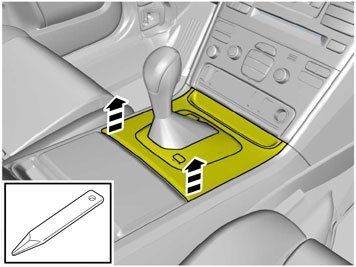

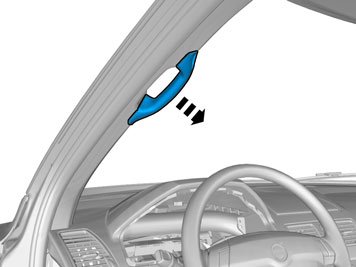

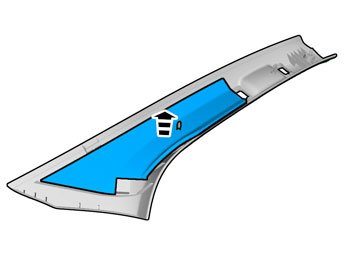

Remove the panel.

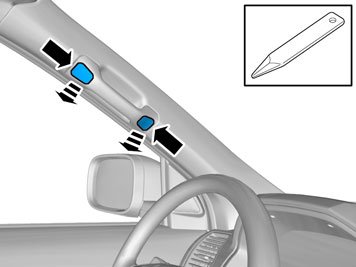

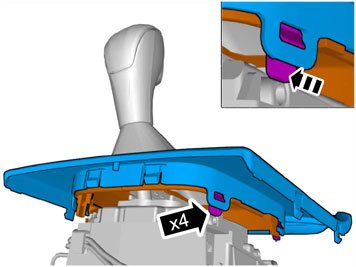

Release the lock.

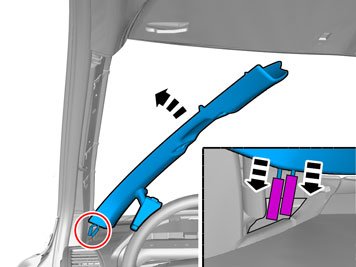

Detach the panel.

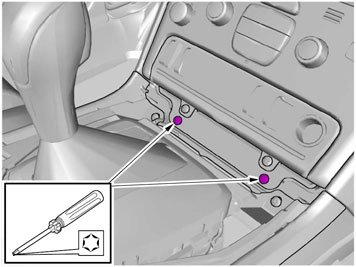

Remove the screws.




Remove the panel.




Remove the screws.








Disconnect the connector.








Remove the screws.

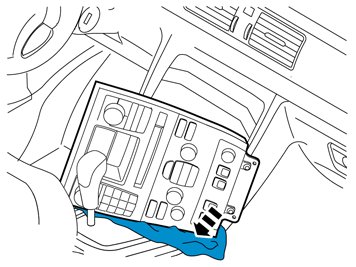

Remove the panel.

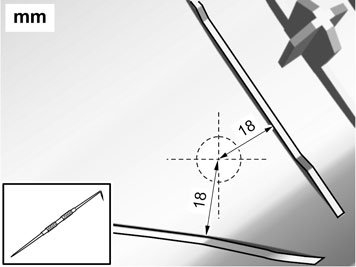

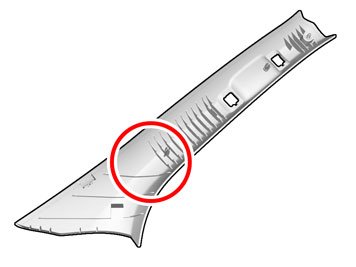

Measure and mark as illustrated.












Center the holes against each other.





Note! Ensure that the part is correctly positioned against the panel's surface.

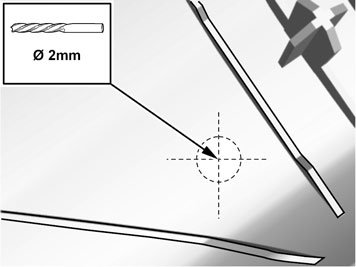

Drill the holes.




Install the screws.








Remove the screws.




Adjust the cable length so that the marking ends up as displayed in the image.

Right-hand drive vehicles




Adjust the cable length so that the marking ends up as displayed in the image.

All vehicles




Install the screws.

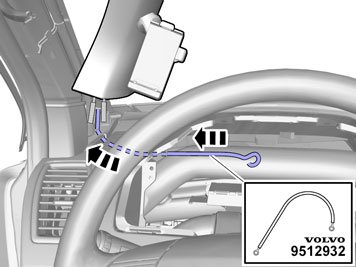

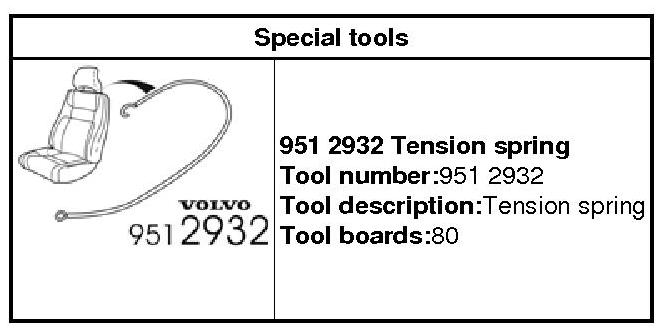

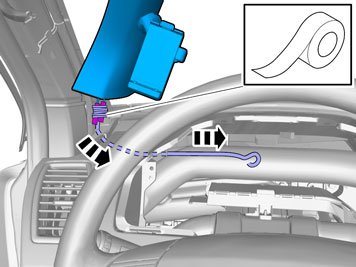

951 2932 Tension spring 951 2932 Tension Spring

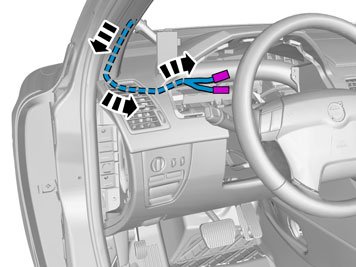

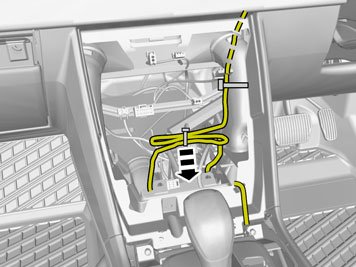

Pull the wiring through.




Install the panel.








Reinstall the screws.

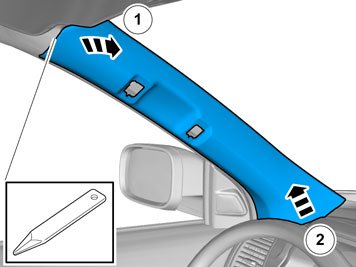

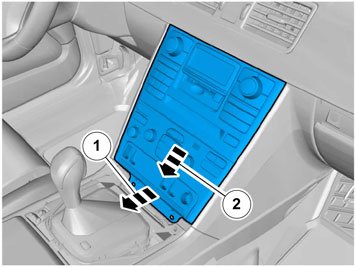

Detach the panel.




Release the lock.




Remove the screws.





Caution! Be extra careful when removing or installing this component.

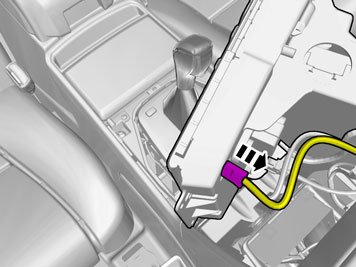

Disconnect the connector.

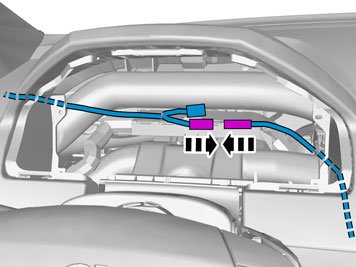

Connect the connectors.

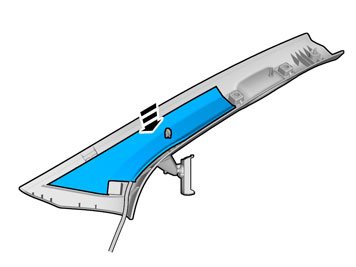

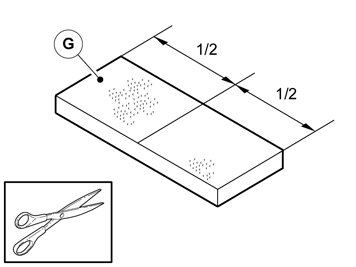

Tear off the excess foam tape.

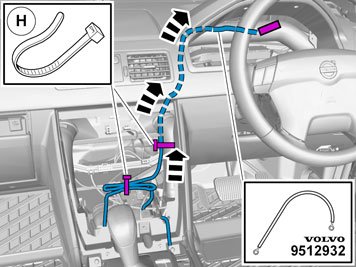

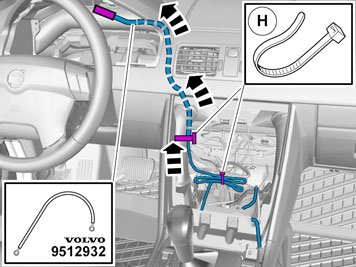

951 2932 Tension spring 951 2932 Tension Spring
Attach the wiring, using clips.





Right-hand drive vehicles




951 2932 Tension spring 951 2932 Tension Spring
Attach the wiring, using clips.





All vehicles




Connect the connectors.

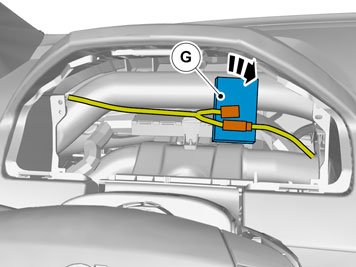

Tear off the excess foam tape.

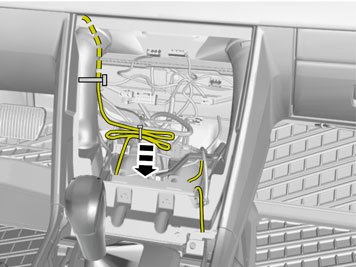

Attach the wiring, using clips.
Reinstall the removed parts in reverse order.
