Part 2

Note! Turn the plastic nut so that it faces the right way.





- Remove the cover panel under the tail lamps on the right and left sides by carefully prying them loose using a weatherstrip tool.





- Loosen the rear fog light at the front with a weatherstrip tool. Done on both sides.





- Remove the tail light by removing the two nuts and pulling them back. Done on both sides.





- Take antenna and holder from the kit.
- Place the antenna in the casing and the cable in the slot.
- Snap together the casing's top and bottom parts. Done twice.





- Install the holders on the casing.
- Repeat the on the other casing.





- Get antenna for left side (long cable) and unplug the grey connector.
- Insert casing with antenna in the outlet for fog lights.
- Press on the casing's holder on the plastic flange at the bottom edge of the plastic console.





- Route the cable up through the bumper so that it comes out at the top of the plastic console.





- Remove the top part of the foam tape that covers the hole.





- Get the rubber bushing from the kit and open it up with expander pliers.
- Insert the antenna cable. Route the cable so that the length of the cable between the bushing and the top of the plastic console is 250 mm.
- Install a strip clamp around the collar on the rubber bushing so that it closes tightly around the cable.
- Cut off excess strip clamp.

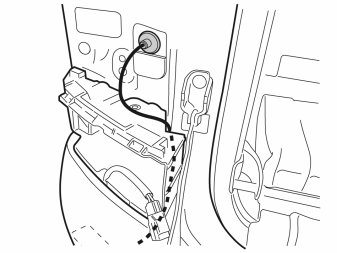

- Insert the antenna cable through the hole in the body so that it comes out in the passenger compartment.





- Check that the rubber bushing's flanges close tight against the body hole.





- Install the strip clamp on the sheet metal flange.
- Clamp down the antenna cable in the clamp.
- Cut off any excess strip clamp.
- Carry out on both sides.





- Connect the removed antenna cable.

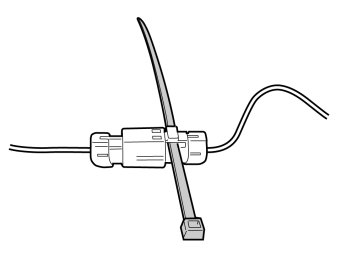

- Insert a strip clamp though the connector.
- Carry out on both sides.





- Clamp down the connector in existing cable harness (1).
- Clamp down the cable in existing cable harness with the strip clamp (2).
- Carry out on both sides.

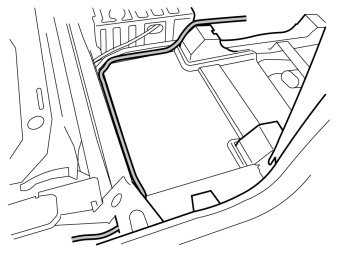

- Route the antenna cable along existing cable harness over to the right side through the hole in the polystirene plastic under the right member.





- Fasten the cable with strip clamps.

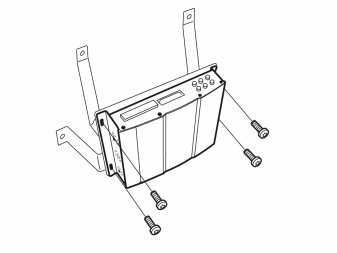

- Get TV-tuner, console, as well as four screws from the kit.
- Tighten down the tuner on the console.





- Take the cable harness from the kit.

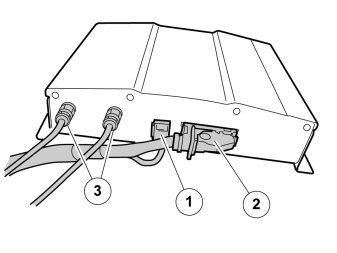

- Plug in the connectors in the order as shown.

Note! Tighten the nuts on the antenna cables' contacts as much as possible with your fingers while the black part of the contact is held down. Then tighten the nuts (3) one complete turn with a wrench.

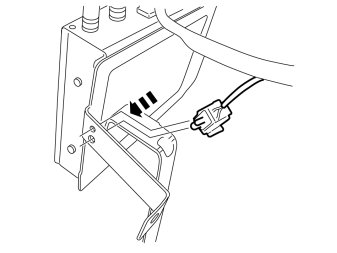

- Install fuse holders in the holes on the inside of the console.

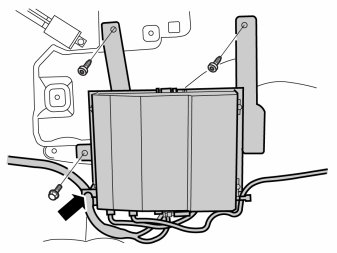

- Fasten the console with screws from the kit.

Note! Cut away a piece of insulation for the lower attachment.

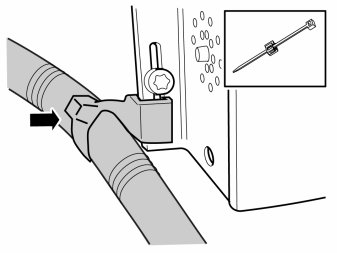

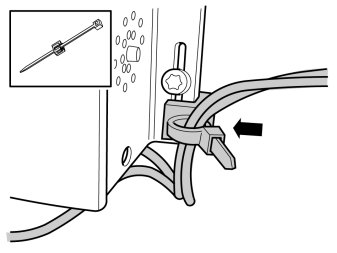

- Install the strip clamp on the tuner's sheet metal flange.
- Clamp down the antenna cables.





- Install the strip clamp on the tuner's sheet metal flange.
- Clamp down the cable harness.





- Fold aside the noise absorbent so that the sheet metal flange is visible.
- Install the strip clamp on the sheet metal flange.
- Clamp down both cables (1).
- Fold back the noise absorbent.
- Clamp down both antenna cables and excess cable in existing cable harness.

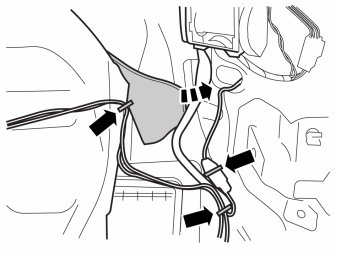

- Route the cable harness along the wheel housing down to the belt anchor.
- Fasten with strip clamps.





- Fasten the cable harness in the belt anchor with strip clamp.





- Fold up the floor mat.

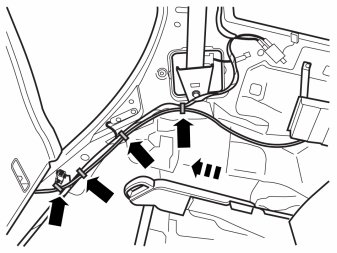

- Place the cable harness between polystirene plastic and body under the floor mat so that it runs along the floor sides on to the tunnel.
- Make sure that the yellow marking on the cable harness is placed on the cable harness by the mat's edge at the tunnel.

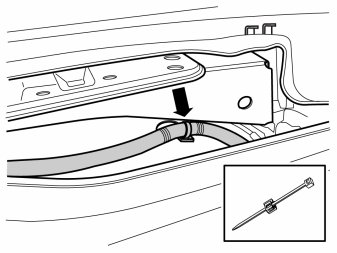

- Install the strip clamp on the sheet metal flange.
- Fasten the cable harness.

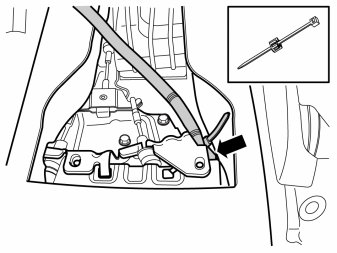

- Install the strip clamp around the cable harness by the yellow marking and press to fasten the clamp on the parking brake console's flange.





- Get the side panel.

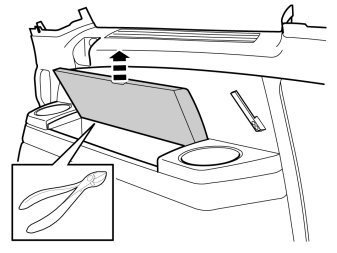

- Cut away the strip clamp and remove the cover.





- Remove the belt holder and rough up the fabric where the holder has been installed.





- Remove the rear cup holder.


Illustrations A and B

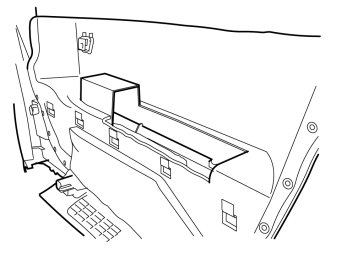

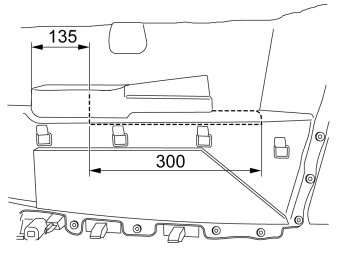

- Measure and mark out on the inside of the side panel as shown.
- Saw according to markings.









- File down the edges.

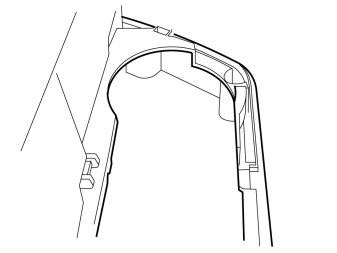

- Saw by the side panel's rear cup holder as shown.





- File down the edges.





- Take the casing from the kit.

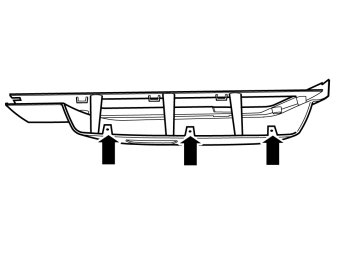

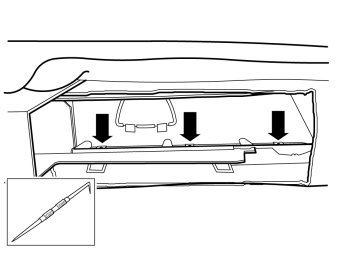

- Mark out the middle on the three flanges with a scribe.
- Drill using a 3.5 mm bit.





- Fasten tape as shown.





- Temporarily install the casing.





- Mark the casing's three drilled holes on the tape.
- Remove the cover.





- Punch holes in the markings and through the panel with an awl or scribe. Remove the tape.
- Drill holes using a 7 mm bit.





- Install the casing. Check from the rear that the four catches have engaged.

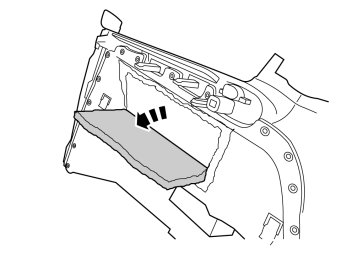

- Loosen the insulation at the top and on the sides.

Note! The insulation shall be left in place at the bottom.





- Tighten down the casing with three screws PF5x14 and three washers.

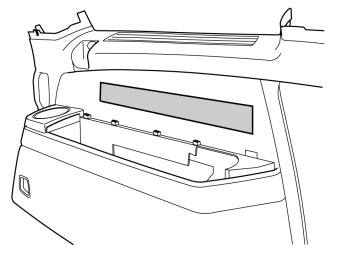

- Fold back the insulation and fasten it with three pieces of tape.
- Reinstall the side panel.
- Reinstall removed parts in reverse order. Tightening torque seat screws 40 Nm and load lashing eyes 25 Nm.
- Continue according to installation instruction Multimedia monitor with DVD, Dual Screen.
