TV receiver, digital































INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






TV-receiver, digital

Note! When installing Digital TV-receiver on car with existing RSE-system, start by changing the cable harness for the tunnel console. See installation instructions Multimedia monitor with DVD, Dual screen.





- Remove the right front seat mounting's panel of the second row's right seat by pressing down the pawl (1) on top and pulling it forward. Remove the screw underneath.





- Remove the panel for the front seat mountings of the second row's right seat/centre seat by pressing down the pawls (1) on top and pulling the panel forward. Remove the screw for the right seat.





- Fold down the backrest.
- Remove the seat links and bolts.
- Lift out the seat.

Note! This step should be performed carefully to avoid damaging interior or door panel.





- Carefully pry loose and remove the panel located over the joint between the door sills on the right side.





- Loosen the upper part of the sill moulding at the rear edge and loosen the seat belt from the end-fitting. The belt is loosened by carefully pressing with a weatherstrip tool on the lock lug so that it releases from the end-fitting.





- Pull the sill protection upward until the three clips release. Angle out the sill protection from the B-pillar panel.





- Insert a screwdriver through the hole (1) on the right seat's left rear seat link and press in the pawl. Move the link backwards by prying with a screwdriver between the seat rail and the link.





- Remove the rear roof panel covers and the screws beneath them.
- Carefully pry away the panel at the rear edge with a plastic weatherstrip tool.
- Pull the rear edge of the panel downwards until the four clips on the top have released.
- Unplug the connector for the lighting.
- Pull the panel backwards to release it.





- Pull loose the rubber strip at the trailing edge of the left door opening, directly opposite the C-pillar panel.
- Carefully pry off the left C-post panel by the sides at the top with a plastic weatherstrip tool. Then pull until the three clips on the inside release. Do not damage the headlining or the panel.
- If a headphone socket is mounted, disconnect the connector to such.
- Remove the panel by pulling upwards slightly and unhooking it from the side panel.





- Carefully loosen the pillar panel. Start at the top and continue downwards until the three clips on the inside have released.
- Remove the connector on the D-pillar panel. Cars with D-pillar speakers have the connector located on the speaker.
- Remove the panel by pulling upwards slightly and unhooking it from the side panel.





Applies to cars with two rows of seats
- Open up the floor hatch (1). If the floor hatch is equipped with a grocery bag holder on the underside, then it is fastened with a strap on both sides of the storage box. Then these shall be loosened by first removing the storage box under the floor hatch and then removing the floor hatch by almost closing it and pulling it backwards out of its attachments.
Applies to cars with three rows of seats and integrated carrier bag holder on the underside of the floor hatch.
- Fold up the floor hatch (1).
- Loosen the two straps on the underlying panel. Lift up the trailing edge of the panel, fold the floor hatch back towards the panel and lift out the floor hatch and panel.
Applies to cars with three rows of seats without an integrated carrier bag holder.
- Open the floor hatch (1) at the trailing edge and lift it out.





- Remove the three screws on the battery holder and lift it out.
- Remove the battery cover.





- Remove both covers on the floor.





- Remove both panels.





- Fold out the load lashing eye on the right side.
- Take a scriber or special tool part no. 9995919 and insert the angled point in the hole in the top edge of the cover.
- Twist the scriber so it grips the rear of the cover (1) and pull it loose. This should be performed on both the front and rear load lashing eyes.





Applies to cars with two rows of seats
- Remove the screws (2) on the load securing eyelets.
- Remove the cover (3), by prying off using a weatherstrip tool or a small screw driver.
- Remove the screws (4).
- Remove the panel by pulling it out slightly at the top edge so that the clips on the inside release. Then pull it straight up.
- Unplug the connector for the 12V socket.





Applies to cars with three rows of seats
- Fold up the left-hand seat in the third row of seats.
- Remove the screws (2) on the load securing eyelets.
- Remove the covers (3) by prying with a weatherstrip tool or a small screwdriver.
- Remove the screws (4).
- Remove the panel by pulling it out slightly at the top edge so that the clips on the inside release. Then pull it straight up.
- Unplug the connector for the 12V socket.

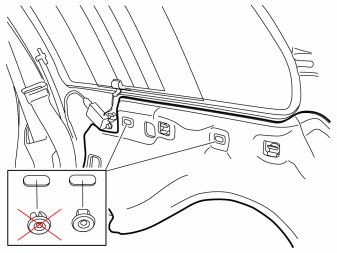

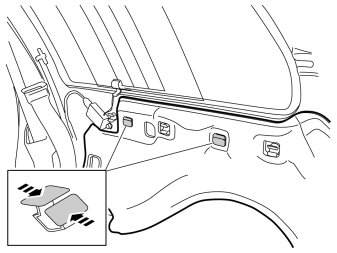

- Remove the two clips.





- Install plastic nuts in the holes where the clips were located, as shown.
