Checking of System For Parking Assistance Camera
Check of system for parking assistance camera
Introduction

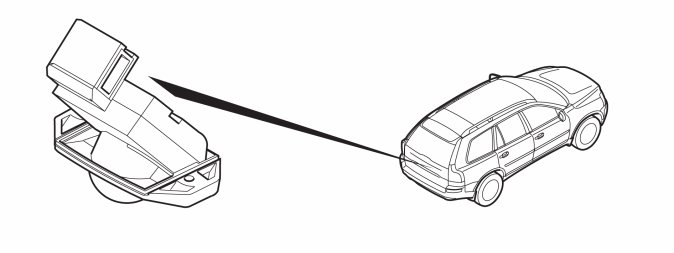

The system for the parking assistance camera facilitates reversing by using a screen to display what is behind the vehicle.
This troubleshooting is to remedy problems that can arise with the parking assistance camera module (PAC) and constituent components.
First check that no diagnostic trouble codes that could affect the parking assistance camera system are stored in the central electronic module (CEM), brake control module (BCM), multimedia module (MMM) or infotainment control module (ICM).
Continue - Conditions
-------------------------------------------------
Conditions
If the system for the parking assistance camera does not work as it should. First make sure that the following conditions are met.
- Ignition on.
- Reverse gear is engaged.
Does the system for parking assistance camera work?
Yes - DONE
No - Symptom selection
-------------------------------------------------
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit fault-tracing
No - Attempt New Test
------------------------
FAULT-TRACING FAILED - FAULT FOUND
Attempt New Test - Introduction
-------------------------------------------------
Symptom selection
A number of possible symptoms are listed below. Select the alternative that best describes the situation.
1. Screen does not come up even though reverse gear is engaged.
2. A picture other than the parking view is displayed even though reverse gear is engaged
3. Screen is up but not image is displayed even though reverse gear is engaged.
4. Image is frozen.
5. Help lines drawn incorrectly.
6. Help lines not drawn.
7. Picture comes and goes.
8. Picture missing.
Which symptom best describes the situation?
1 - Screen does not come up even though reverse gear is engaged
2 - An image other than the parking view is displayed even though reverse gear is engaged
3 - Screen is up but no image or distorted image even though reverse gear is engaged.
4 - Image is frozen
5 - Help lines drawn incorrectly
6 - Help lines not drawn, picture comes and goes, picture missing
7 - Help lines not drawn, picture comes and goes, picture missing
8 - Help lines not drawn, picture comes and goes, picture missing
-------------------------------------------------
An image other than the parking view is displayed even though reverse gear is engaged
Check that the installation instructions for the parking assistance camera system have been included for software installation.
Continue - Checking the function
-------------------------------------------------
Screen is up but no image or distorted image even though reverse gear is engaged.
Check the following:
- Cable between camera and parking assistance camera module (PAC) for open circuit, loose connection and oxidation.
- The video cable between the parking assistance camera module (PAC) and the screen for open circuit, loose connection and oxidation.
- Checking the power supply to the control module
If no fault was detected, replace the camera.
Other information
- Checking wiring and terminals Checking Wiring and Terminals
- Parking camera Removal and Replacement
- Signal specification Signal Specification, Parking Assistance Camera (PAC)
- For information about the cable routing, see the relevant Wiring Diagram.
Continue - Checking the function
-------------------------------------------------
Image is frozen
Either the camera or the parking assistance camera module (PAC) is not working. Replace the camera. If that does not help, replace the parking assistance camera module (PAC).
Other information
- Checking wiring and terminals Checking Wiring and Terminals
- Parking camera Removal and Replacement
- Parking camera module Parking Camera Module
- Signal specification Signal Specification, Parking Assistance Camera (PAC)
- For information about the cable routing, see the relevant Wiring Diagram.
Continue - Checking the function
-------------------------------------------------
Help lines drawn incorrectly
Check that the camera is set properly.
Use Activation of installation image in vehicle communication and set the camera correctly if possible.
If this does not help, replace the camera.
Other information
- Parking camera Removal and Replacement
- Signal specification Signal Specification, Parking Assistance Camera (PAC)
Continue - Checking the function
-------------------------------------------------
Screen does not come up even though reverse gear is engaged
Check that the installation instructions for the parking assistance camera system have been included for software installation.
Select Continue to access screen troubleshooting.
Continue - Checking the display screen
-------------------------------------------------
Checking the function
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off.
- Reinstall the connectors, components etc.
- Ignition on.
Check that the system for the parking assistance camera is working correctly.
Does the system for parking assistance camera work?
Yes - FAULT FOUND
No - ???
-------------------------------------------------
Checking the display screen
Checking the display screen
Fault-tracing information
Fault causes which will stop the display working:
- Open-circuit in the signal cable between the display and the multimedia module (MMM)
- No power supply to the display screen
- The display screen is not working
- Defective multimedia module (MMM)
- The MOST network is not working
- The relay for the infotainment system (positioned on the central electronic module (CEM)) is not powered.
Hint: The display screen will not deploy in the event of a fault in the MOST network. If the display screen is deployed and the data on the screen does not update or the screen suddenly retracts, the MOST network may not be working. Check that the MOST network is working.
Continue - Symptom information
------------------------
Symptom information
- Ignition on.
Activate the multimedia module (MMM) using the navigation buttons or the remote control so that the display screen deploys and folds away.
Does the screen deploy and fold away?
Yes - FAULT FOUND
No - Checking the cable
------------------------
Checking the cable
- Ignition off
- Disconnect the 5-pin connector from the display screen
- Ignition on.
Checking the cable
Check the display screen cable terminals. Check for oxidation and loose connections.
Check the cable terminals in the female and male sections of the connector. The cable terminals must not be damaged or pressed back
Check the voltage at the 5-pin connector for the screen. The voltage should be 12 V.
Take readings between:
- terminals #1 and #5
- terminals #2 and #4
- terminals #3 and #4.
If the voltage is not 12 V, check terminals #1, #2 and #3 in the 5-pin connector for the screen. Check for a short-circuit to ground. Check for an open-circuit.
If the voltage is not 12 V, check terminals #4 and #5 in the 5-pin connector for the screen. Check for a short-circuit to supply voltage. Check for an open-circuit.
Other information:
- To access or replace the multimedia module (MMM), see Multimedia module (MMM), replacing Multimedia Module (MMM), Replacing
- To access or replace the display screen, see Central loudspeaker, replacing Centre Loudspeaker
- For information about signals, see Signal specification Signal Specification, Multimedia Module (MMM)
- For further information about the fuses and relays, see the Wiring Diagram
- Checking wiring and terminals Checking Wiring and Terminals.
Was the fault found?
Yes - Verification
No - Checking the cable
------------------------
Checking the cable
- Ignition off
- Disconnect the 10-pin connector from the display screen and multimedia module (MMM).
Checking the cable
Check the cable terminals between the display screen and multimedia module (MMM). Check for loose connections and oxidation.
Check the cable terminals in the female and male sections of the connector. The cable terminals must not be damaged or pressed back.
Check the signal cable between display screen terminal #7 (10-pin connector) and multimedia module (MMM) terminal #B7 (#7). Check for a short-circuit to supply voltage. Check for an open-circuit.
Check the signal cable between display screen terminal #4 (10-pin connector) and multimedia module (MMM) terminal #B4 (#4). Check for a short-circuit to supply voltage. Check for a short-circuit to ground. Check for an open-circuit.
If no fault is found, replace the display screen.
Remedy as necessary.
Other information:
- To connect the breakout box, see
- To access or replace the multimedia module (MMM), see Multimedia module (MMM), replacing Multimedia Module (MMM), Replacing
- To access or replace the display screen, see Central loudspeaker, replacing Centre Loudspeaker
- For information about signals, see Signal specification Signal Specification, Multimedia Module (MMM)
- Checking wiring and terminals Checking Wiring and Terminals.
Continue - Verification
------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off
- Reinstall the connectors, components etc.
- Ignition on.
Check that the screen deploys when the ignition is switched on, when activated using the remote control or when using the steering wheel buttons for navigation.
Ensure that the image and the colors of the image are good.
Does the display function?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFIED - FAULT FOUND
VERIFICATION FAILED - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Attempt New Test - Fault-tracing information
-------------------------------------------------
FAULT-TRACING FAILED - Checking the function
VERIFICATION FAILED - Checking the function
FAULT FOUND - Checking the function
Attempt New Test - Checking the display screen
VERIFIED - Checking the function
-------------------------------------------------
Help lines not drawn, picture comes and goes, picture missing
Reload the software in the control module.
Continue - Checking the function
-------------------------------------------------
