Signal Specification, Bluetooth Phone Module (BPM)






Signal specification

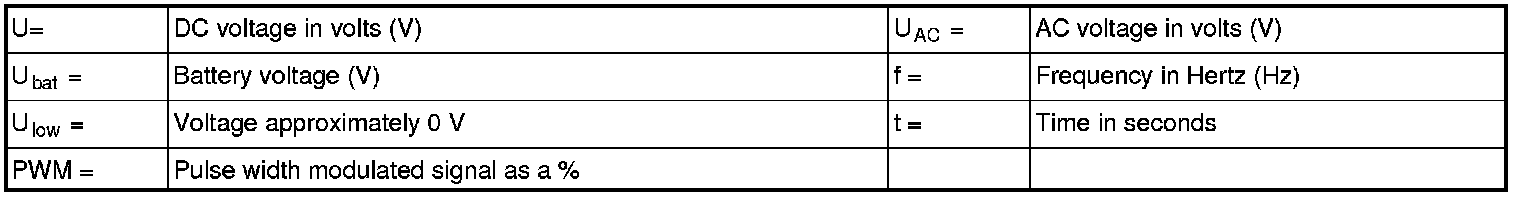

General

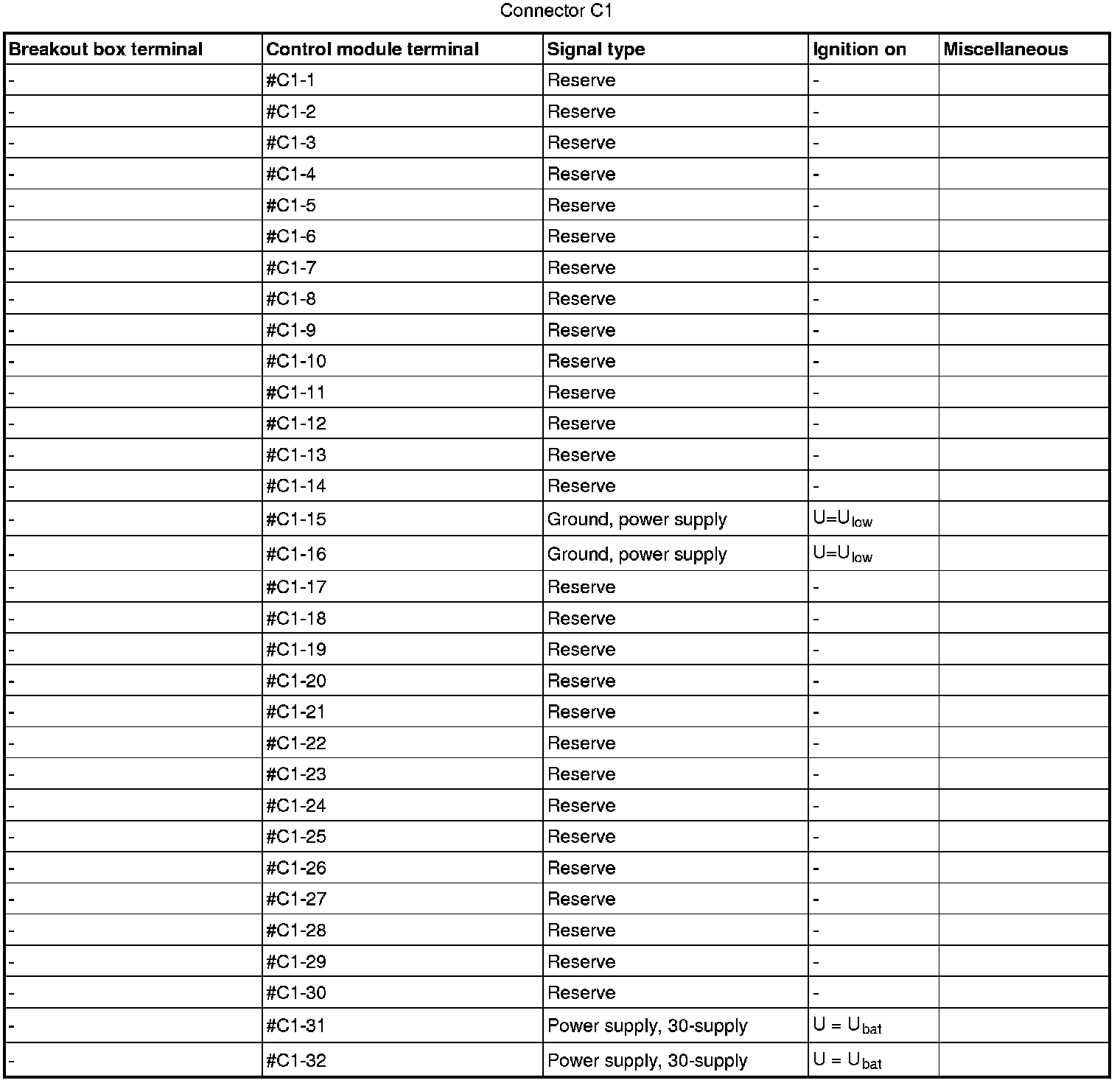

Connector C1

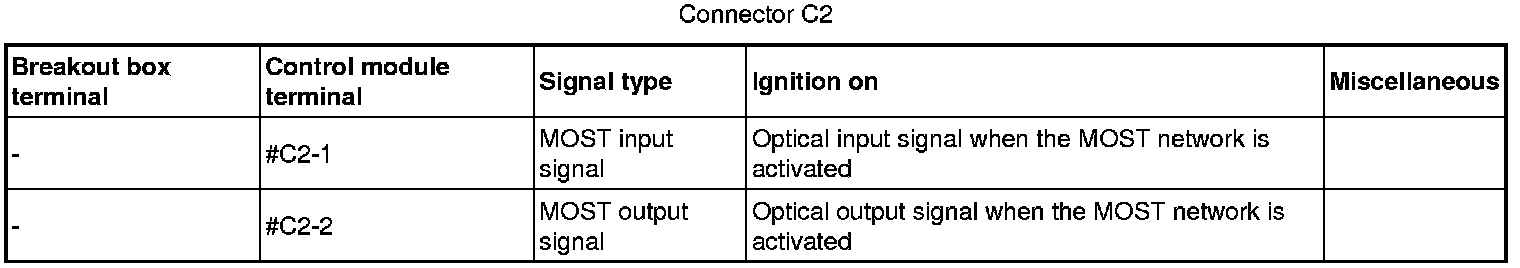

Connector C2
