Procedures

Niva sensor for alarm


















INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Tilt sensor for the alarm

Note! This accessory requires software unique to the car.





- Fold the rear centre floor hatch up.

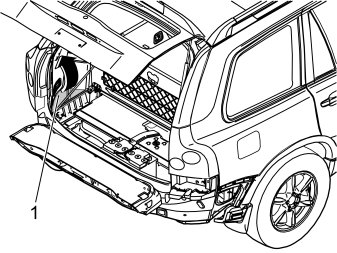

- Remove the left-hand side floor hatch (1).





- Remove the left-hand folding side panel.





- Disconnect the pre-routed green connector, taped on the cable harness under the fuse holder

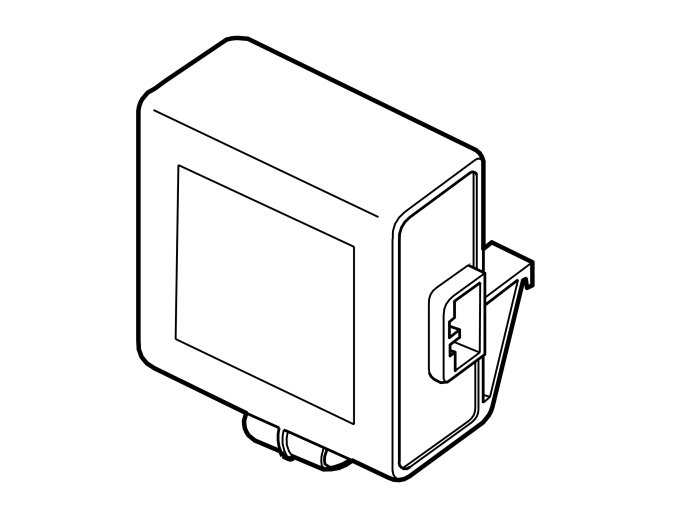

- Connect the connector to the tilt sensor
- Install the tilt sensor on the fuse holder bracket. First hook the tilt sensor in the uppermost hole on the bracket. Then secure in the lower hole
- Reinstall the side panel
- Reinstall the side floor hatch and fold down the floor hatch.

- Program the software.
