Keyless Entry - Can't Unlock Vehicle Using Remote

Title Not possible to lock/unlock the car with KIR

Ref No US23170.5.0 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 3662

Func Desc burglar alarm equipment

Status Released

Status Date 04-27-2012

Issue Date 04-27-2012

Reference

Attachment

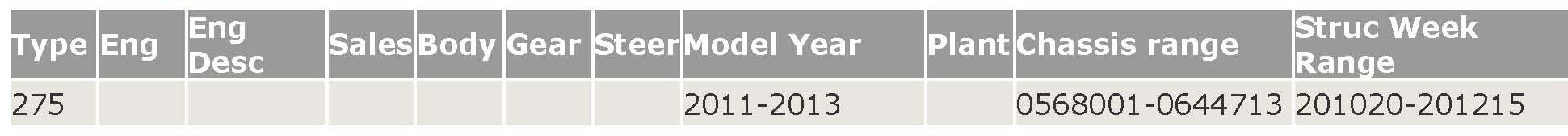

Vehicle Type

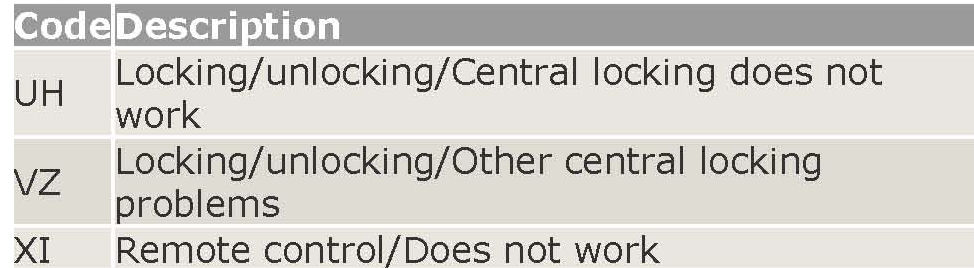

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

This document supercedes the previous one dated 2011-01-06. Changes to this document are:
TJ header updated with chassis end limits.

If using a printed copy of this journal, always check for the latest online version.

DESCRIPTION:
The customer may experience difficulties with locking or unlocking the vehicle with the KIR (Key Integrated Remote). A previous disturbance in the supplier process may cause the battery connections inside the KIR to
loose contact with the battery.

PRODUCT MODIFICATION:
New remotes have been introduced into production from structure week 201215.

SERVICE:
Replace the faulty remote.

VOLVO STANDARD TIME GUIDE OPERATION NUMBER:
36635-2 Remote control ignition key replace. Incl software download. SEE vstg
