Rear Door Window Glass: Service and Repair

Operation number: 84420-2

Window, rear door

Note! Some variation in the illustrations may occur, but the essential information is always correct.

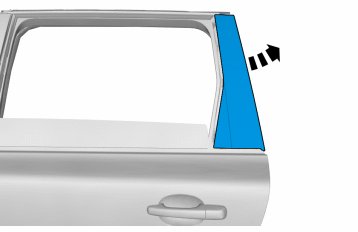

Removal

Note! Removal steps in this procedure may contain installation details.







Remove the panel. Refer to: Panel rear door Service and Repair

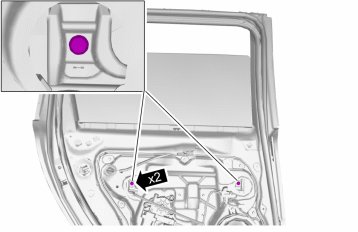

Note! Do not loosen the bolts more than two turns.

Torque: Window to power window mechanism (rear side door), 8 Nm






Installation

To install, reverse the removal procedure.
