Part 1

Parking assistance, front



























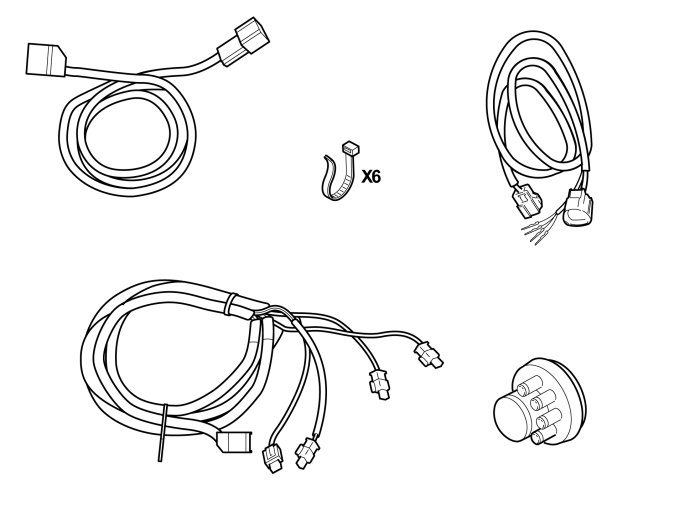

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Parking assistance, front

Note! These installation instructions apply to left-hand drive vehicles. When installing in a right-hand drive vehicle, the procedure is carried out on the opposite side and/or mirrored. Where the operations differ, right-hand versions are also displayed with text and images.

Preparations

Passenger compartment




- Turn the ignition switch to position 0.

Note! Wait at least one minute before unplugging the connectors or removing other electrical equipment.





- Remove the end panel.





- Remove the middle sill trim panel by first prizing it off at the front edge and pulling it up until the three clips release. Following which, pull it away forwards.





- Pull off the sill molding at the front sill trim panel.





- Remove the front sill trim panel by first pulling it up at the rear edge until the clip there releases. Pull it backwards further until the clip in the middle releases. Following which, pull it diagonally downwards until it releases from the A-pillar panel.





- Remove the screws and sound proofing bracket.
- Unplug the connector for the lighting.





- Remove the two screws.





- Remove the seven screws.
- Pull the glovebox out slightly and unplug the gray connector on the rear side.
- Remove the glovebox.





- Move the carpeting aside. Make a cut in the thick insulating mat starting level with the blue connector of the central electronic module (CEM) and then continue straight down.
- Move aside the insulating mat to access the grommet.





- Remove the rear seat cushion by releasing the catches at the front edge (1) and then pulling forwards (2).
- Disconnect any connectors.





- Fold the backrest forward.





- Remove the rear sill trim panel by pulling it up at the front edge (1) and then unhooking it from the clip (2).
- Push the side cushion at the lower edge to one side and pull the panel so that the hook (3) releases.





- Fold the carpeting to one side from the lower edge on the B pillar panel.

Cargo compartment




- Fold up the floor hatch.

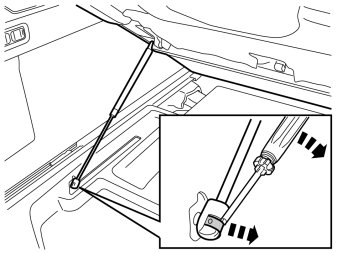

- Detach the clip on the gas damper using a small screwdriver. Unhook the damper.

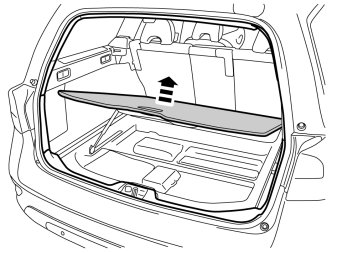

- Lift out the floor hatch.

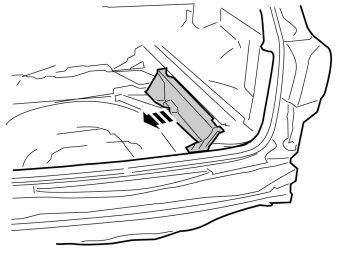

- Lift out the storage box.






Applies to right-hand drive cars

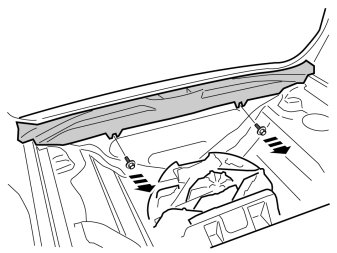

- Remove the two screws on the tailgate sill trim panel.






Applies to right-hand drive cars

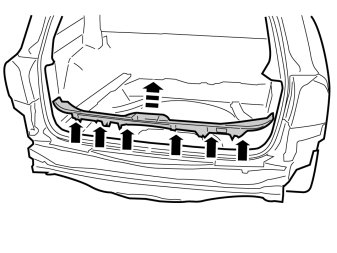

- Carefully pull off the panel, it is secured by six clips.





- Remove the panel.
- Applies to right-hand drive cars: Remove the panels on both sides.

Exterior




- Open the hood. Remove the lock facings for the headlamp on the passenger side.





- Disconnect the connector and remove the headlamp.

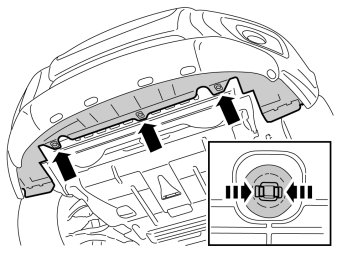

- Raise the car. Remove the clip by squeezing together the catches and then pulling them out.

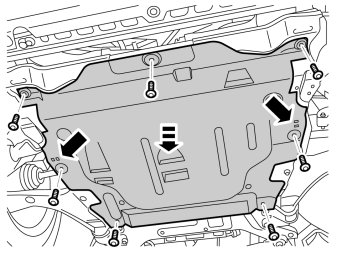

- Remove the seven screws.
- Remove the engine splash guard, at the same time undo the two hooks.





- Remove the existing rubber grommets on the cowl panel.

Note! On certain models the rubber grommet may be covered by the heat deflector shield.






Steps 26-29 are carried out on both sides.

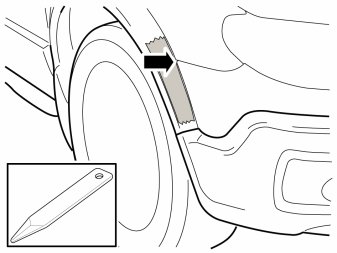

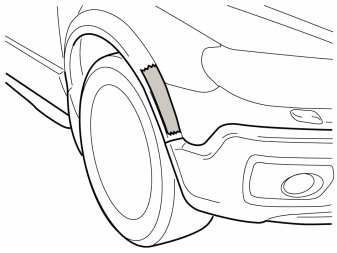

- Apply tape to the front edge of the wing extender to protect it.





- Turn the wheel inwards. Remove the five screws and the wing liner.





- Using a weatherstrip, pry between the wing extender and the corner of the bumper cover.

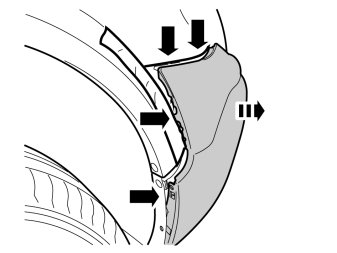

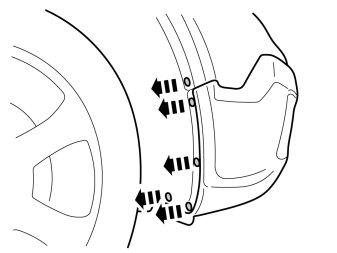

- Pull the end of the bumper cover straight off until the hooks release.






Steps 30-33 apply to cars with headlamp washing

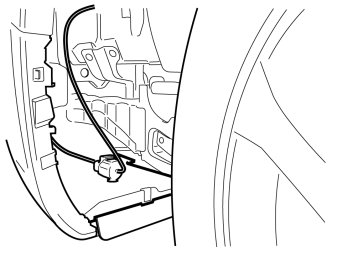

- Push the wing liner to one side on the left to access the connector on the deflector.

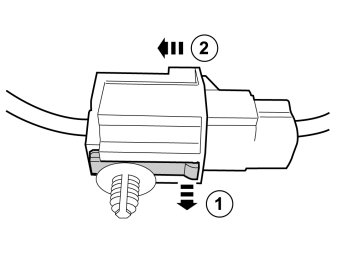

- Release the catch (1) and pull the connector (2) backwards.





- Place a container under the car.
- Release the catch (1) on the connection for the washer pump.
- Pull the connection (2) straight out.
- Allow the washer fluid to run into the container. Alternatively, plug the connection on the pump using a suitable rubber plug.

Hint: Use a drainage hose.





- Disconnect the connector on the pump by pressing the catch (1) down and pulling upwards.

Bumper cover

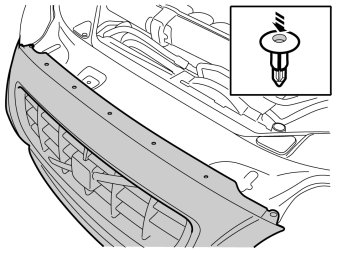

- Push in the middle of the seven clips. Remove the clips.
