Antenna, Locking System, Keyless Entry, Rear






Operation number: 36646-2

Antenna, locking system, keyless entry, rear

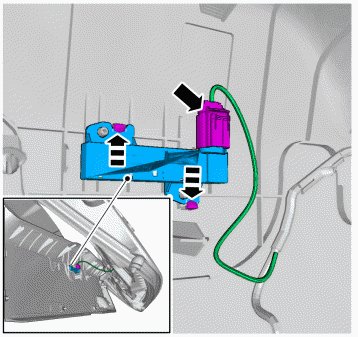

Removal

Remove the liftgate trim panel Refer to: Tailgate/trunk lid panel Service and Repair





Installation

To install, reverse the removal procedure.
