Headliner: Service and Repair

Headlining











Removal

Note! Removal steps in this procedure may contain installation details.





Remove glove compartment Refer to: Glove compartment Glove Compartment





























Remove the B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel





Vehicles with roof opening panel





All vehicles




On both sides.




On both sides.




On both sides.




On both sides.




On both sides.




On both sides.




On both sides.












Torque: Panel roof sill to body, 5 Nm








On both sides.









Note! Use suitable paper to absorb any escaping fluid.





Note! Use suitable paper to absorb any escaping fluid.








Torque: M6, 10 Nm

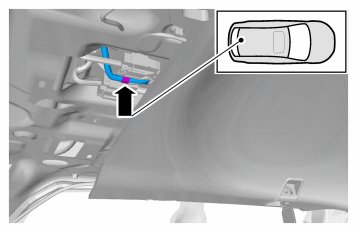

Vehicles with Headliner Cellular Phone Microphone





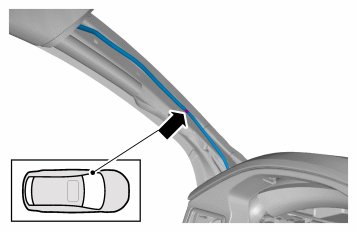

All vehicles




Torque: M6, 10 Nm

On both sides.




Torque: M10, 50 Nm

On both sides.




On both sides.




Torque: M8, 24 Nm

On both sides.












On both sides.





Caution! Take extra care not to crease the headliner.

Note! This step requires the aid of another technician.





Use: Anti-squeak tape, 30788314

Installation

Vehicles with Headliner Cellular Phone Microphone

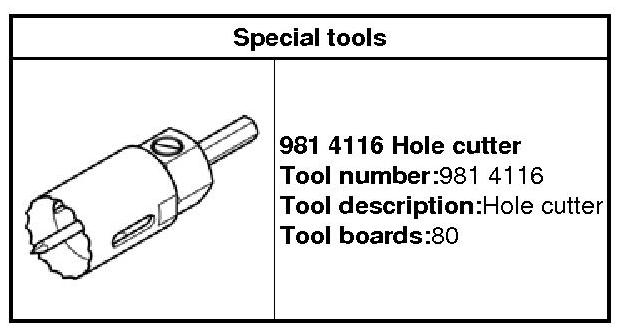

981 4116 Hole saw 981 4116 Hole Saw

















All vehicles

To install, reverse the removal procedure.
