Emblem Front Fender






Operation number: 84145-2

Emblem front fender

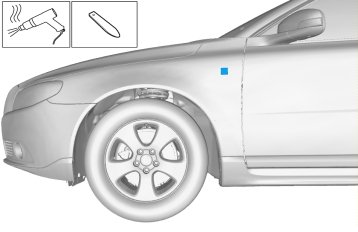

Removal

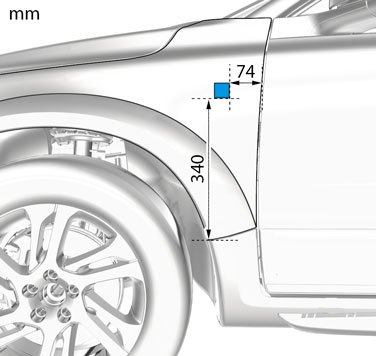

Installation

Note! Make sure that a new component is installed.

Follow the instructions regarding components with double-sided adhesive tape Refer to: Components with double-sided tape Removal and Replacement
