System Overview

System overview

Control module




The task of the Power Operated Tailgate Module (POT) is to control the automatic operation of the boot lid. The control module monitors the movement, both when closing and opening, and can cancel it of anything affects the movement. The control module also monitors whether it is possible to open/close the boot lid.
The Power Operated Tailgate Module (POT) is located above the left rear wheel, inside the luggage compartment panel.
Power Operated Tailgate Module (POT) communicates via the CAN-net to the Central electronic module (CEM) and Keyless Vehicle Module (KVM).
The control module checks activations and input and output signals via an integrated diagnostic system.
A diagnostic trouble code (DTC) is stored if the control module detects an error. In certain cases the control module replaces the faulty signal with a substitute value.
Any diagnostic trouble codes (DTCs) are stored in the control module memory. This information can be read off using the diagnostic tool via the data link connector (DLC) in the vehicle.
For further information, also see Signal specifications.

Components

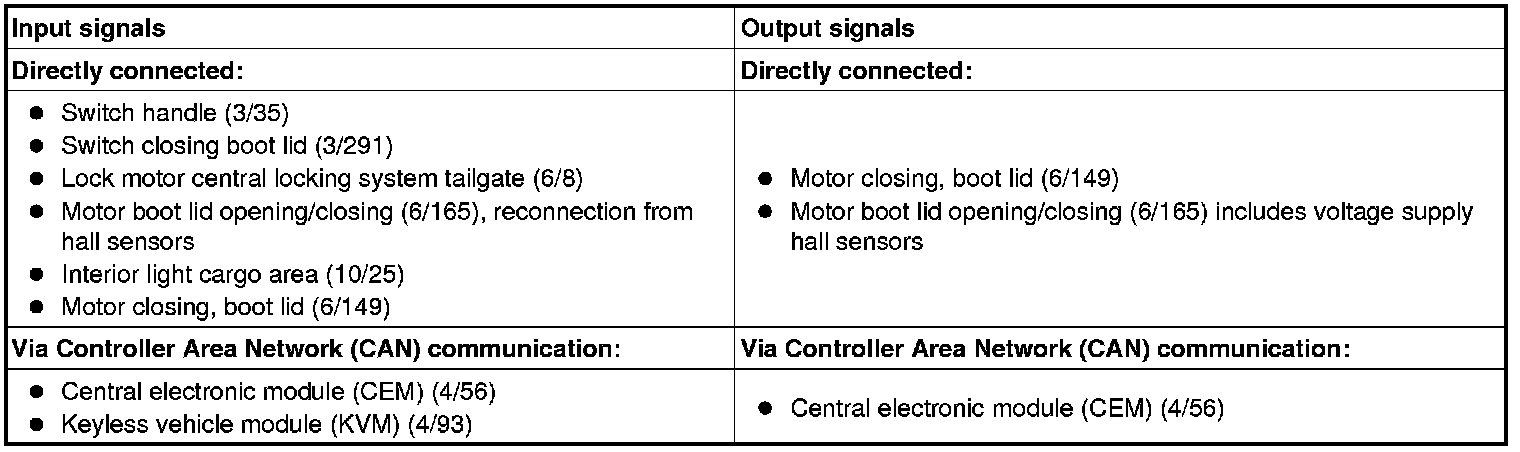

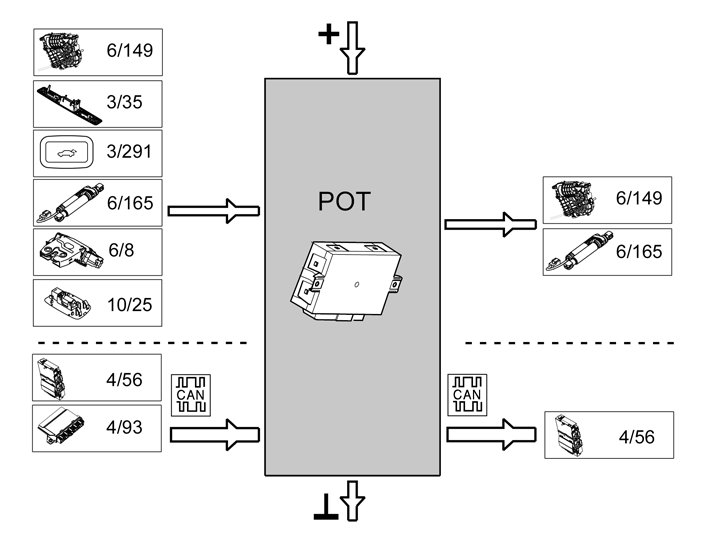

The table below summarizes components connected to the Power Operated Tailgate Module (POT). The illustration below displays the same information with the Volvo component designations.
