Antenna Amplifier: Service and Repair

Operation number: 39580-239581-2

Antenna amplifier, radio

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the D-pillar trim panel Refer to: Panel, D-pillar Panel, D-Post, Replacing

On both sides.

Torque: M8, 24 Nm

On both sides.

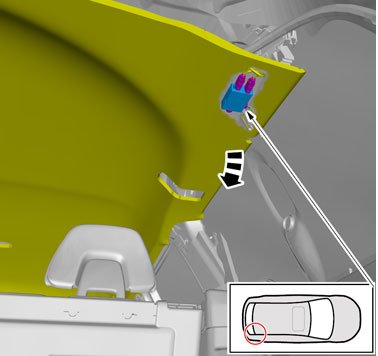

Caution! Take extra care not to crease the headliner.

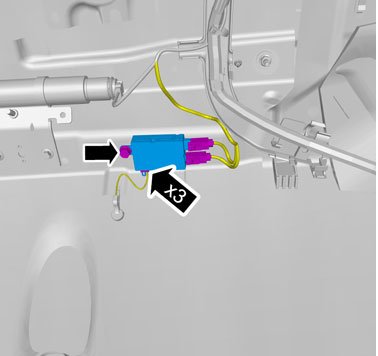

Torque: M6, 10 Nm

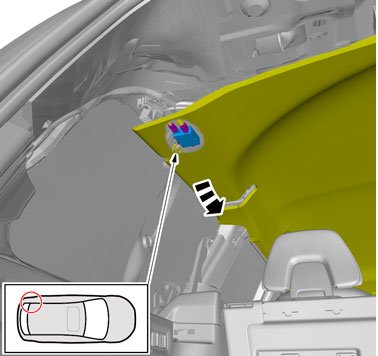

Caution! Take extra care not to crease the headliner.

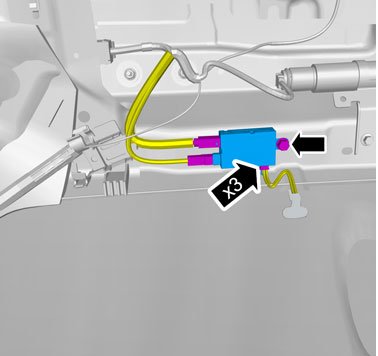

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
