Control Unit: Service and Repair

Operation number: 46030-2

Active On-Demand Coupling Module






Removal

Note! Removal steps in this procedure may contain installation details.

Drain accumulator according to: Accumulator draining

















Warning! Be prepared to collect escaping fluid.

Torque: M5, 5 Nm









Caution! Only use the specified material to lubricate the seals.

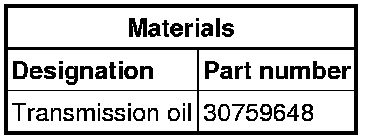

Use: Transmission oil, 30759648





Installation

To install, reverse the removal procedure.

Order and download appropriate software Programming and Relearning

Fill with oil Refer to: Active On Demand Coupling Fluid Level Check, TF-80SC AWD Active on Demand Coupling Fluid Level Check
