Drive Shaft Right

Drive shaft right






Removal

Note! Removal steps in this procedure may contain installation details.

Warning! Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.

Note! Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.

Remove the following items:
- the wheel Refer to: Wheels Service and Repair
- Engine Rear Lower Support Insulator RH Refer to: Engine Rear Lower Support Insulator RH, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Engine Rear Lower Support Insulator RH




Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree

Loosen wheel spindle Refer to: Front control arm, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Front Control Arm

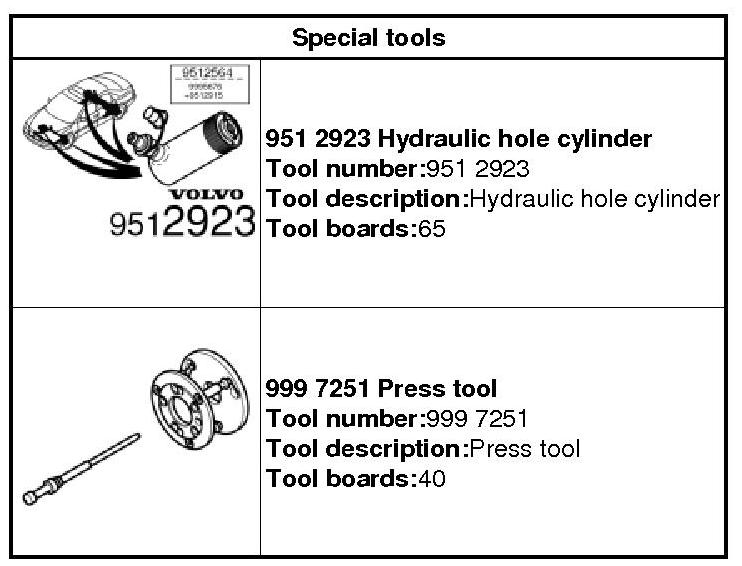

951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder 999 7251 Press tool 999 7251 Press Tool





Note! Note the position of the component before removal.

Torque: M8, 24 Nm





Caution! Make sure that the inner constant velocity (CV) joint does not separate.

Installation





Caution! Make sure that the surface is clean and free of foreign material.





Caution! Make sure that the surface is clean and free of foreign material.

To install, reverse the removal procedure.
