Transmission Cooler: Service and Repair

Operation number: 49104-2

Oil cooler transmission






Removal

Remove the air filter housing Refer to: Air cleaner housing, Service and Repair

Perform cooling system draining, charging and bleeding Refer to: Cooling system - draining, charging and bleeding, B6324S5, B6304T4, B6324S4 Service and Repair

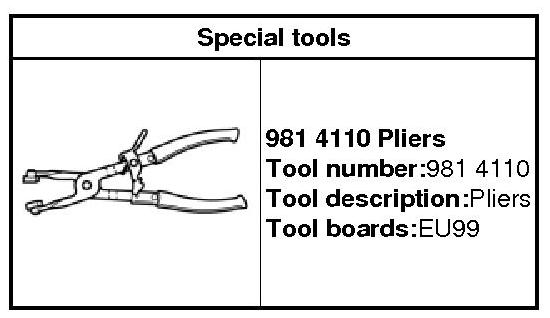

981 4110 Hose tongs 981 4110 Hose Tongs









Warning! Be prepared to collect escaping fluid.

Caution! Make sure the open end of the hose is secured above the fluid level in the reservoir.





Installation

To install, reverse the removal procedure.

Carry out: gearbox oil level - check Refer to: Transmission oil level - checking, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Checking Oil Level
