Sealing Ring, Bevel Gear, Left

Operation number: 43335-2

Sealing ring, bevel gear, left

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the bevel gear. Refer to: Bevel gear, Bevel Gear






Note! Be prepared to collect escaping fluids.

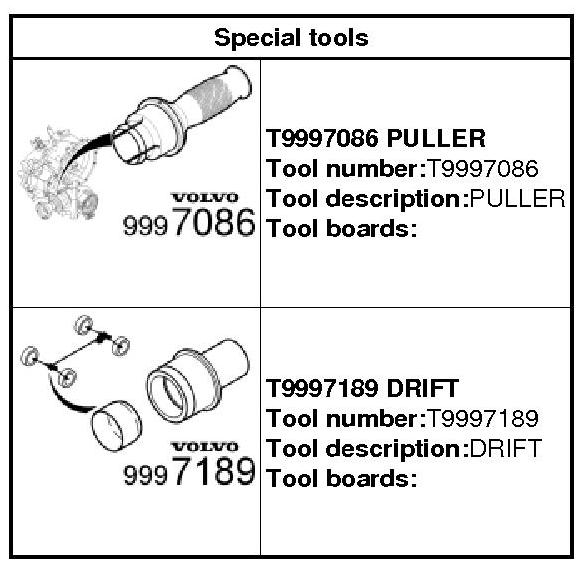

999 7086 Puller 999 7086 Puller

Installation





999 7189 Drift 999 7189 Drift

To install, reverse the removal procedure





Check the oil level in the bevel gear.
Use oil. Refer to: Lubricant transmission [1][2]Fluid - A/T
Fill up oil to the oil filler plug. Suck out 0.1 l oil.
Torque: Oil filler plug, bevel gear, 35 Nm
