A/C - Temperature Drops During Driving
TIE Technical JournalTitle Temperature dropping during driving, climate heater unit
Ref No US18674.8.1 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 8730
Func Desc climate unit
Status Released
Status Date 2011-01-21
Issue Date 2011-01-21
Reference VIDA
Attachment
Vehicle Type
CSC
DTC
Text

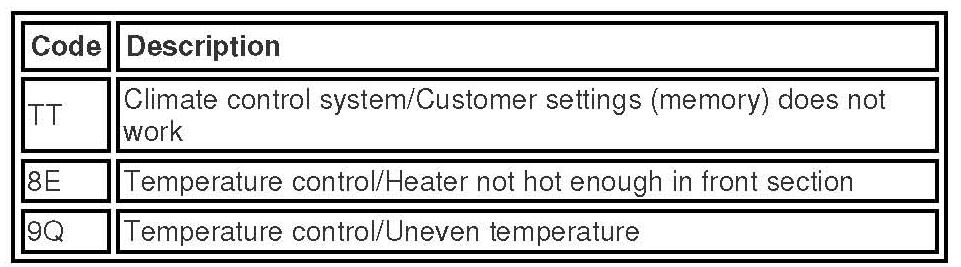

CSC=Customer Symptom Code
DTC=Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
Customer may experience that the temperature inside the car starts to drop after approximate 20-40 mm of driving with the climate control in auto position.
SERVICE:
*Perform CCM (Climate Control Module)upgrade according to VIDA.
*GO into VIDA CCM advanced:Action for falling temperature and cold draft change settings from Factory mode to Level 2.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number *36004-2* Software control module downloading.
See current VSTG for times.
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
