Steering/Suspension - Front End Squeaking Noises
Title Front anti-roll (sway) bar bushings, Squeaking noiseRef No US23109.2.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 7621 Func Desc anti-roll bar, front
Status Released
Status Date 2010-12-20
Issue Date 2010-12-02
Reference VIDA, VSTG, 14507, 17644
Attachment

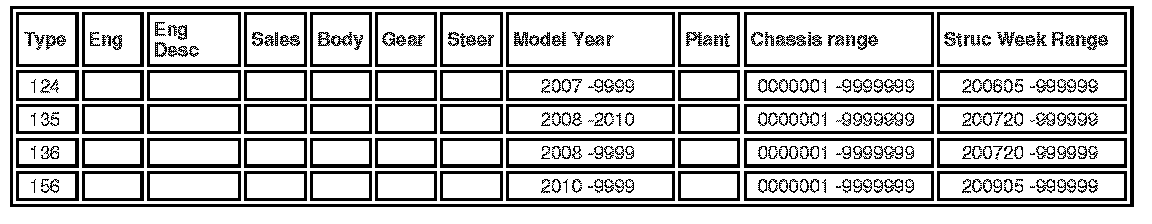

Vehicle Type
CSC
DTC
Text

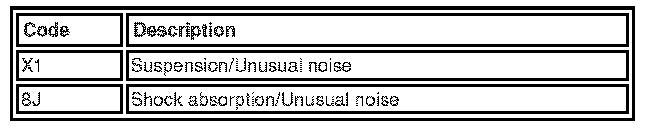

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
A squeaking noise may be heard from the front anti-roll (sway) bar bushings, especially when driving over speed bumps.
SERVICE
Use Chassis Ears toolkit (or other equivalent fault tracing) to fault trace the squeaking noise.
NOTE! Other RTJs reguarding squeaking noise: 14507, 17644.

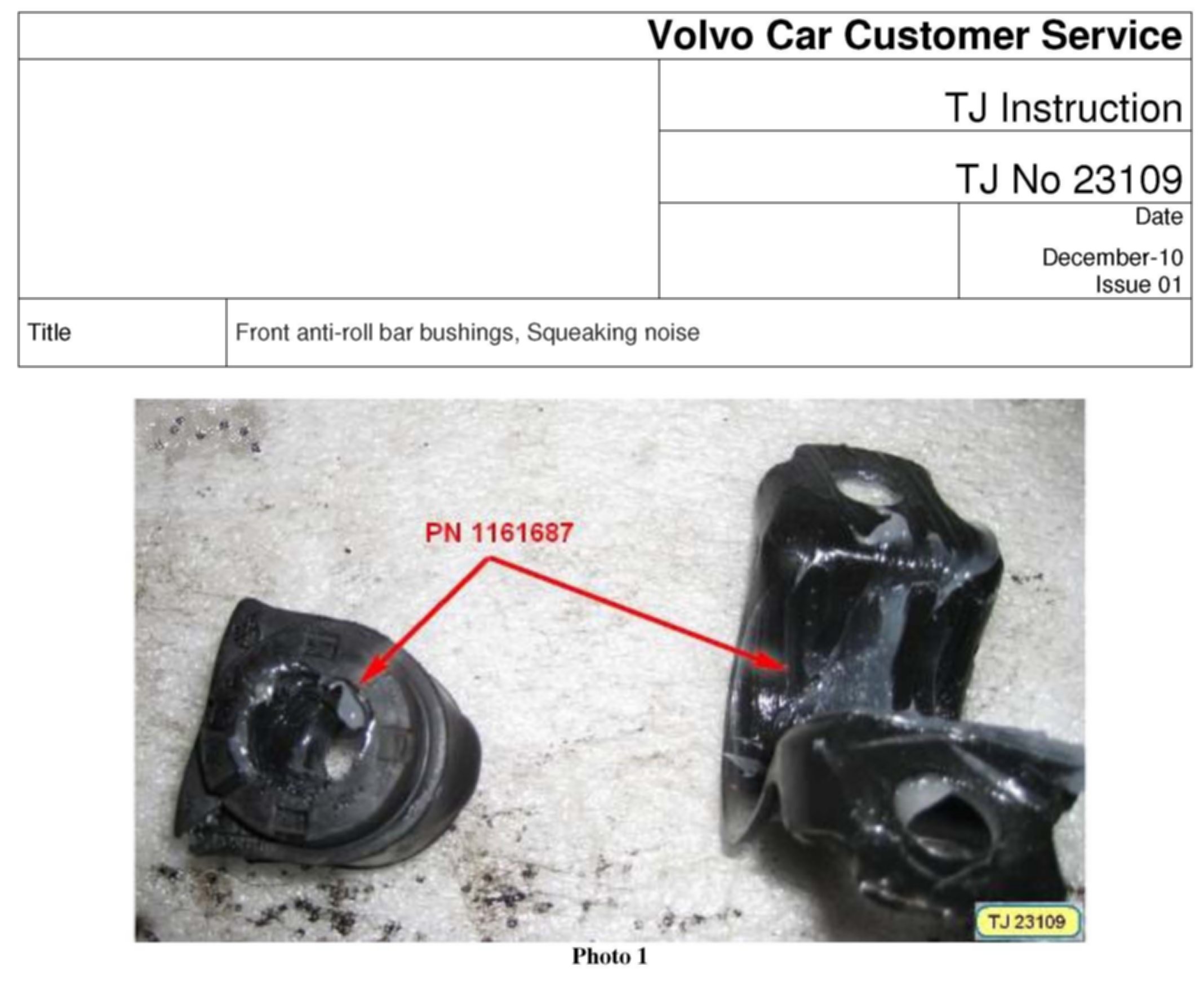

If the squeaking noise is coming from the anti-roll bar bushings, then remove the anti-roll bar according to VIDA and lubricate the bushing and clamp with silicone grease (PN 1161687) according to photo 1 in the attachment.

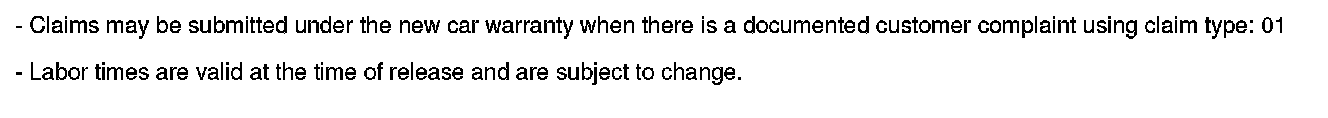

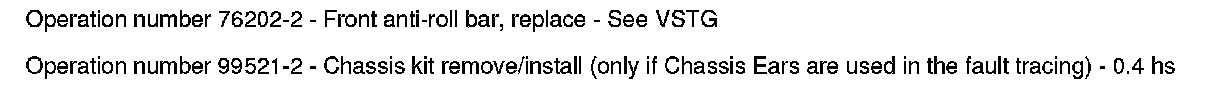

VOLVO STANDARD TIMES GUIDE (VSTG) INFO

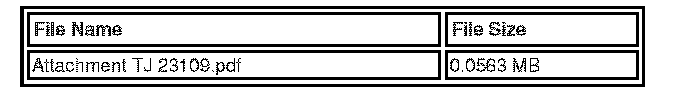

Attachment
RTJ - Instructions
