Steering - Updated Steering Gear Replacement Procedure
TIE Technical JournalTitle Updated procedure, steering gear (rack) replacement
Ref No US23271.1.2 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 6420
Func Desc steering gear
Status Released
Issue Date 2010-09-21
Reference VIDA, VSTG

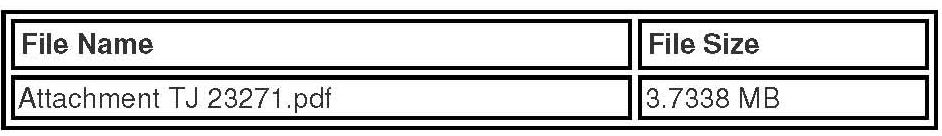

Attachment
Vehicle Type
CSC
DTC
Text

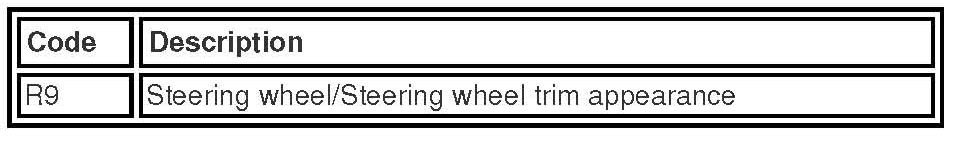

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL JOURNAL 23271 DATED 08-24-2010. The introduction into VIDA has been postponed to VIDA version 2010D. PLEASE UPDATE YOUR FILES.
DESCRIPTION:
The information in VIDA regarding replacement of steering gear will be updated.
PRODUCT MODIFICATION:
The service procedure will be included in the VIDA 2010D:
INFORMATION
REPAIR
Removal replacement and installation
6 Suspension and steering
64 Steering
642 steering gear
SERVICE:

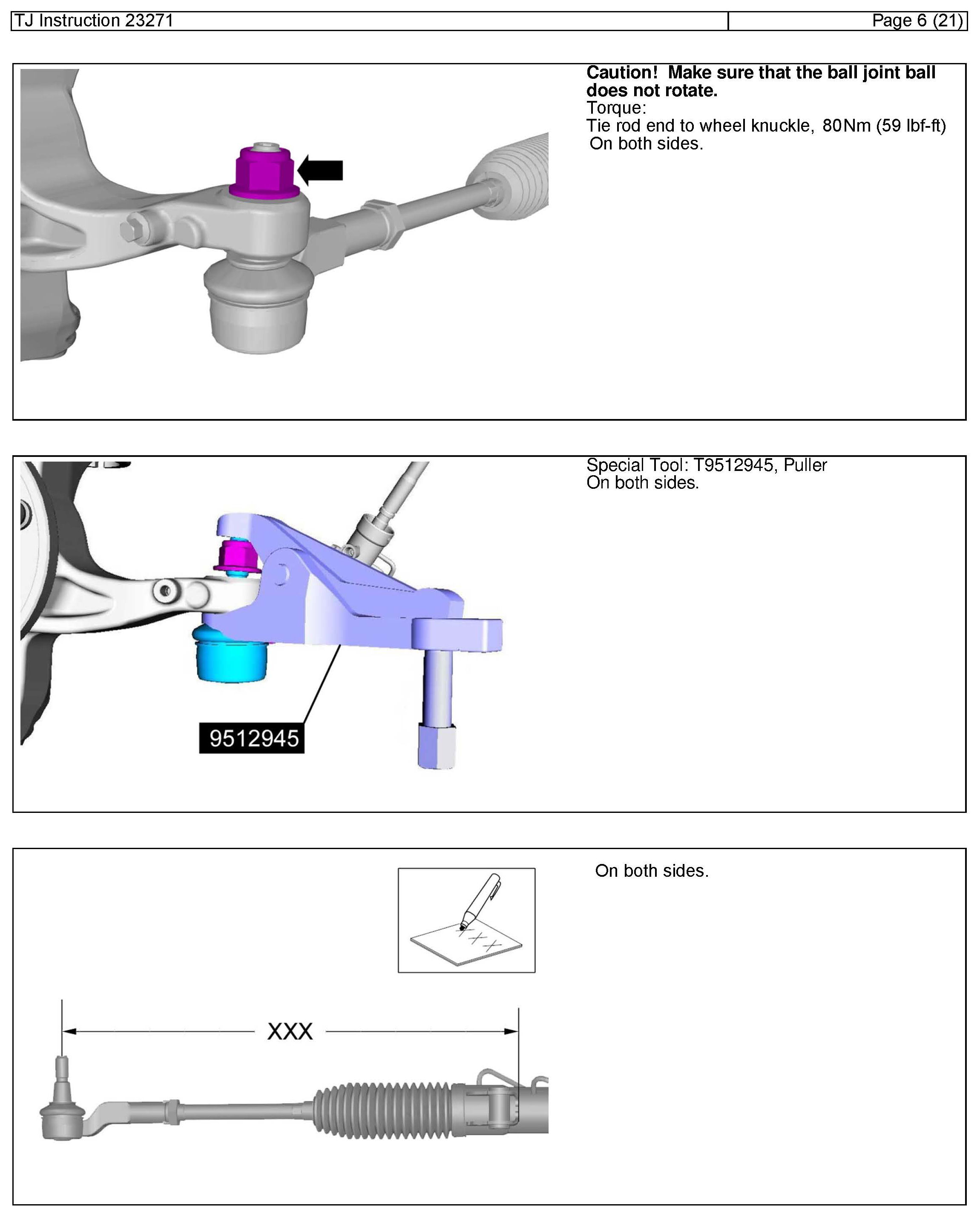

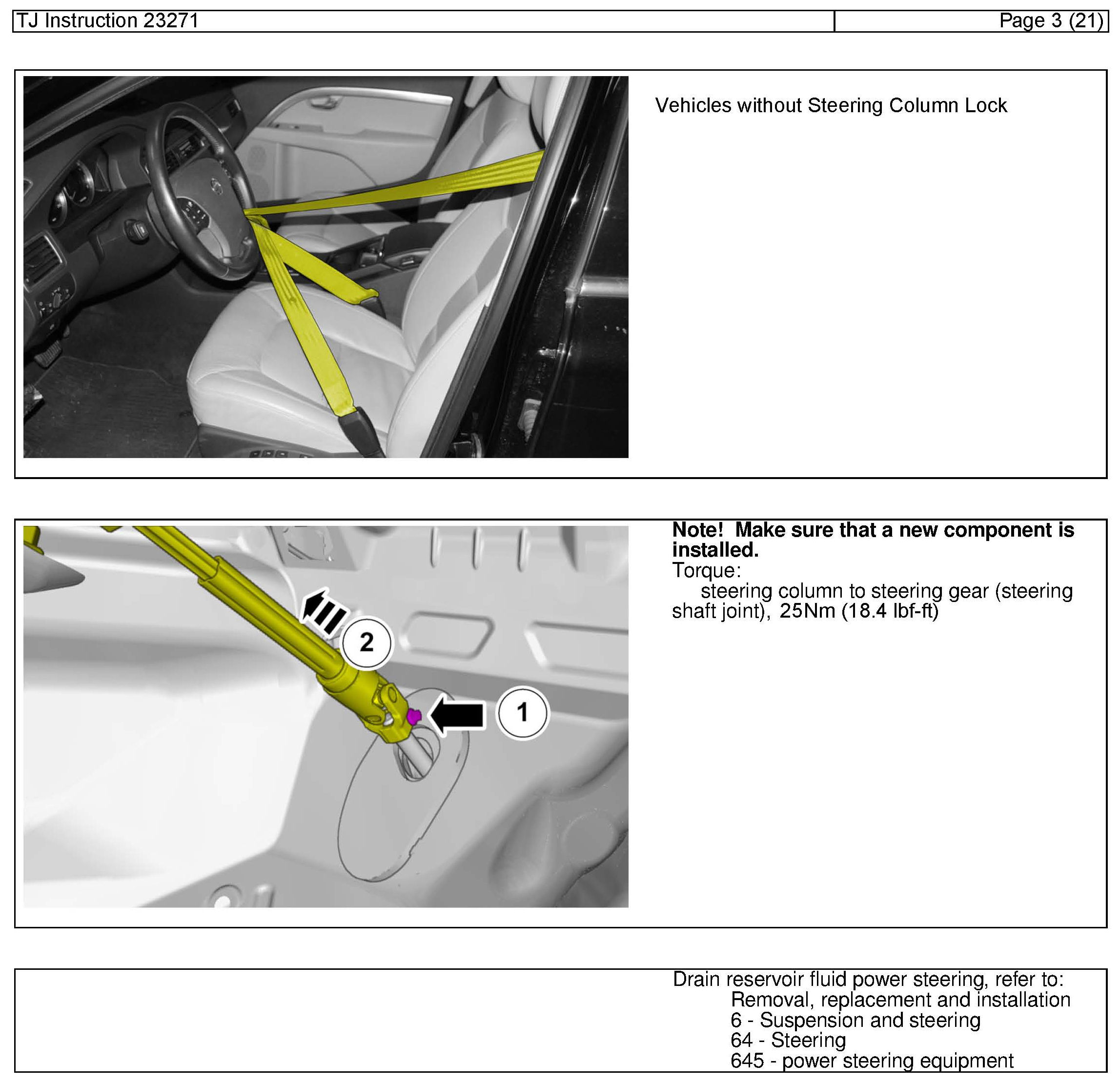

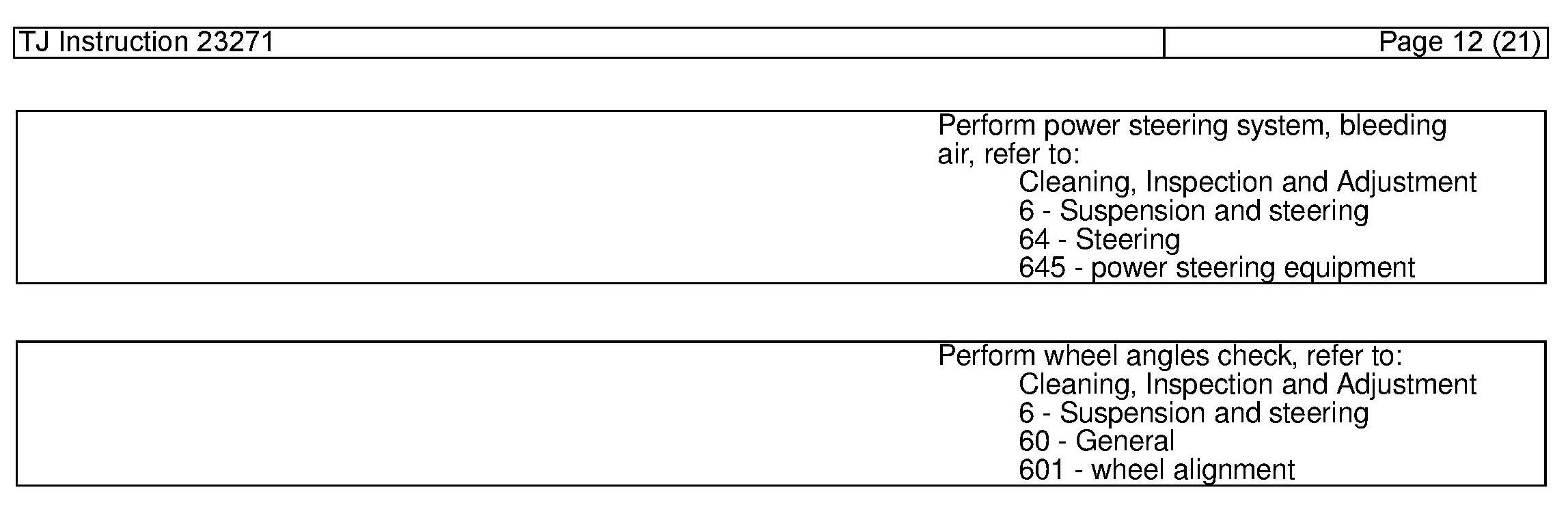

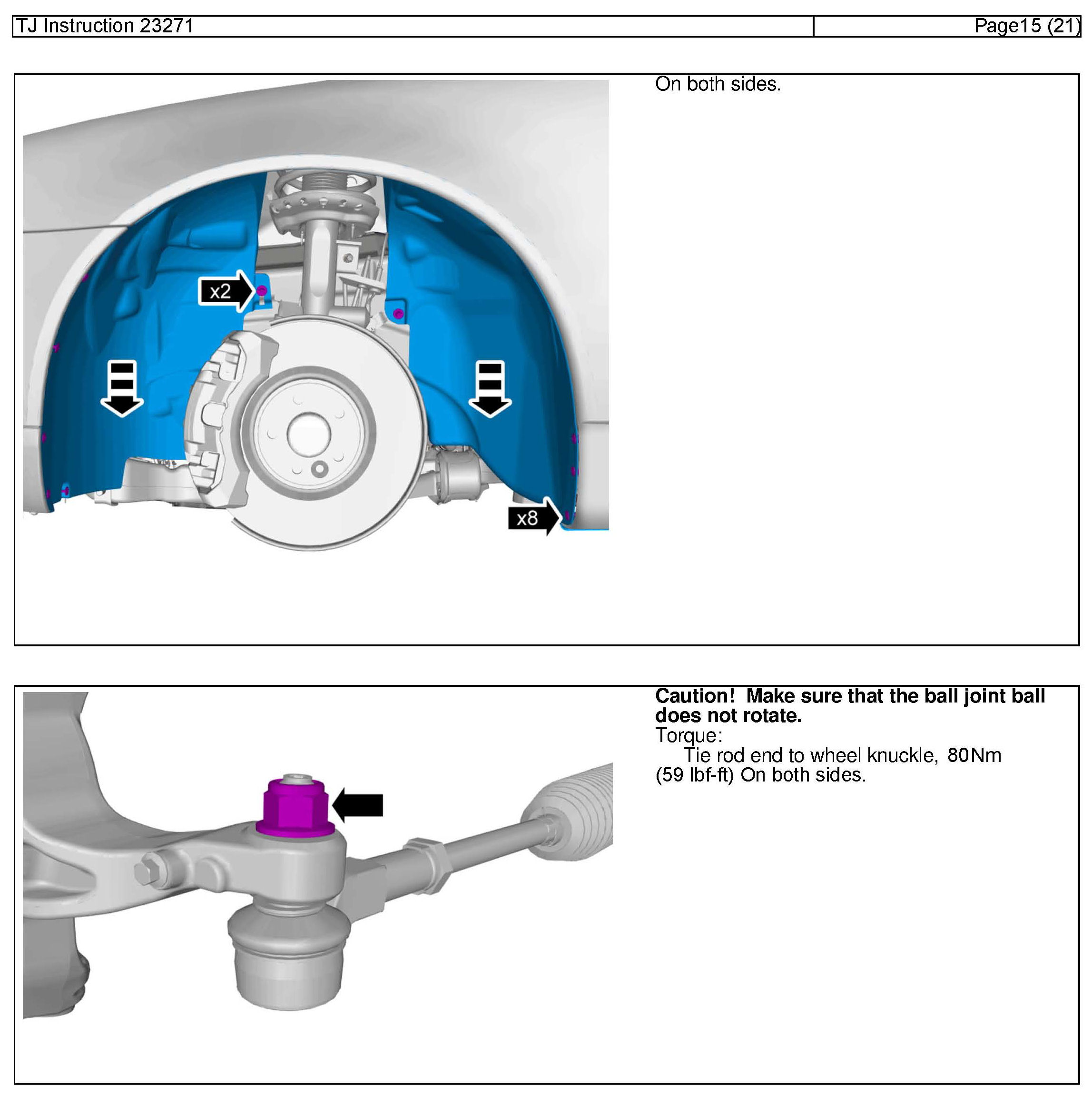

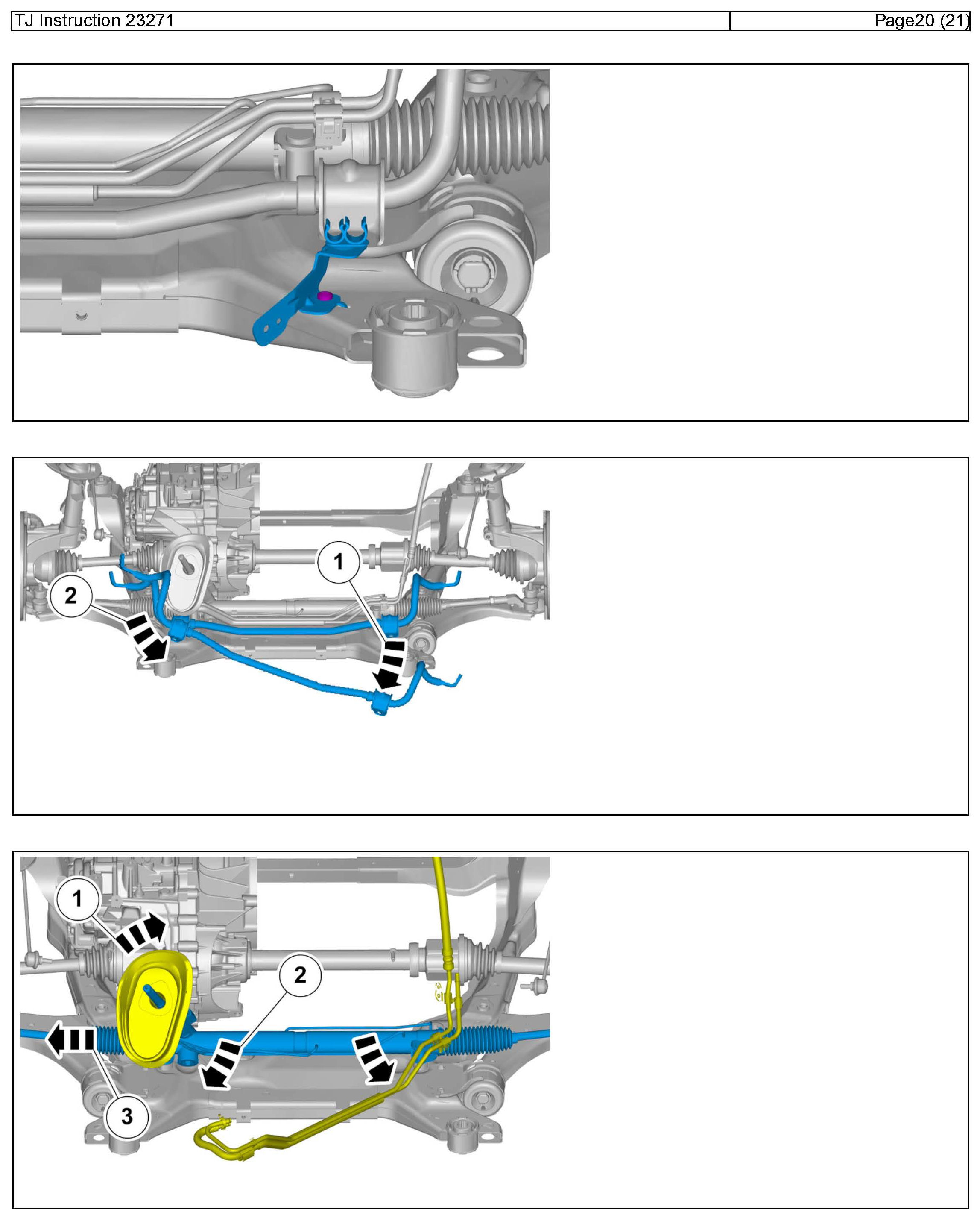

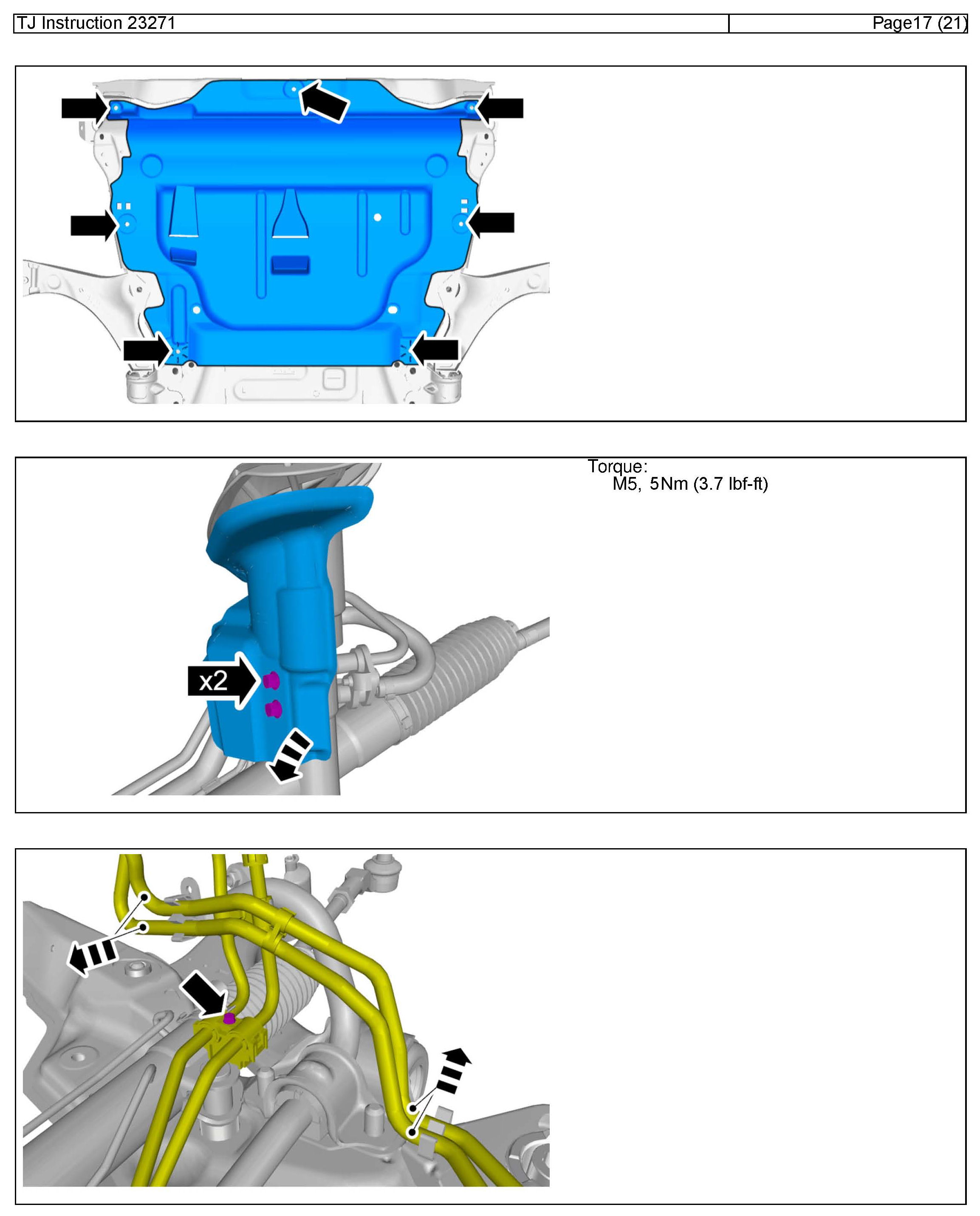

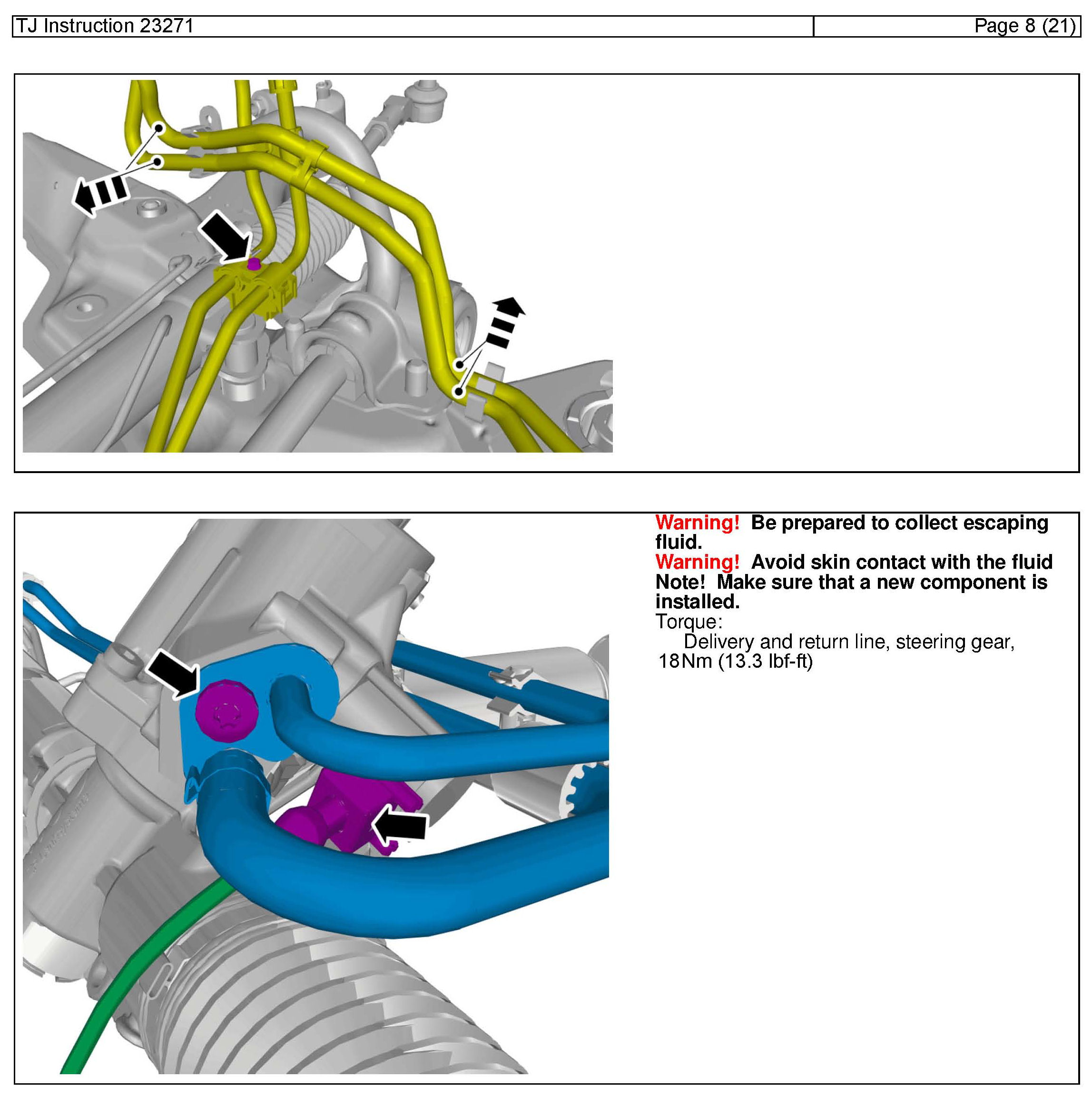

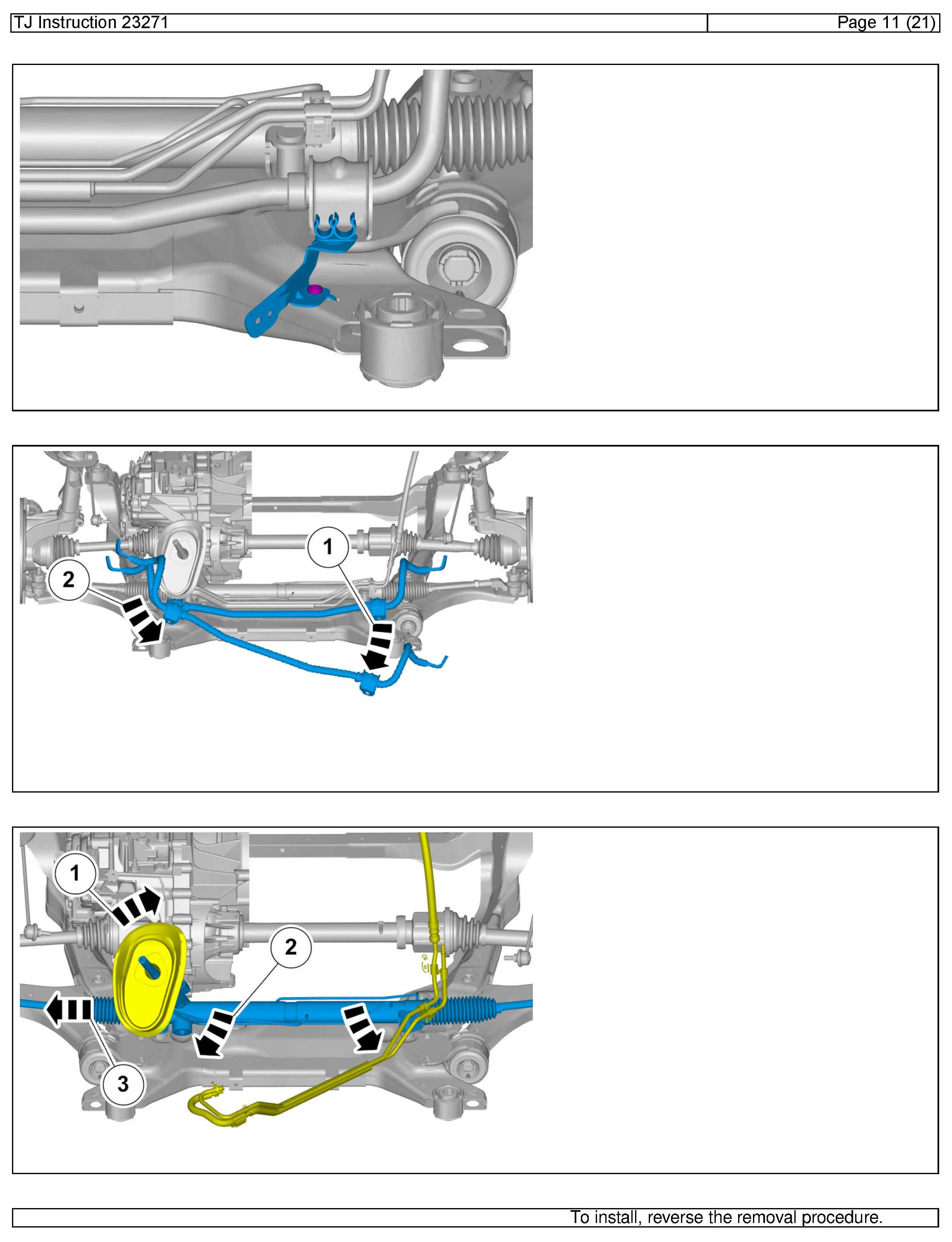

Follow the attachment for steering gear removal and replacement until VIDA 201 OD is released.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number 98251-2 Steering gear replace acc. to TJ23271:
S80 V8: 3.4 hrs
S80 (non V8)/V70/XC70/XC60: 2.5 hrs
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.

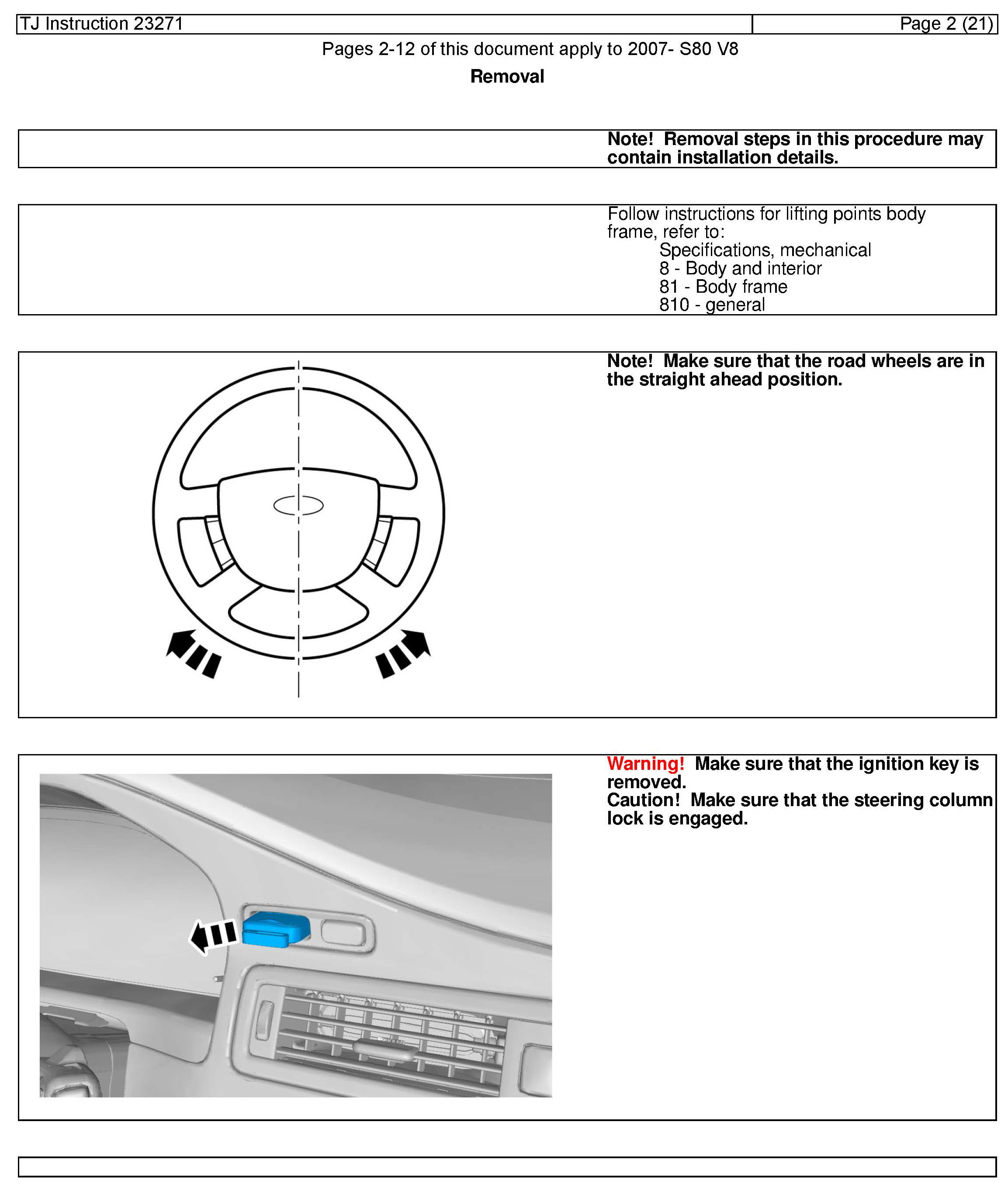

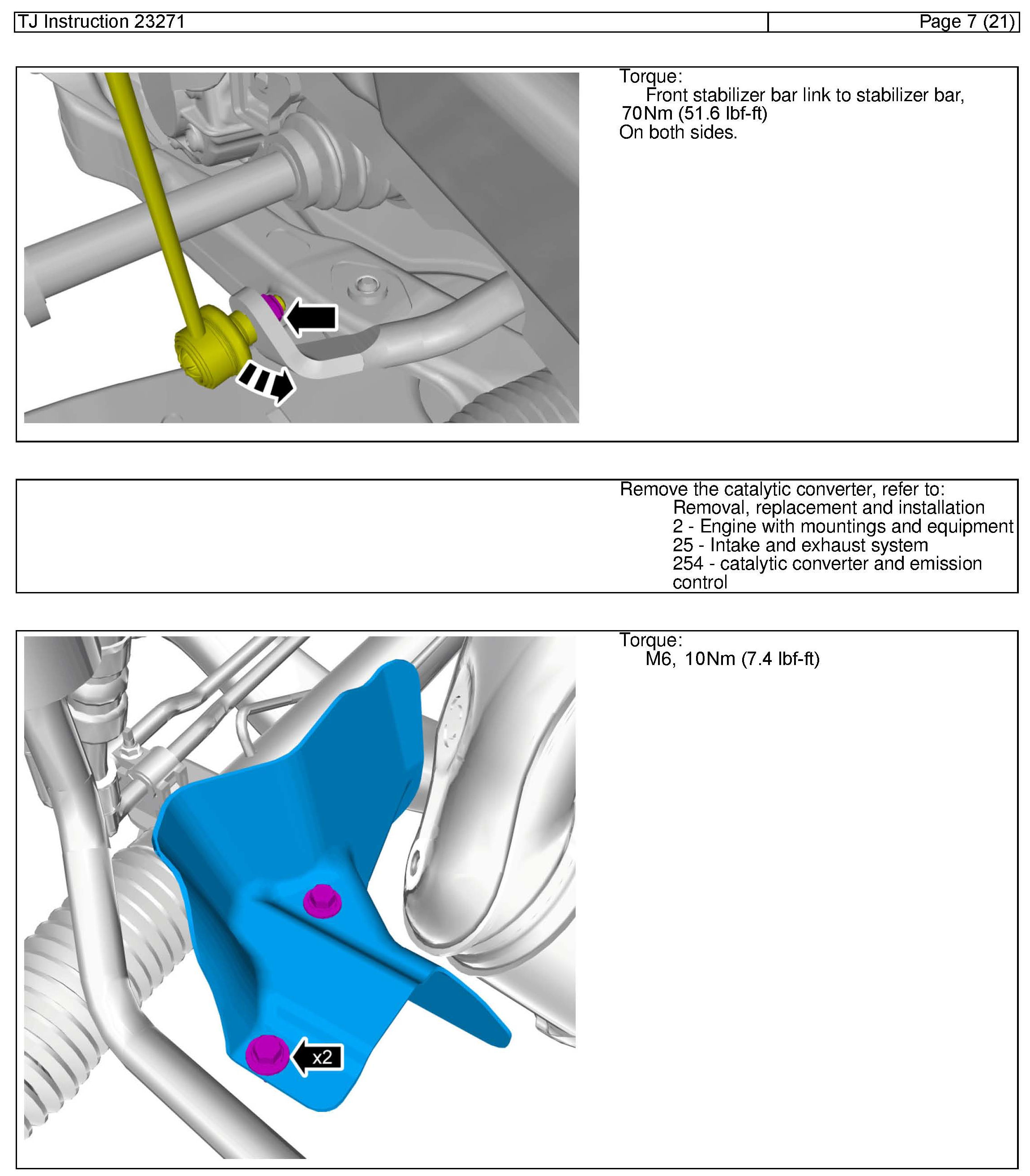

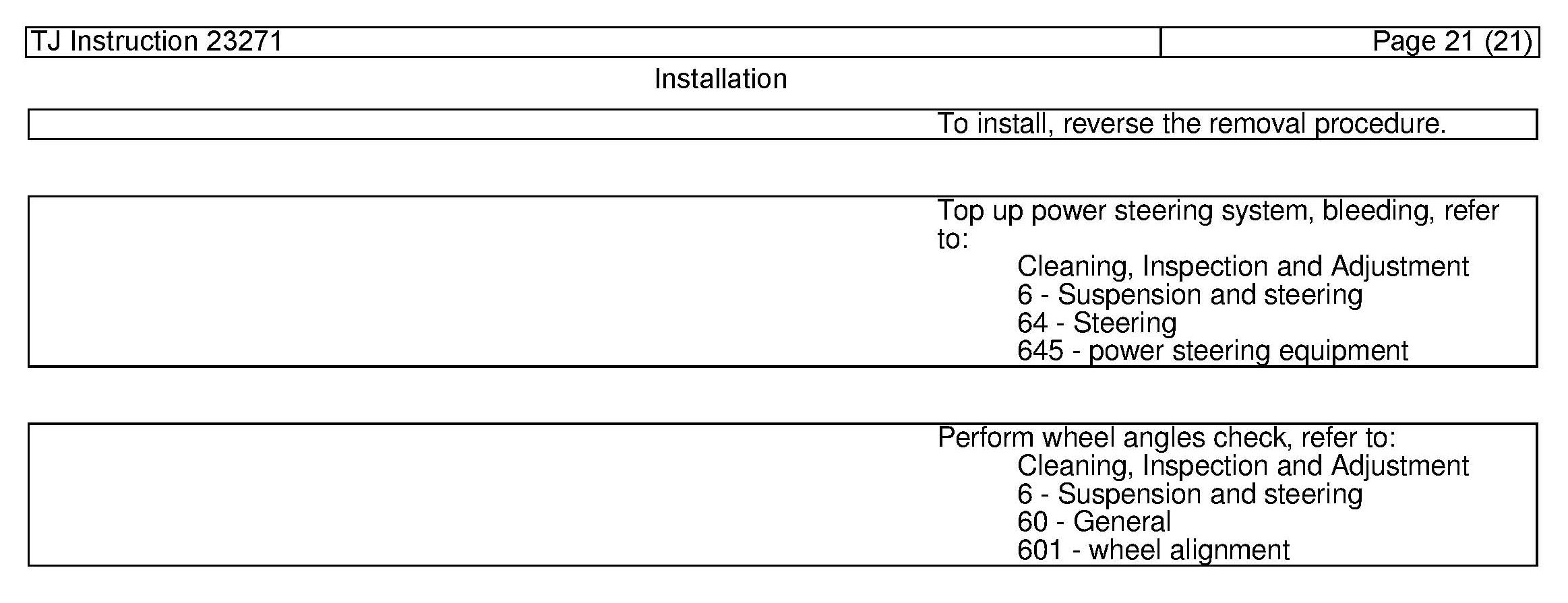

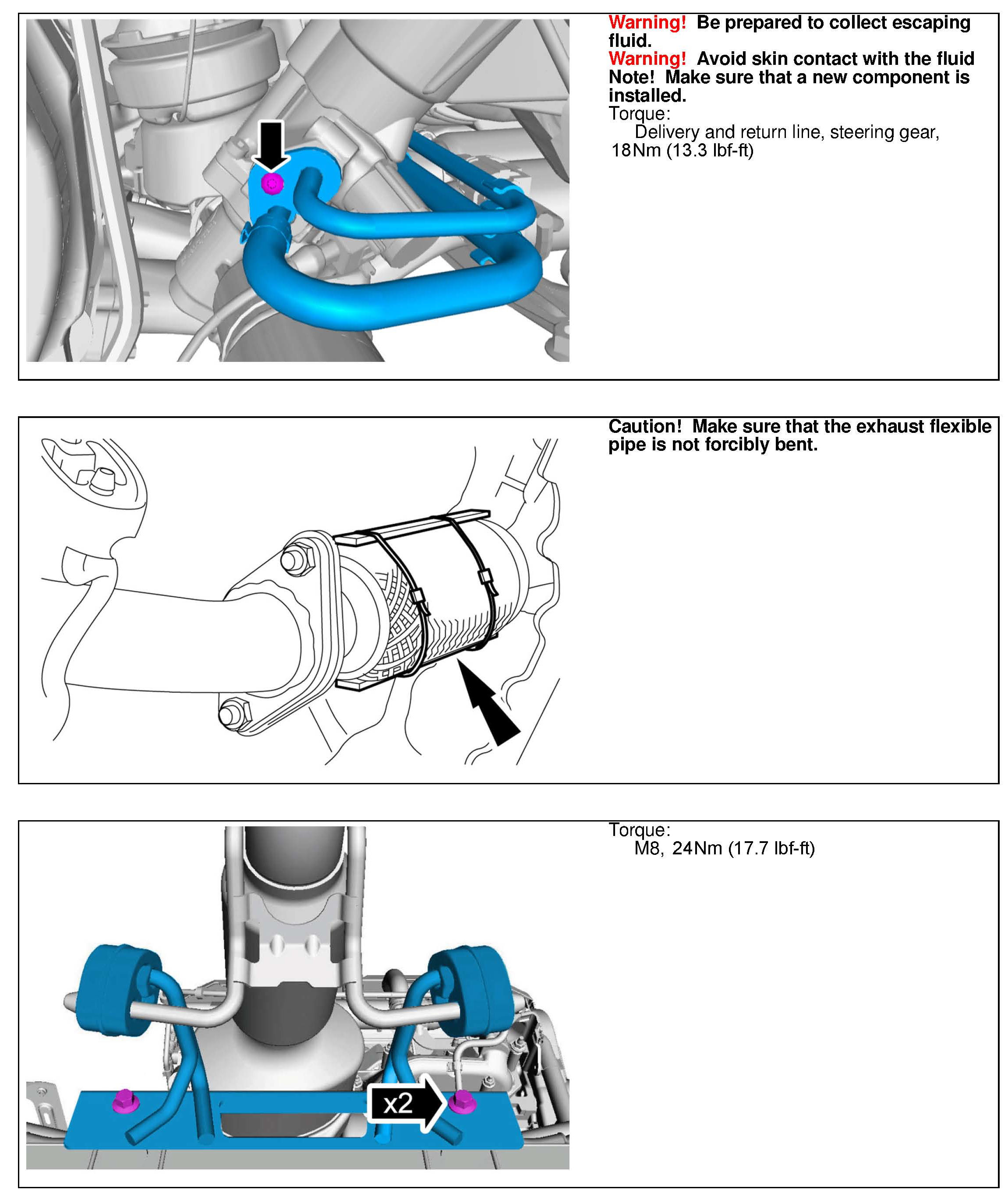

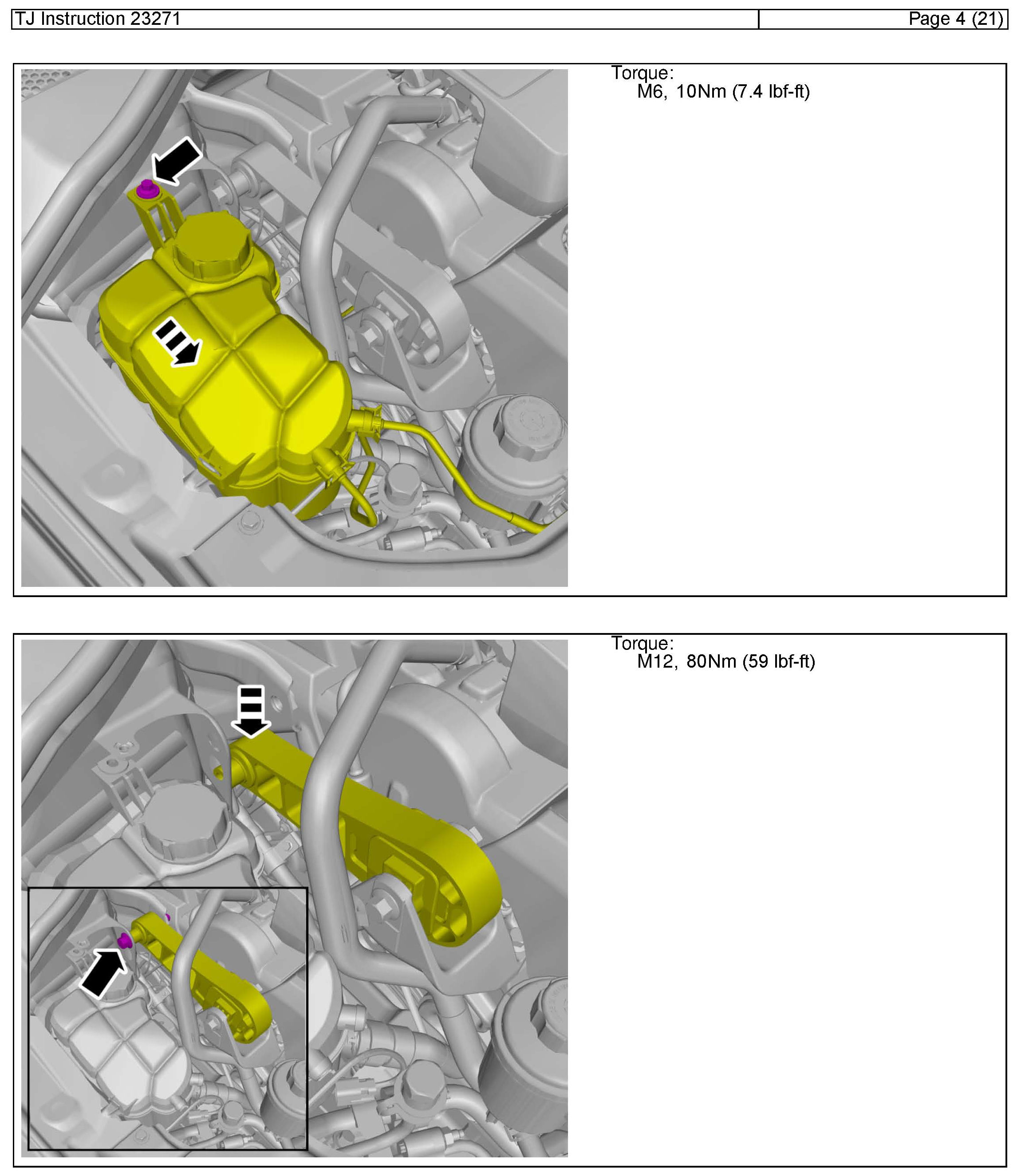

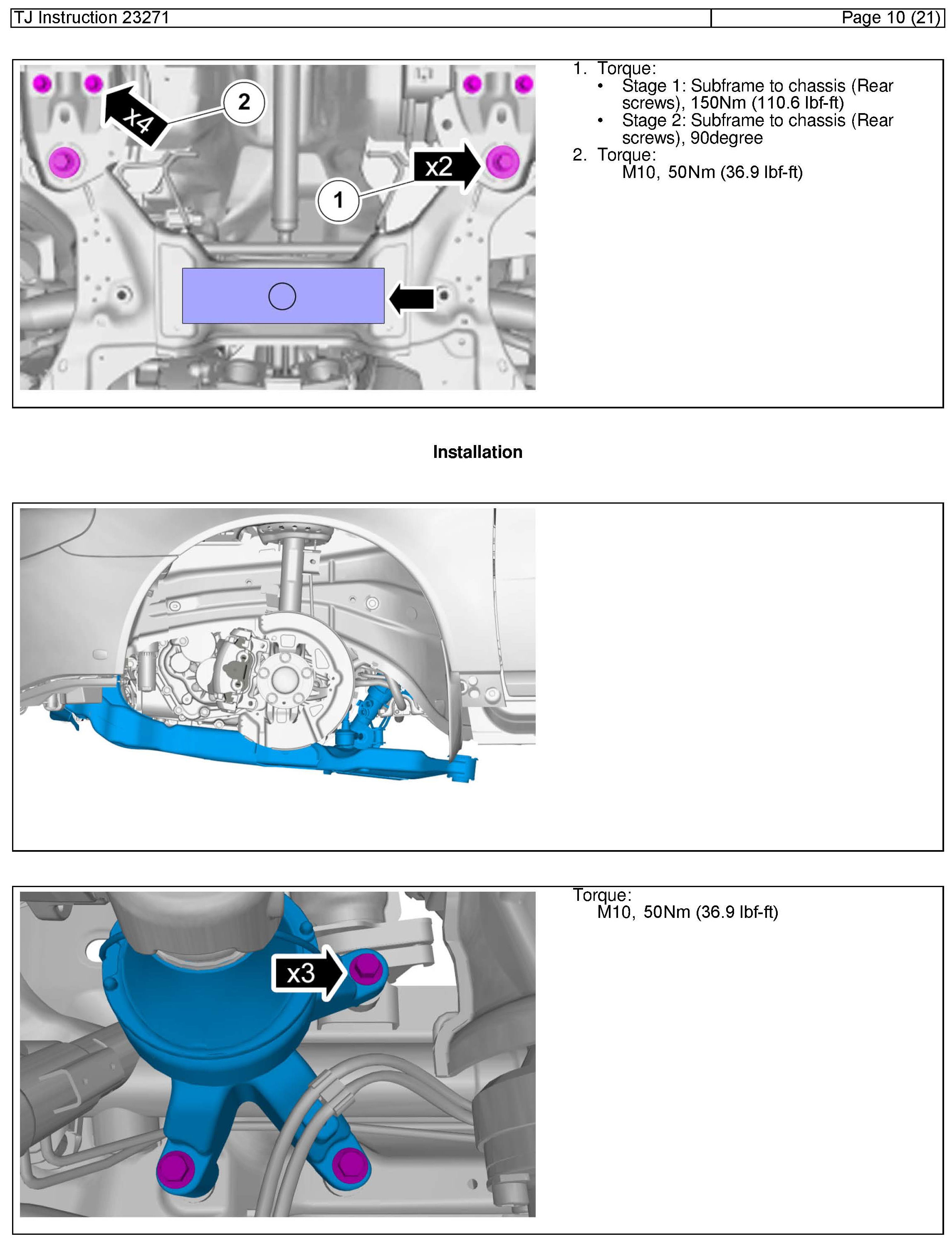

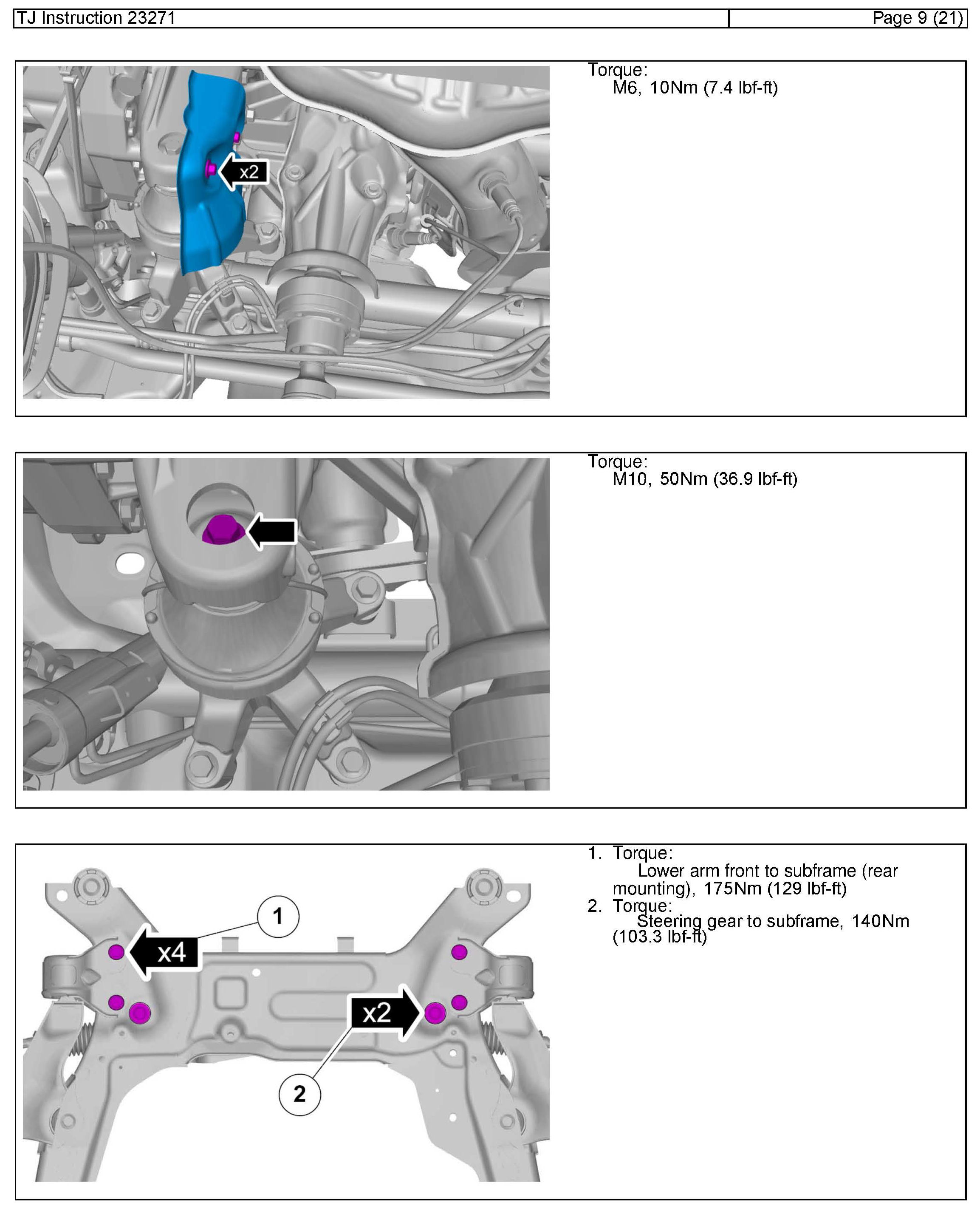

2007 - S80 V8

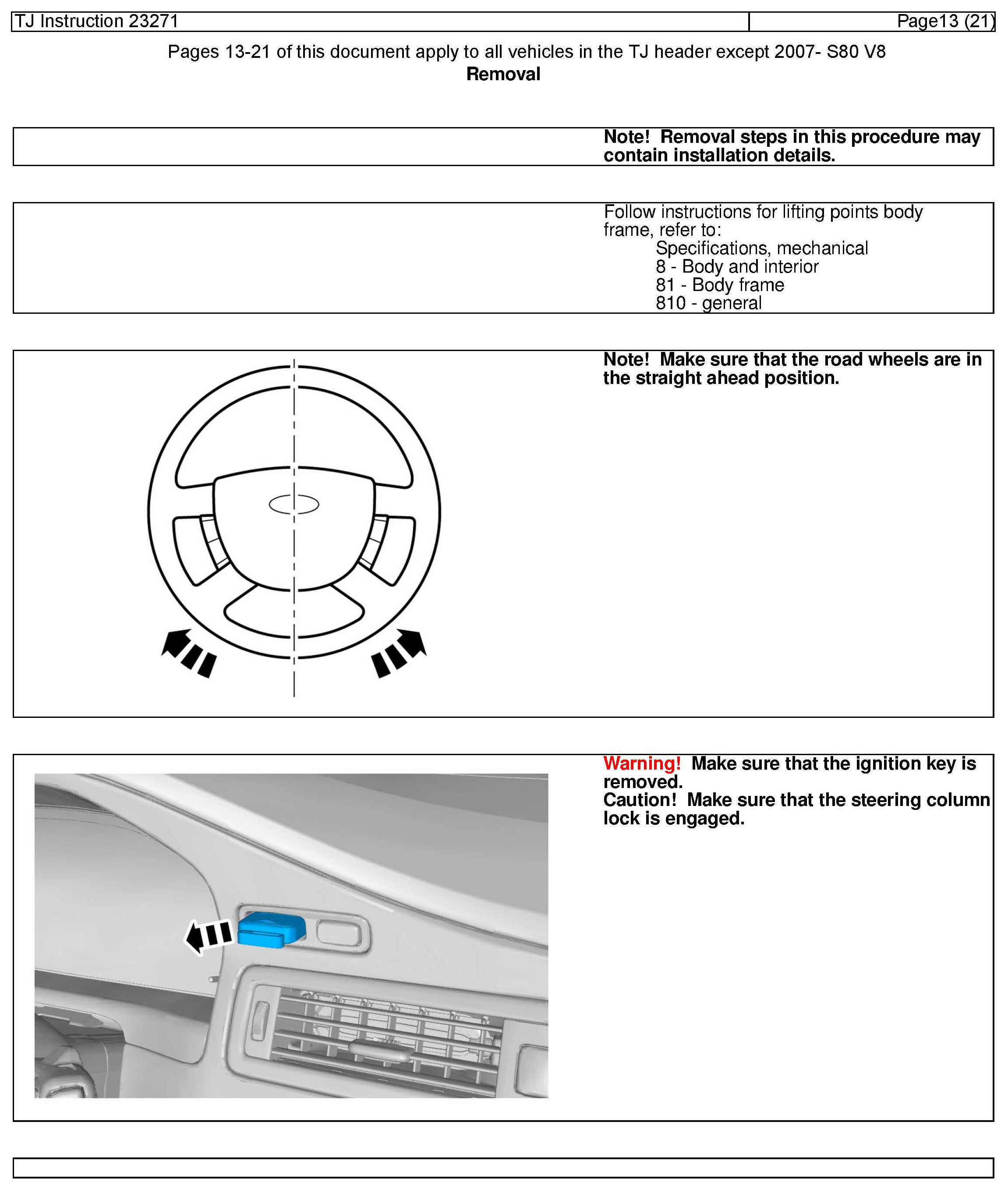

All Vehicles in the TJ Header except 2007 - S80 V8.
