Inner Side Link Ball Joint

Operation number: 64310-2

Inner side link ball joint






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel Refer to: Wheels Service and Repair




Torque: Track rod end to track rod, 90 Nm





Caution! Take extra care not to damage the thread during installation.

Note! Note the number of turns when removing the tie rod end.

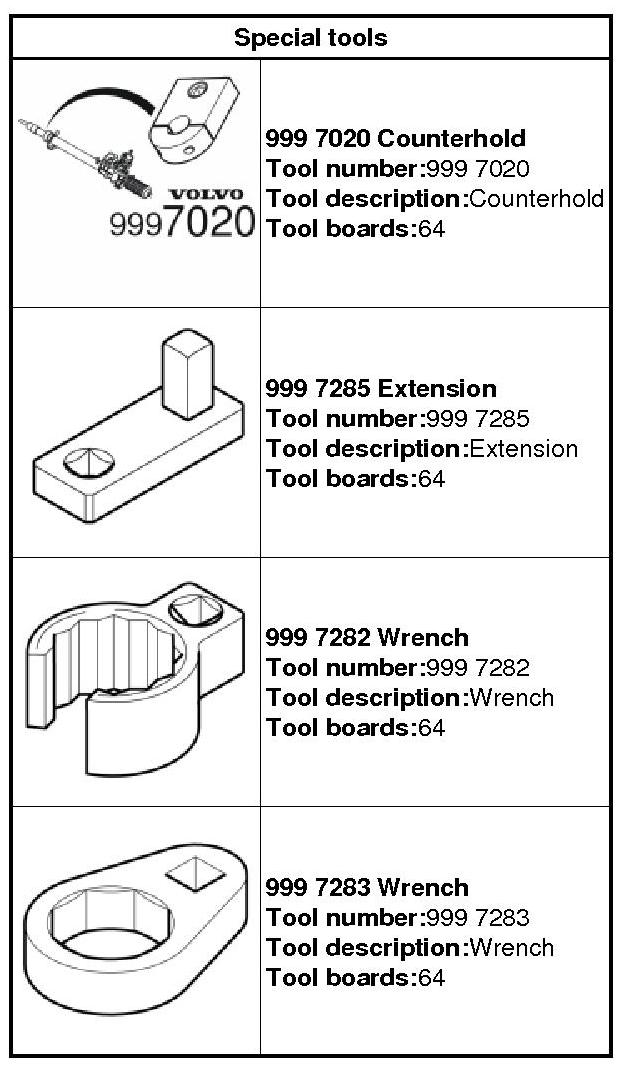

999 7020 Counterhold 999 7020 Counterhold 999 7285 Extension 999 7285 Extension 999 7282 Wrench 999 7282 Wrench
Torque: Inner steering joint for steering gear, 110 Nm

Vehicles with variable assist power steering (VAPS)




999 7020 Counterhold 999 7020 Counterhold 999 7285 Extension 999 7285 Extension 999 7283 Wrench 999 7283 Wrench
Torque: Inner steering joint for steering gear, 110 Nm

All vehicles

Installation

To install, reverse the removal procedure.

Perform wheel angles check Refer to: Wheel angles, check Service and Repair
