Power Steering Fluid Cooler: Service and Repair

Operation number: 64525-2

Oil cooler, power steering

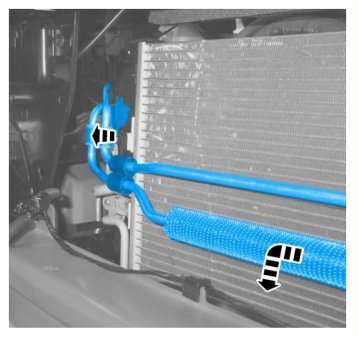

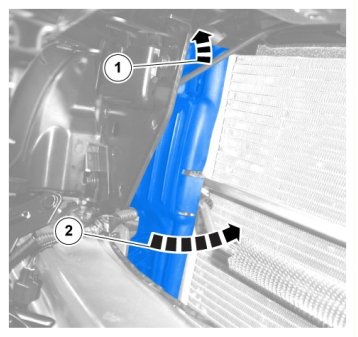

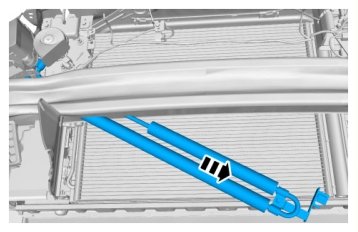

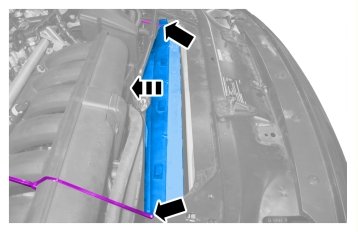

Removal





Remove the headlamp Refer to: Headlamps Service and Repair





Warning! Be prepared to collect escaping fluid.

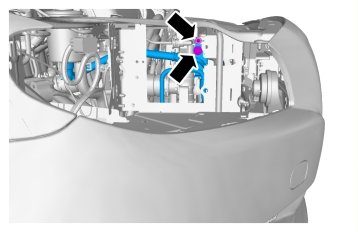

Remove casing bumper front





Warning! Be prepared to collect escaping fluid.

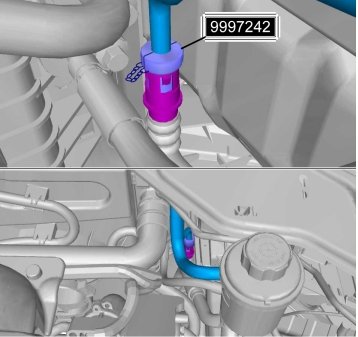

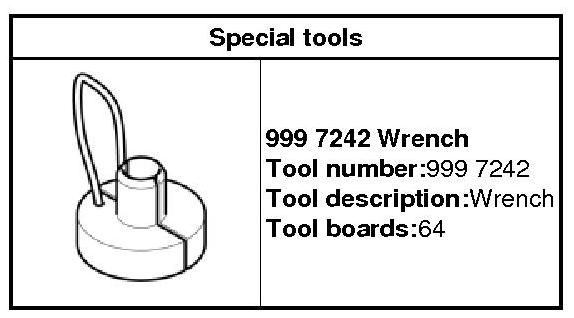

999 7242 Wrench 999 7242 Wrench

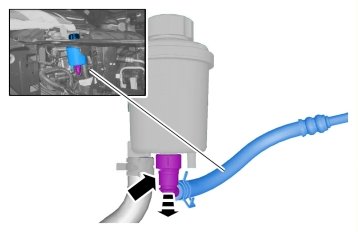

Warning! Be prepared to collect escaping fluid.





Installation

To install, reverse the removal procedure.

Perform power steering system, bleeding air Refer to: Power steering system, bleeding, B6324S5, B6304T4, B6324S4 Service and Repair
