Alternator Pulley / Clutch: Service and Repair

Operation number: 32171-2

Generator pulley, generator






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the alternator Refer to: Generator, B6324S5, B6324S4 Service and Repair Generator, B6304T4 Service and Repair





Note! The shaft and pulley have left-hand threads.

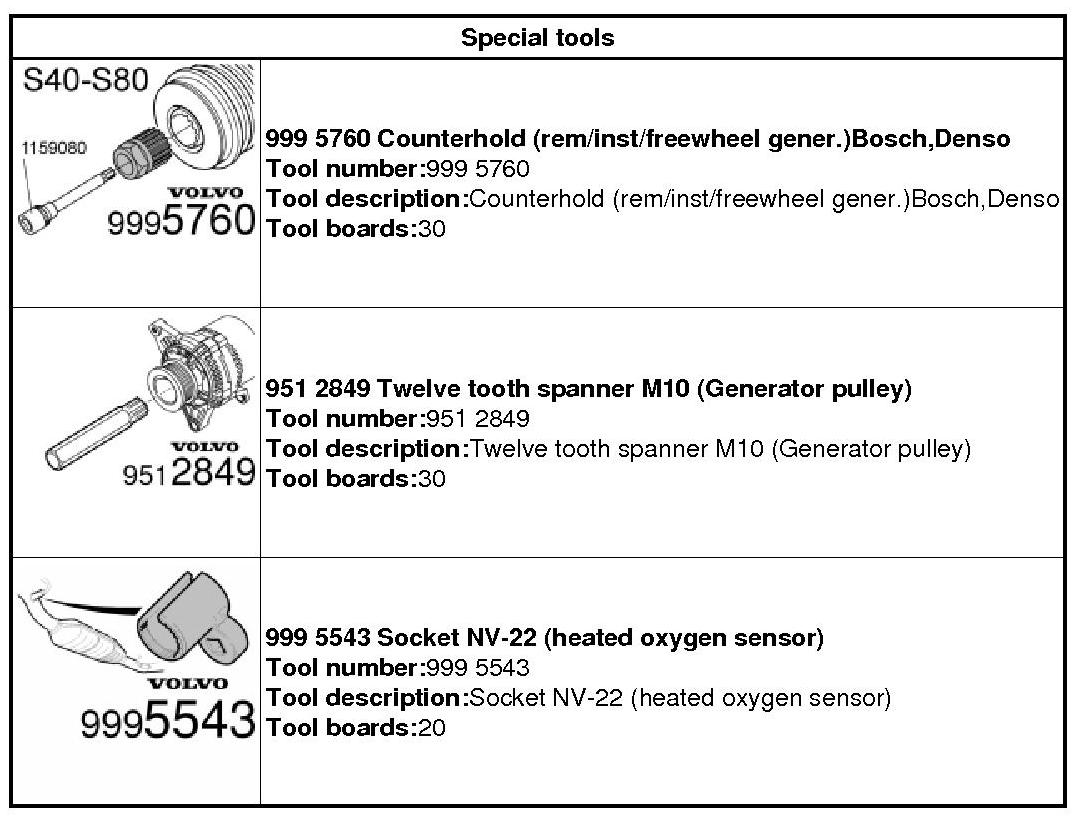

999 5760 Counterhold 999 5760 Counterhold 951 2849 Twelve tooth spanner M10 951 2849 Twelve Tooth Spanner M10
Torque: M12, 80 Nm




999 5543 SOCKET NV-22 HO2S 999 5543 Socket NV-22 HO2S
Torque: M12, 80 Nm

Installation

To install, reverse the removal procedure.
