Headlamp Control Module: Testing and Inspection

Signal specification

General

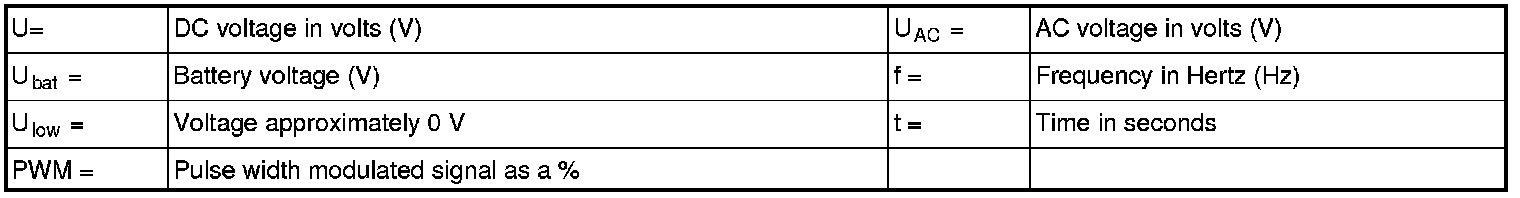

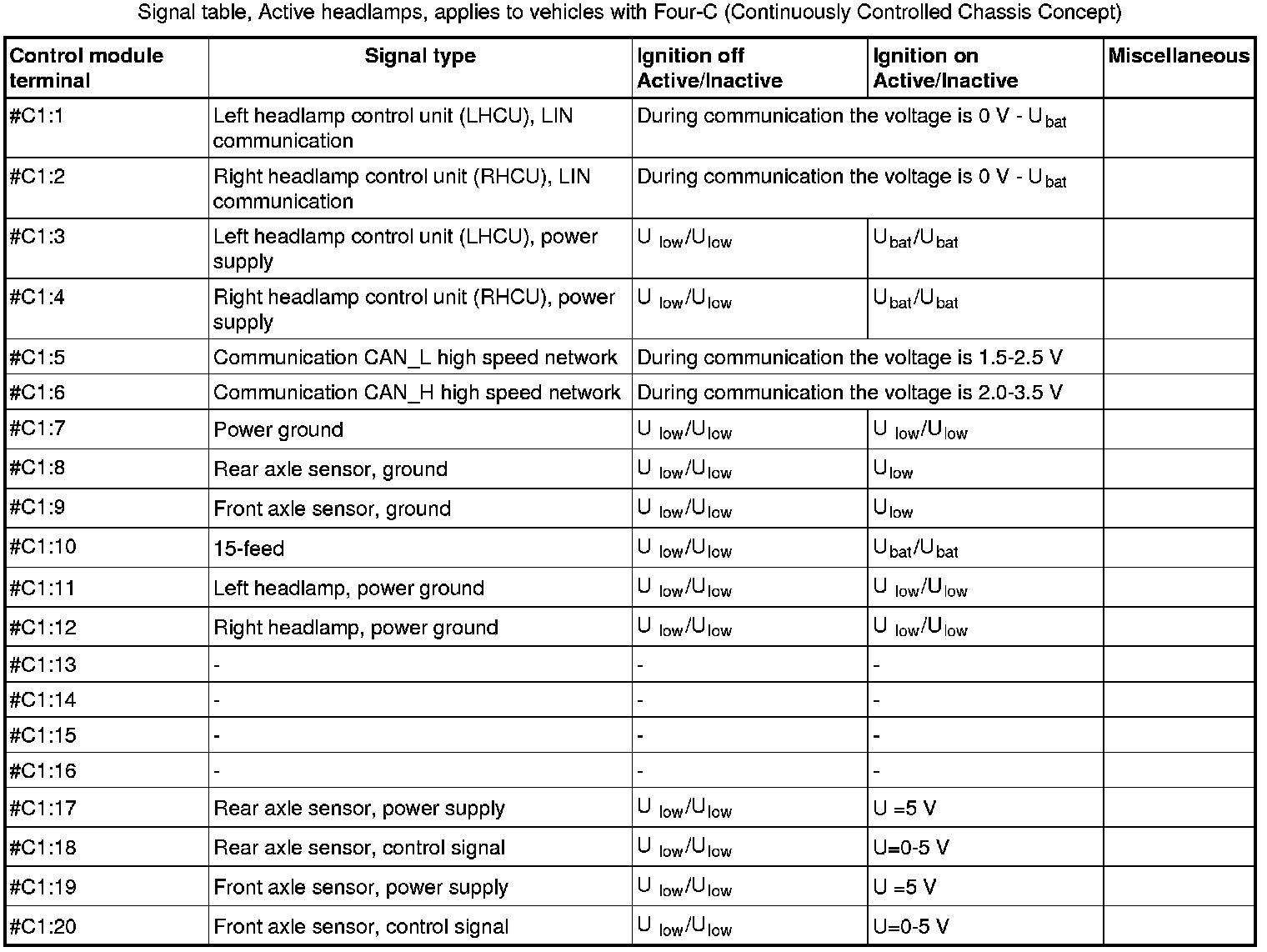

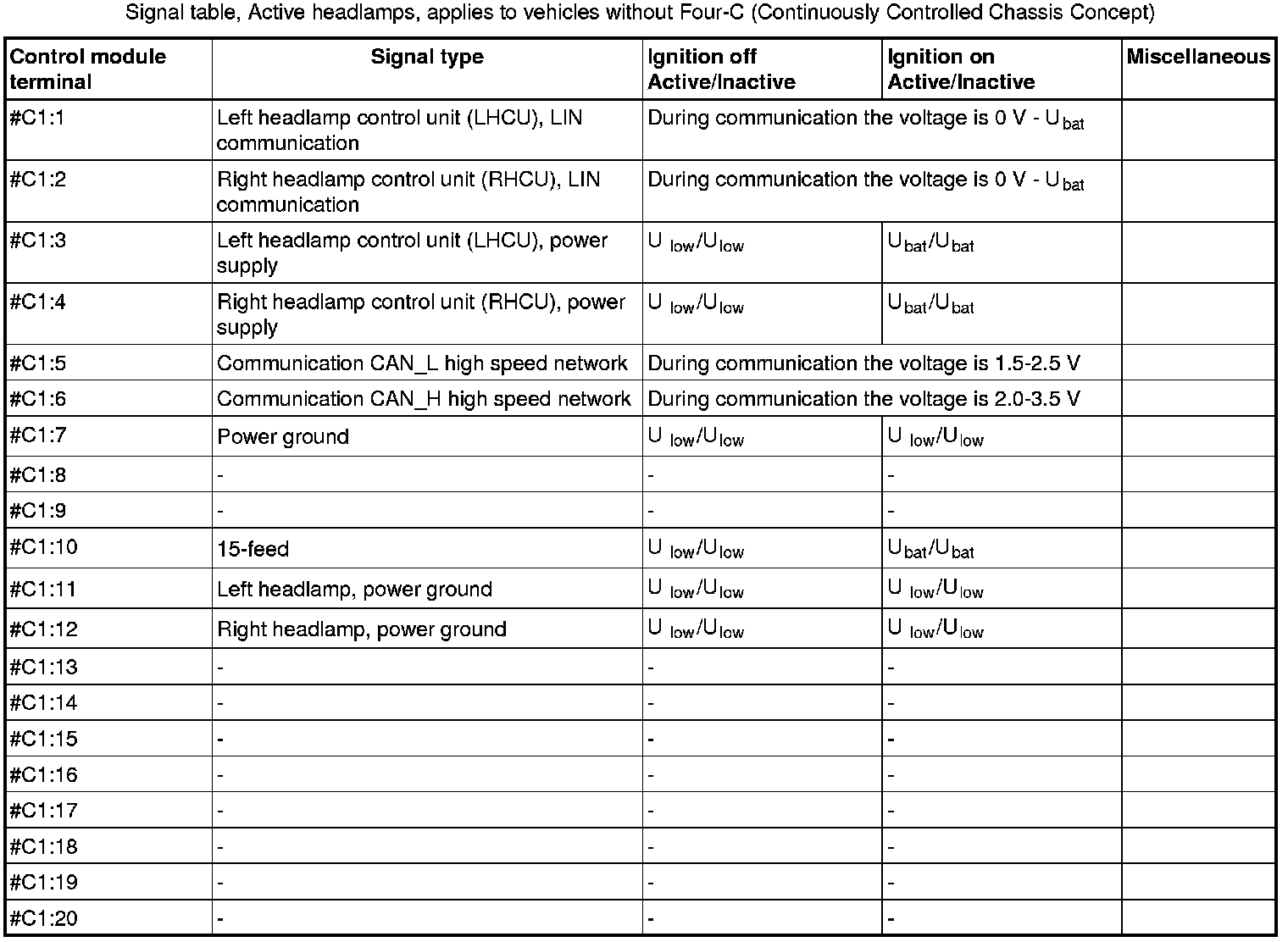

All the values given below are between the respective terminal in column 1 and terminal # C1:7 in column 1 (power ground) unless otherwise stated in brackets.

Note! It is important to check ground terminals before taking readings.
