Removal and Replacement

Operation number: 23412-2

Fuel tank

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Drain the fuel tank. Refer to: Fuel tank draining, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair

Drain fuel system. Refer to: Fuel system pressure release, B6324S5, B6304T4, B6324S4 Fuel System Pressure Release

Disconnect the battery lead.

Remove the front muffler. Refer to: Muffler, front, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Muffler, Front







Remove the rear propeller shaft. Refer to: Propeller shaft, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Propeller Shaft

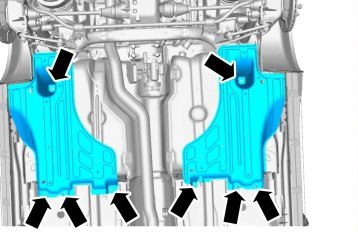

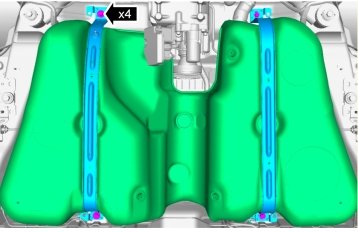

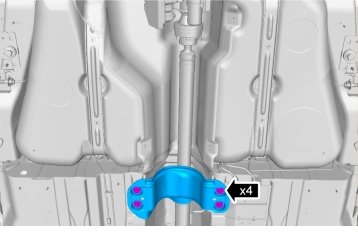

Torque: M8, 24 Nm















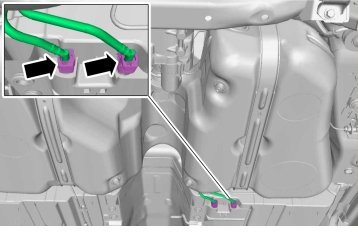

Warning! Fuel may still be present in the fuel tank after draining.

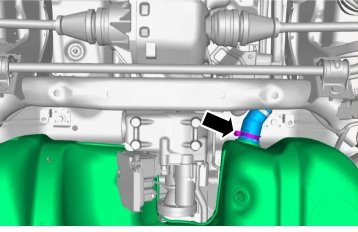

Warning! Be prepared to collect escaping fluids.










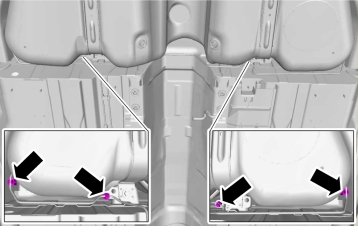

Torque: M8, 24 Nm






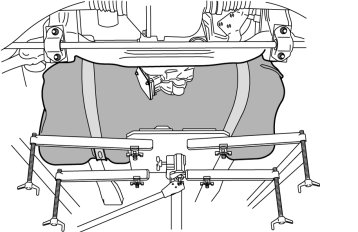

Note! Make sure that no cables or hoses are trapped when lowering.






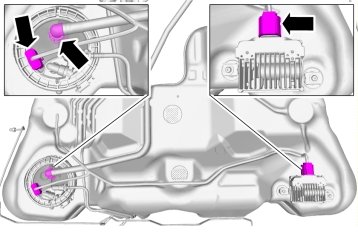

Warning! Be prepared to collect escaping fluids.

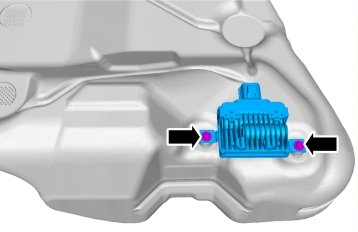

Drain the remaining fuel and remove the tank.







Remove the fuel pump. Refer to: Fuel pump and level sensor unit, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Fuel Pump and Level Sensor Unit

Installation

To install, reverse the removal procedure
