Fuel Injector: Service and Repair

Operation number: 23745-2

Fuel injector






Removal

Note! Removal steps in this procedure may contain installation details.

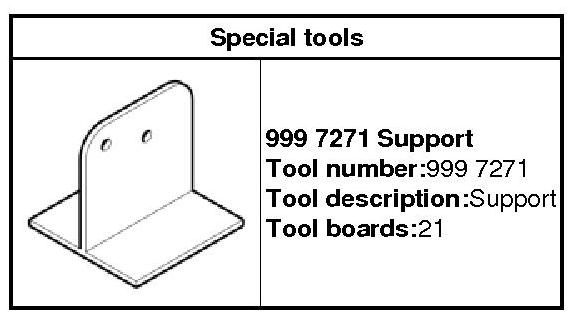

999 7271 Support 999 7271 Support




Torque: M12, 80 Nm

Perform depressurizing fuel system Refer to: Fuel system pressure release, B6324S5, B6304T4, B6324S4 Fuel System Pressure Release




Torque: M6, 10 Nm








Torque: M5, 5 Nm

Installation

To install, reverse the removal procedure.
