Lighting - Front Position Lamps Are Different Colors

Title Front Position Lights, Different Colors

Ref No US24152.1.1 en-GB

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 3526 Func Desc day running lamp; direction indicator; d

Status Released

Status Date 2011-02-08

Issue Date 2011-02-08

Reference





Attachment

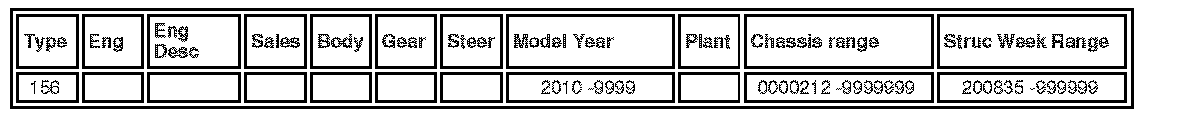

Vehicle Type





CSC

DTC

Text

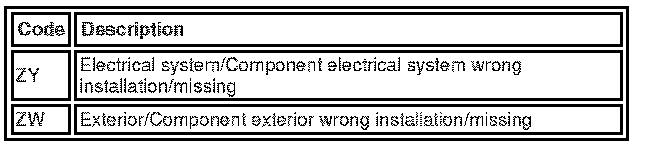

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

DESCRIPTION:

There may be a difference in color of the position lights after replacement of one of the lamps.

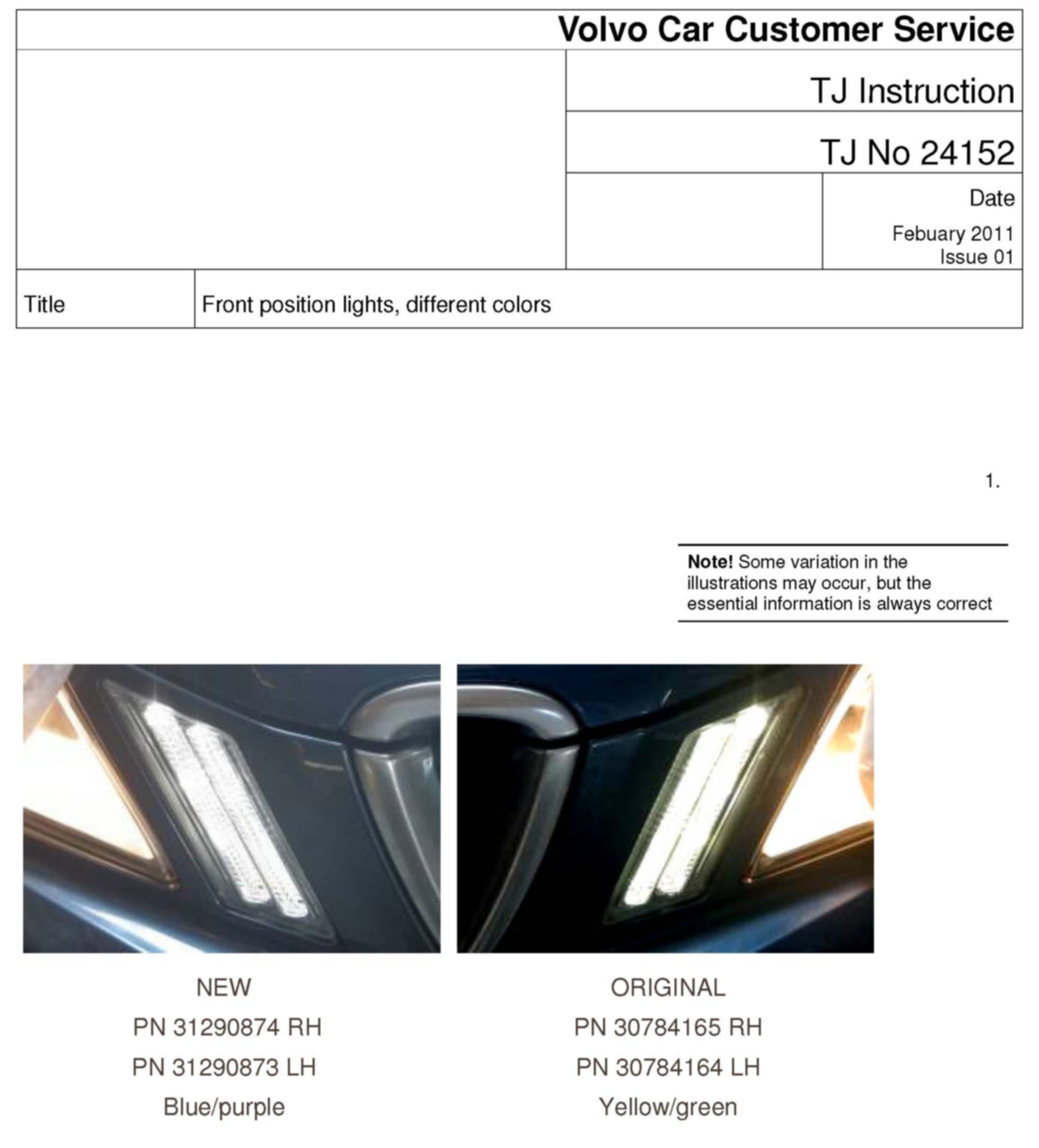

See attachment for photo comparison.

PRODUCT MODIFICATION:

The position lamps in both manufacturing and spare parts were changed 2009W44 (chassis number 0081051).

SERVICE:

If customer complains or technician judges the difference in light to be significant replace lamp according to VIDA

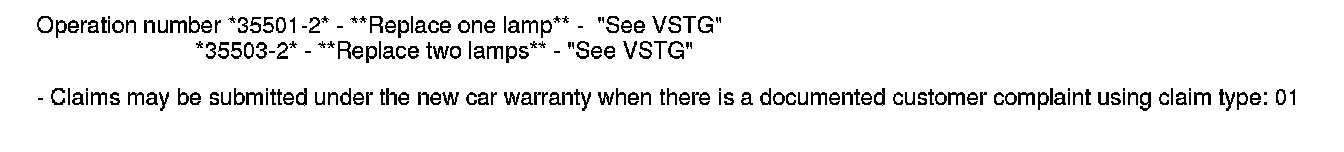

VOLVO STANDARD TIMES GUIDE (VSTG) INFO

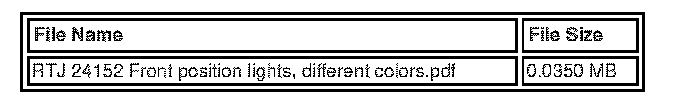

ATTACHMENT





TJ Instructions
