Fog Lights

Fog lights























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Fog lamps






Caution! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

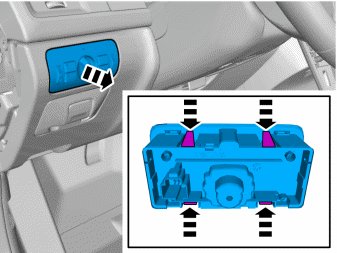

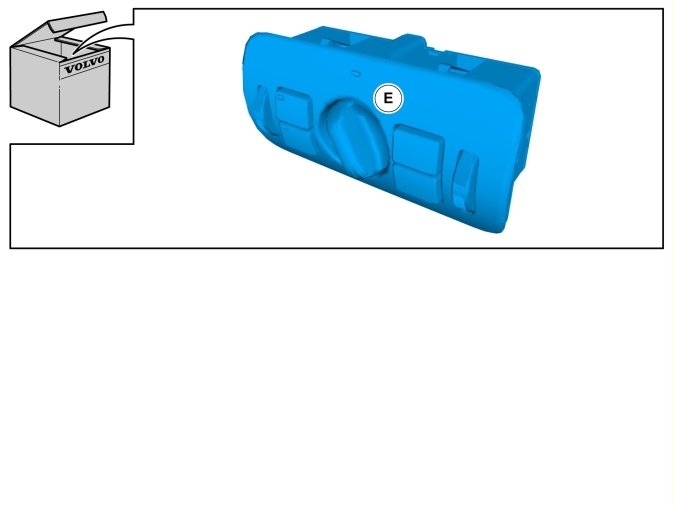

- Remove the switch by pressing the four catches down from the inside and pressing the switch out at the same time.

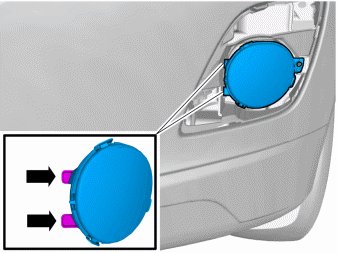

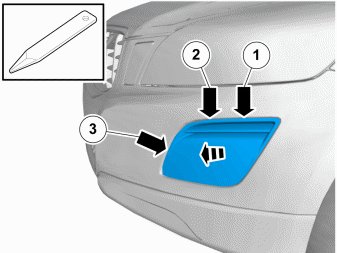

- Remove the cover on the bumper cover by pressing in the hidden hooks using a weatherstrip tool.
- Carry out on both sides.

Caution! Do not damage the paint on the bumper cover.





- Raise the car.

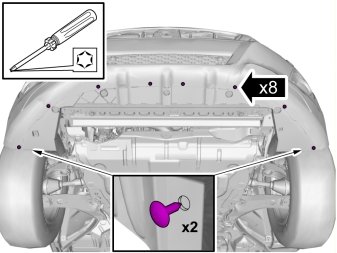

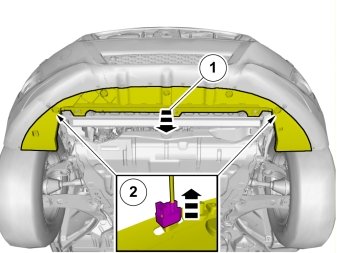

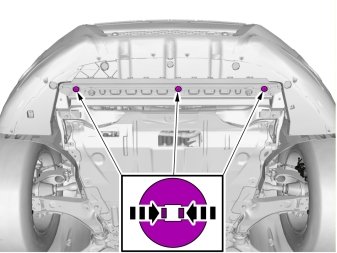

- Detach the air baffle to access the routed connectors.

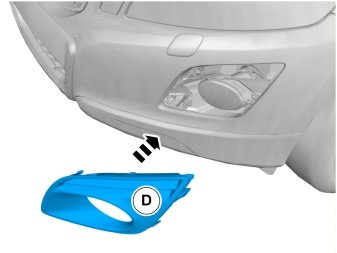

- Insert the two baffles in corresponding cutouts on the bumper cover.





- Repeat the method steps for the other fog lamp.
- Reinstall the removed components in reverse order.





- Download the software for the accessory's function.





- Switch on the fog lamp and check its setting.

In the event of adjustment:

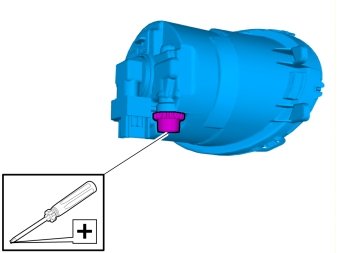

- Remove the fog lamp and adjust the adjustment screw.





- Carry out on both sides.
