Part 3

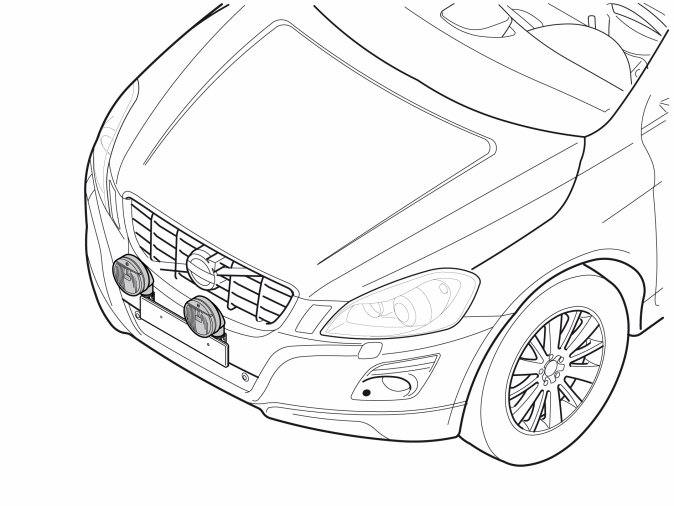

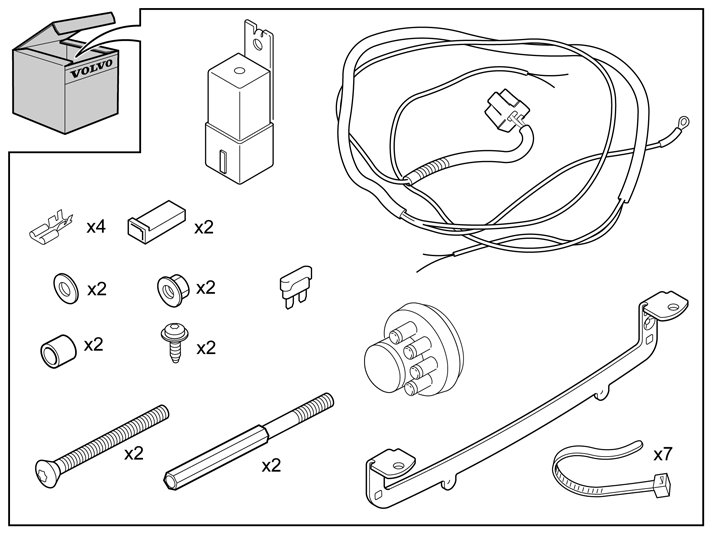

Auxiliary lights, installation kit
INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Auxiliary lights, installation kit
- Reinstall the detached components in reverse order.
Note! Check that guides and rubber seals are fitted correctly, and that the leads do not become trapped.

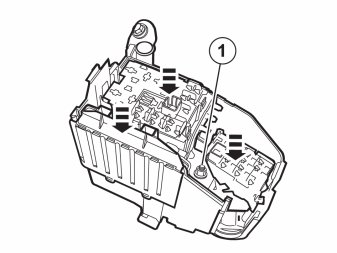

- Reinstall the nut (1). Tightening torque: 10 Nm (7.3 lbf.ft).
- Install the fuse in position 28.
- Reinstall the cover.

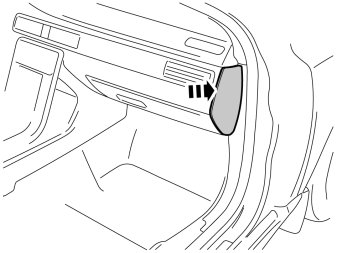

- Remove the end face panel on the right-hand side.

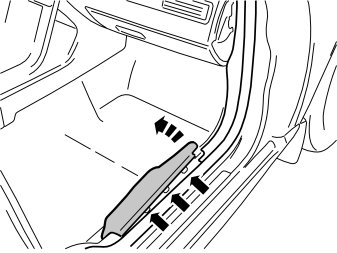

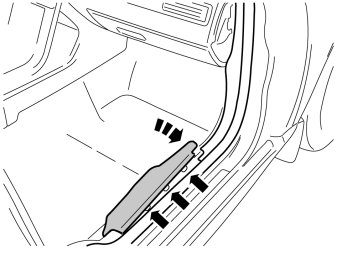

- Remove the centre sill trim panel by carefully prying off its front edge and pull upwards until the three clips release. Now pull it off forwards.

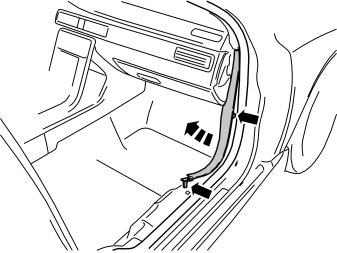

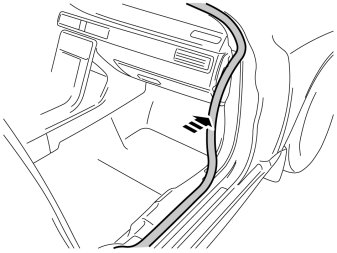

- Detach the sealing strip by the front sill trim panel.

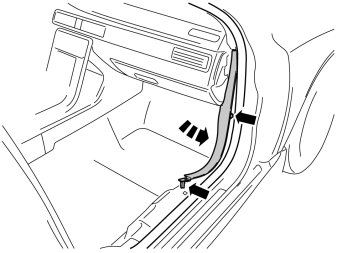

- Remove the front sill trim panel by pulling up the rear edge until the clips release. Now pull the panel backwards until the clip in the centre releases. Now pull it loose diagonally downwards from the A-pillar panel.
- Remove the screws and the panel.
- Unplug the edge-piece for the lighting.
- Remove the two screws.

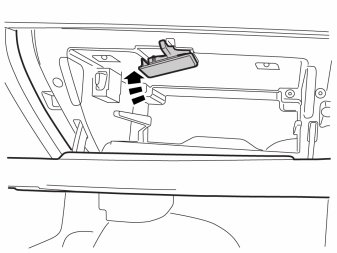

- Carefully pry off the glovebox lighting.

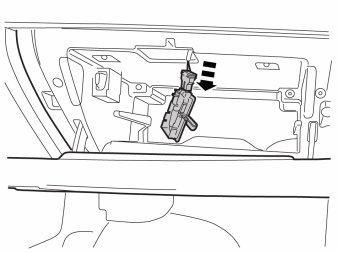

- Disconnect the connector from the lamp in the glove box lighting, it may be tight.

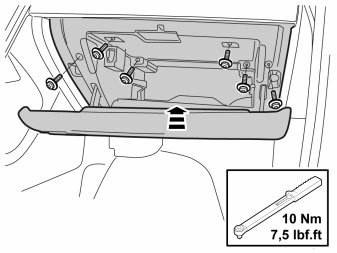

- Remove the six screws.
- Pull out the glovebox a little and if necessary loosen the connector on the SIM card holder at the rear.
- Remove the glovebox.

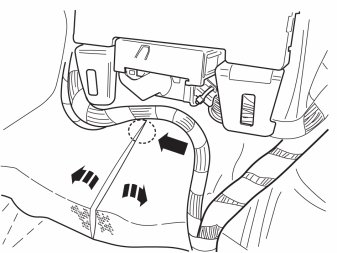

- Move the carpeting aside. Make a cut in the thick insulating mat starting level with the blue connector of the central electronic module (CEM) and then continue straight down.
- Move aside the insulating mat to access the grommet.

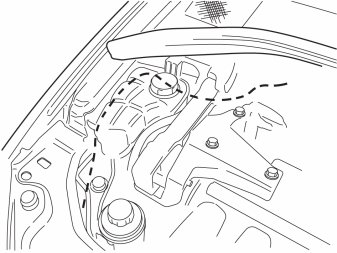

- Route the green (GN) cable backwards and down to the rubber grommet.
- Secure the cable with cable ties so that it is not crushed or risks being broken.

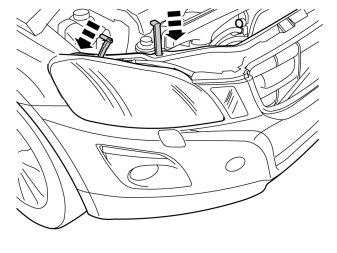

- Raise the car and remove the engine splash guard.
- Remove the existing rubber grommet.
- Cut off a small rubber teat on the new rubber grommet and thread through the cable. Route the cable into the passenger compartment.
- Install the rubber grommet.
- Reinstall the engine splash guard and the cover panel.
- Unplug the green connector on the Central Electronic Module (CEM).

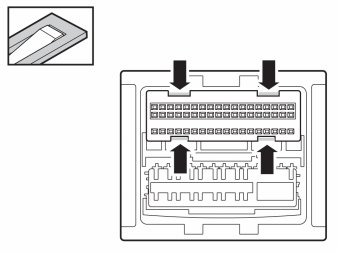

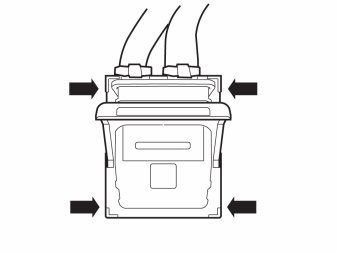

- Remove the connector's cover by lifting the four hooks.
- Lift at the four hooks and remove the catch.

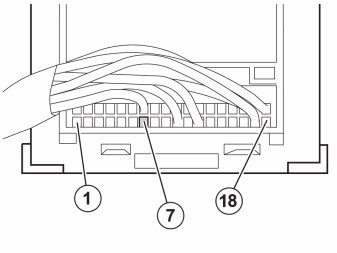

- Connect the green (GN) cable to position 7.
- Reinstall the lock.
- Reinstall the cover.
- Plug in the connector.
- Fold back the carpet.
- Take the glovebox and connect the connector to the SIM card holder, if necessary.
- Insert the connector to the glovebox lighting.

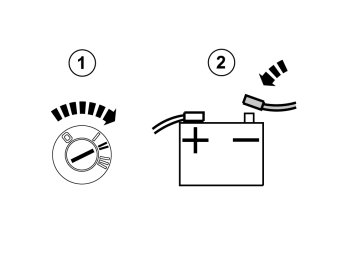

- Turn the ignition key to position II.
- Reconnect the battery negative lead
- Download the software for the accessory's function.
