Actuator Recirculation

Operation number: 87303-2

Actuator recirculation

Note! Some variation in the illustrations may occur, but the essential information is always correct.

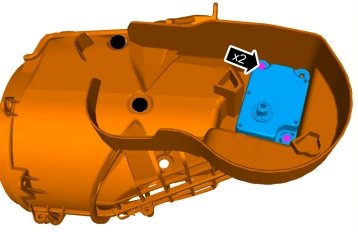

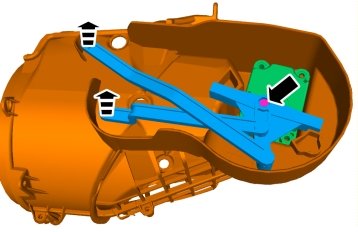

Removal

Remove the blower housing. Refer to: Blower motor passenger compartment, L.H.D Service and Repair.










Installation

To install, reverse the removal procedure.

Identify the damper motor module (DMM) reconstruction. See VIDA vehicle communication.

Carry out a performance test of the climate control system. Refer to: Climate control system, check Climate Control System, Check.
