Component Tests and General Diagnostics

Exhaust system, check











Removal

Remove heat shield plate Refer to: Exhaust manifold, B6324S4, B6304T4, B6324S5 Service and Repair

See information about lifting points body Refer to: Jacking points body Locations









Leak detection

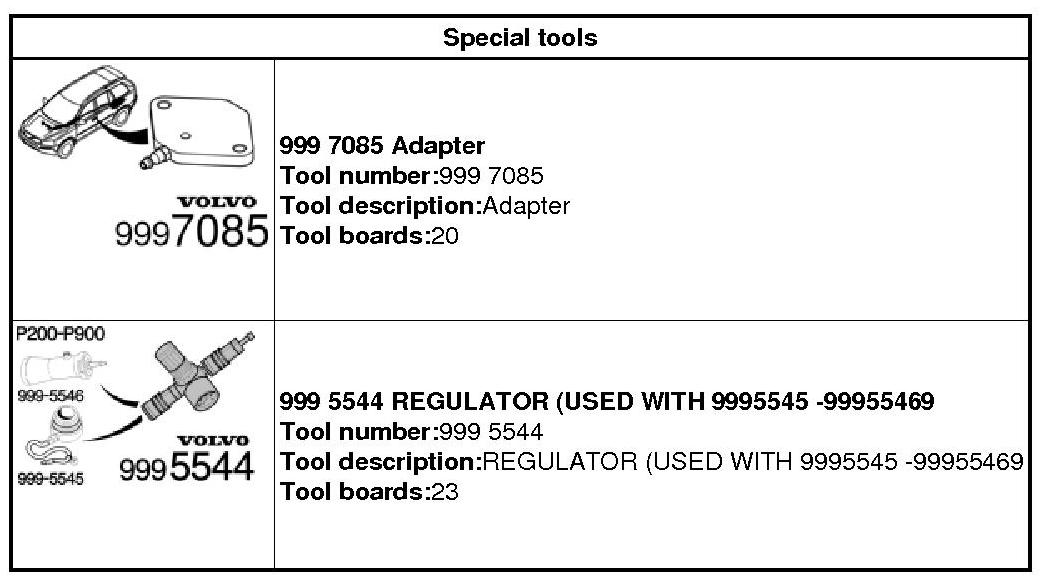

999 7085 Adapter 999 7085 Adapter 999 5544 REGULATOR 999 5544 Regulator
1. Torque: M8, 24 Nm

2.

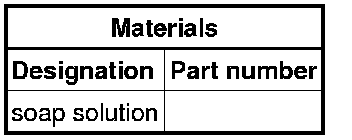

Use: soap solution,

999 7085 Adapter 999 7085 Adapter 999 5544 REGULATOR 999 5544 Regulator

Installation




Torque: M8, 24 Nm
