Timing Chain, Assembling

Timing chain, assembling










Installation




999 7261 Position sensor 999 7261 Position Sensor








Torque: M6, 10 Nm





Install the following items:
1. 999 7264 Counterhold 999 7264 Counterhold 999 7263 Counterhold 999 7263 Counterhold 999 7272 TORX 60 999 7272 Torx(R) 60
2. Torque: Centre bolt, exhaust camshaft Stage 1: 75 Nm Stage 2: 90 degree

3. Torque: Centre bolt, intake camshaft, 110 Nm




999 7261 Position sensor 999 7261 Position Sensor




999 7263 Counterhold 999 7263 Counterhold 999 7264 Counterhold 999 7264 Counterhold 999 7272 TORX 60 999 7272 Torx(R) 60
Remove the tools.




999 7257 Wrench 999 7257 Wrench













Install the following items:
1. 999 7266 Position sensor 999 7266 Position Sensor
2. 999 7267 Position sensor 999 7267 Position Sensor





Note! Install all the bolts finger tight before final tightening.




Torque: M7, 17 Nm




Torque: M7, 17 Nm




Torque: M8, 24 Nm





Install the following items:
1. Torque: M6, 10 Nm

2. Torque: M7, 17 Nm

3. Torque: M8, 24 Nm

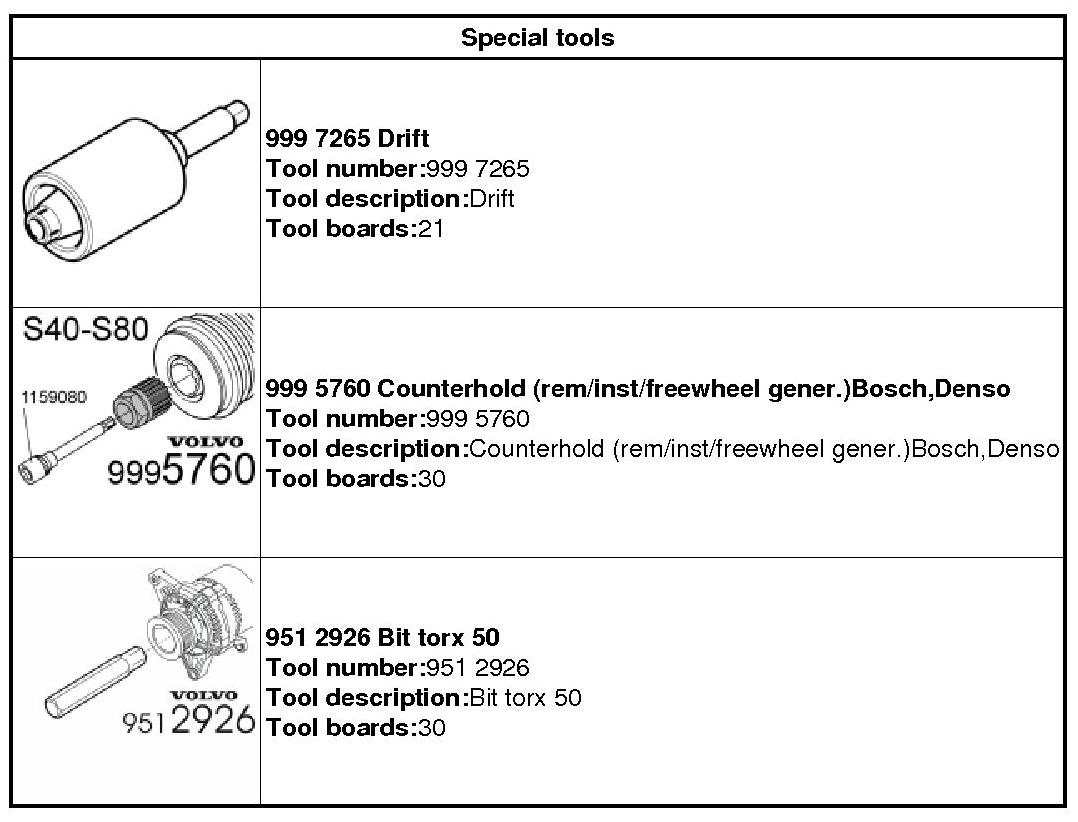

999 7265 Drift 999 7265 Drift




999 7265 Drift 999 7265 Drift




999 7265 Drift 999 7265 Drift




999 7265 Drift 999 7265 Drift




999 5760 Counterhold 999 5760 Counterhold 951 2926 Bit torx 50 951 2926 Bit Torx(R) 50
Torque: Belt pulley auxiliary unit, 60 Nm
