Gasket, Outer Timing Cover

Operation number: 21502-2

Gasket, outer timing cover






Removal

Remove Accessory Drive Component Bracket Refer to: Accessory Drive Component Bracket, B6304T4 Service and Repair

Drain the cooling system Refer to: Cooling system - draining, charging and bleeding, B6324S5, B6304T4, B6324S4 Service and Repair

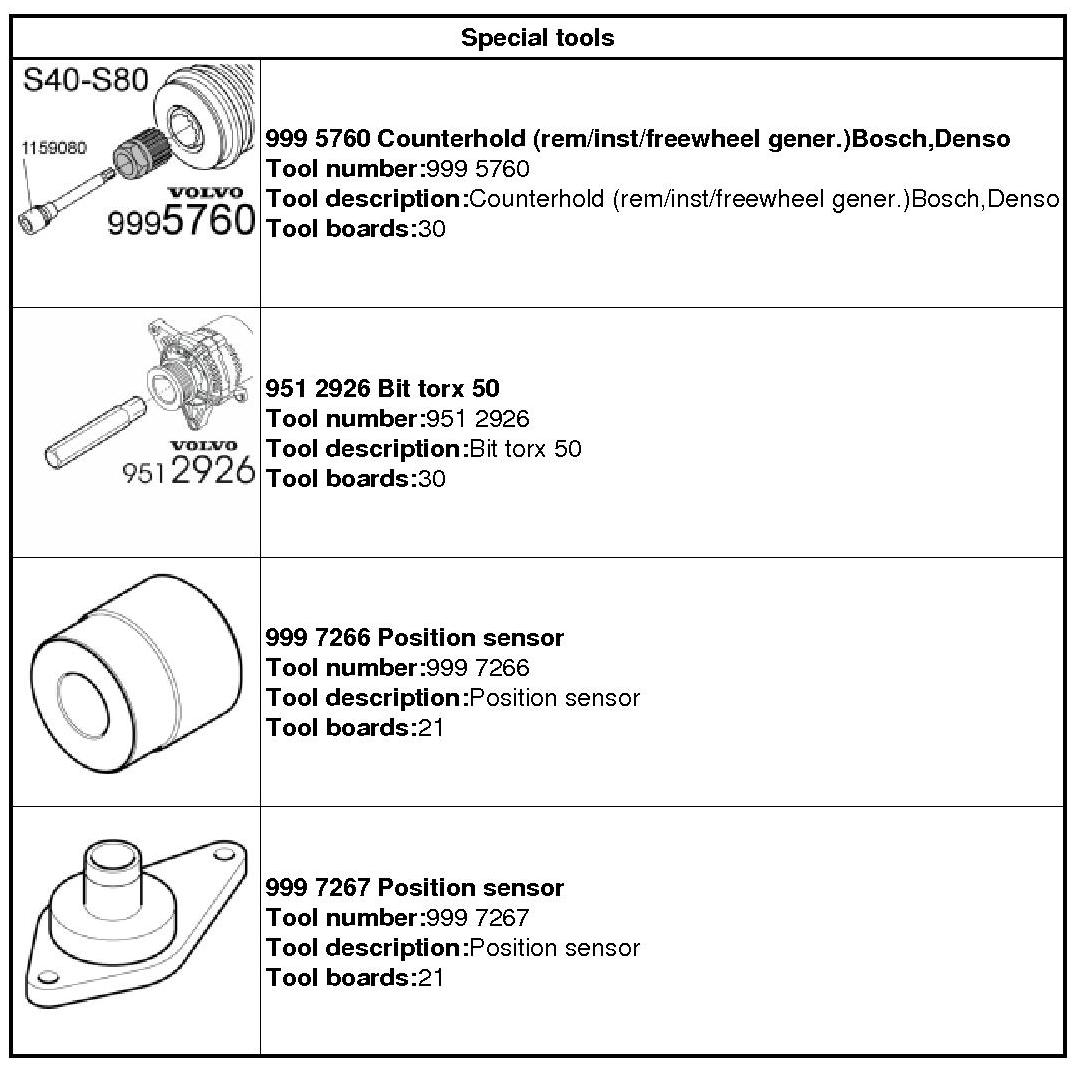

999 5760 Counterhold 999 5760 Counterhold 951 2926 Bit torx 50 951 2926 Bit Torx(R) 50













Note! Make sure that a new component is installed.





Installation




999 7266 Position sensor 999 7266 Position Sensor 999 7267 Position sensor 999 7267 Position Sensor





Note! Only tighten the bolts finger tight at this stage.

1. Torque: M8, 24 Nm

2. Torque: M7, 17 Nm




Torque: M7, 17 Nm




Torque: M7, 17 Nm




Torque: M8, 24 Nm





Install the following items:
1. Torque: M6, 10 Nm

2. Torque: M7, 17 Nm

3. Torque: M8, 24 Nm

Install the following items:
- Intermediate Shaft Gasket, Accessory Drive Side Refer to: Accessory Drive Side Intermediate Shaft Gasket, B6324S5, B6304T4, B6324S4 Accessory Drive Side Intermediate Shaft Gasket
- Accessory Drive Component Bracket Refer to: Accessory Drive Component Bracket, B6304T4 Service and Repair

Fill the cooling system. Refer to: Cooling system - draining, charging and bleeding, B6324S5, B6304T4, B6324S4 Service and Repair
