Rear Crankshaft Main Bearing Seal: Service and Repair

Operation number: 21644-0

Crankshaft seal, rear











Removal

Note! Removal steps in this procedure may contain installation details.

Remove drive flange plate Refer to: Carrier plate, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair

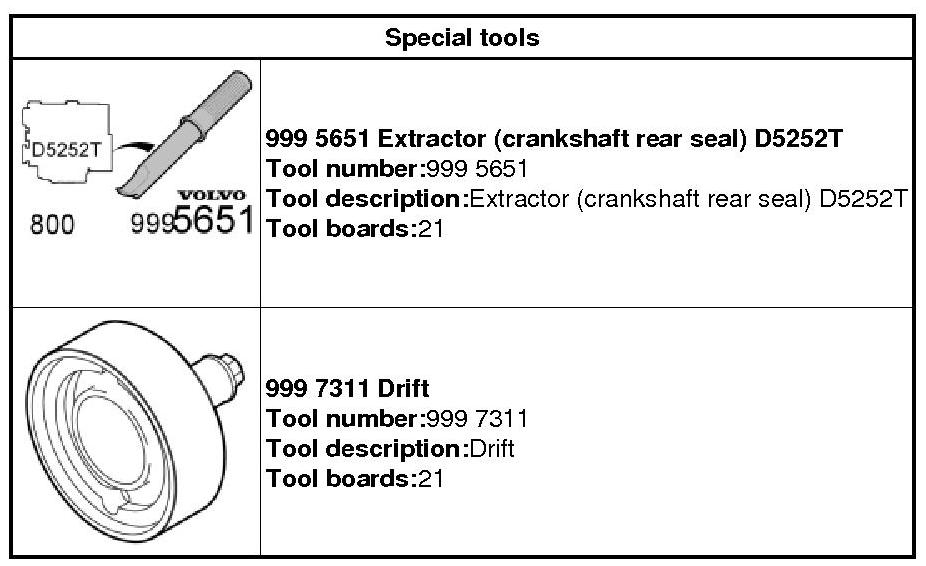

999 5651 Extractor 999 5651 Extractor





Caution! Cleaning must be directed around the crankshaft journal, not along it. Make sure that any residue from the emery cloth and any other foreign materials are completely removed before installing a new crankshaft seal.

Use: Emery paper.




999 7311 Drift 999 7311 Drift

Use: Engine oil,









Installation

To install, reverse the removal procedure.
