Oil Pump: Service and Repair

Operation number: 22114-2

Oil pump






Removal

Remove oil sump Refer to: Oil pan, B6304T4 Service and Repair

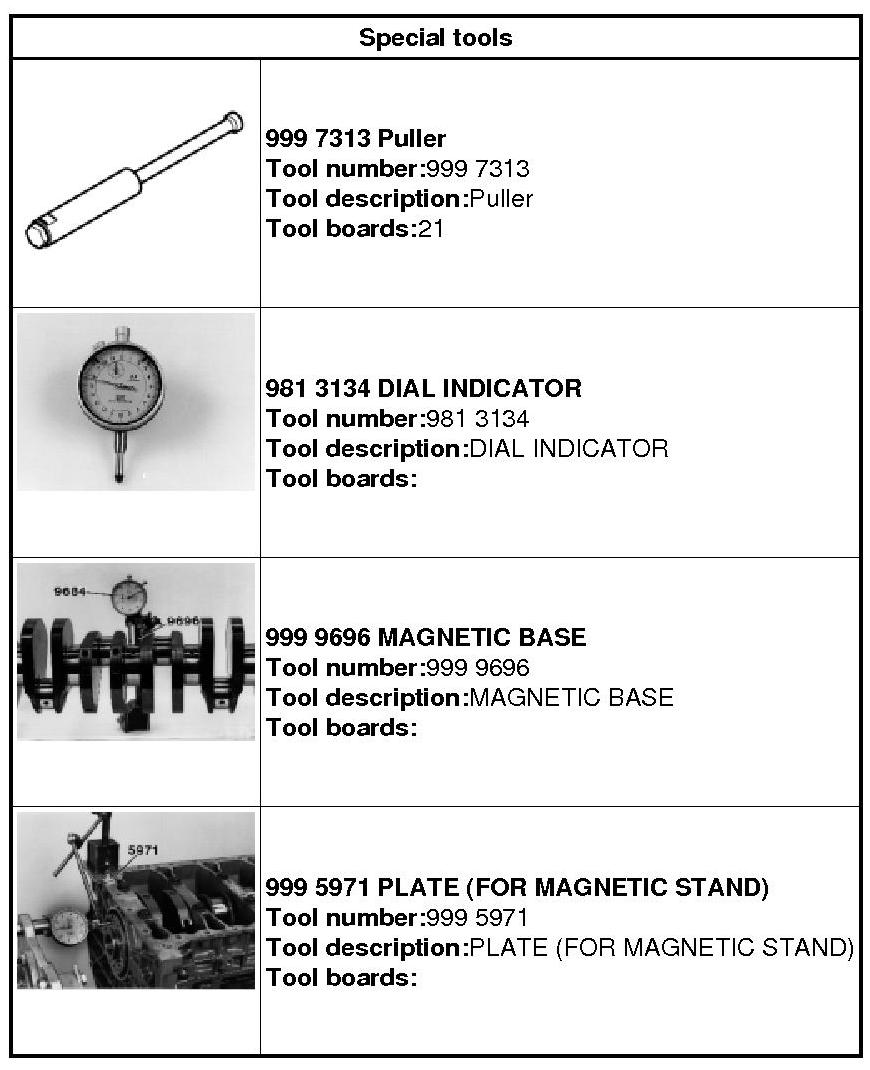

999 7313 Puller 999 7313 Puller

Installation





Install the following items:
1.
2.
3.
Note! Only tighten the bolt finger tight at this stage.

4.
Note! Only tighten the bolt finger tight at this stage.




981 3134 DIAL INDICATOR 981 3134 Dial Indicator 999 9696 MAGNETIC BASE 999 9696 Magnetic Base 999 5971 PLATE 999 5971 Plate




See information about specifications Refer to: Engine, B6304T4 Engine




Torque: M6, 10 Nm




Torque: M7, 17 Nm

Install oil sump Refer to: Oil pan, B6304T4 Service and Repair
