Cable Harness Routing

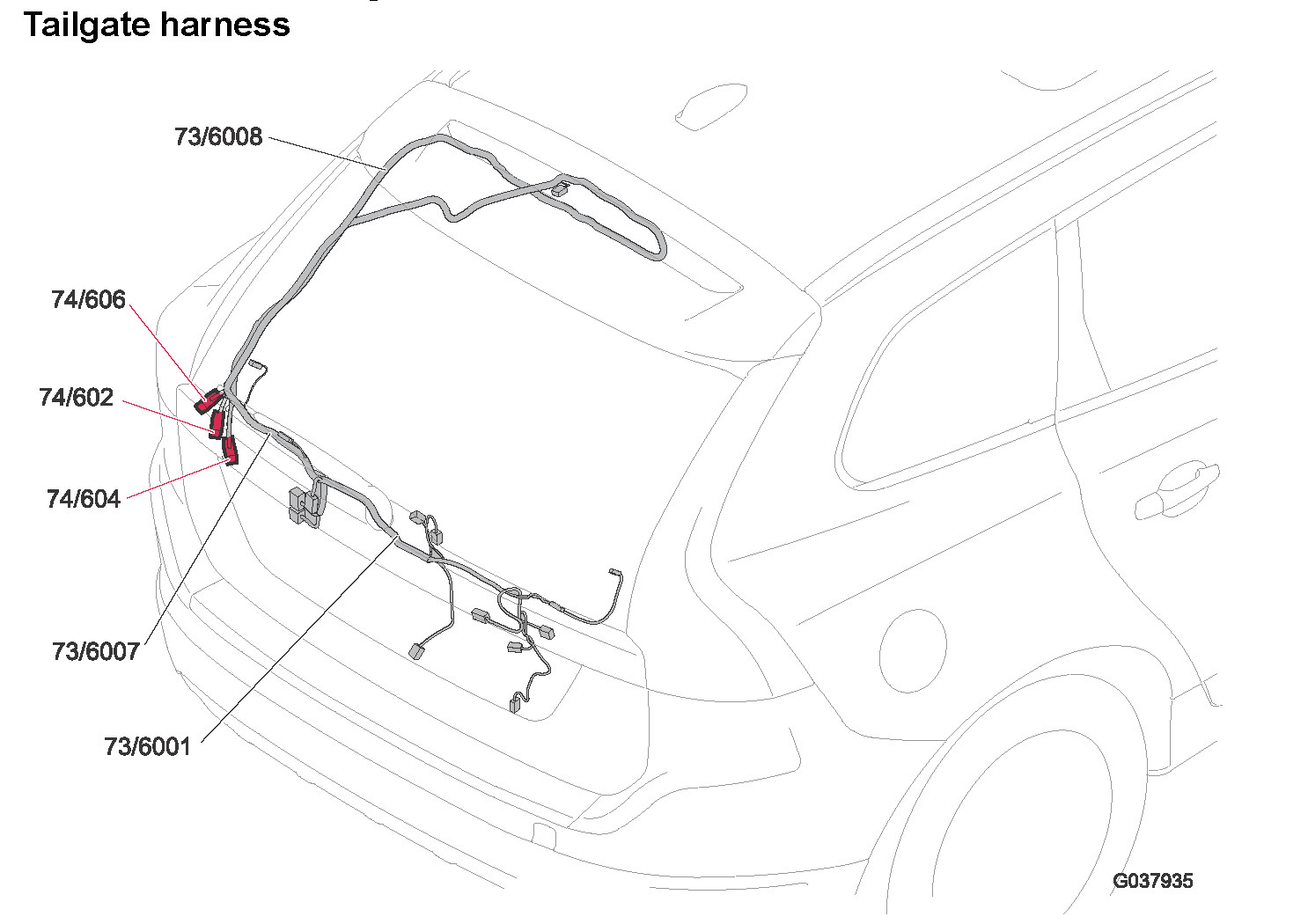

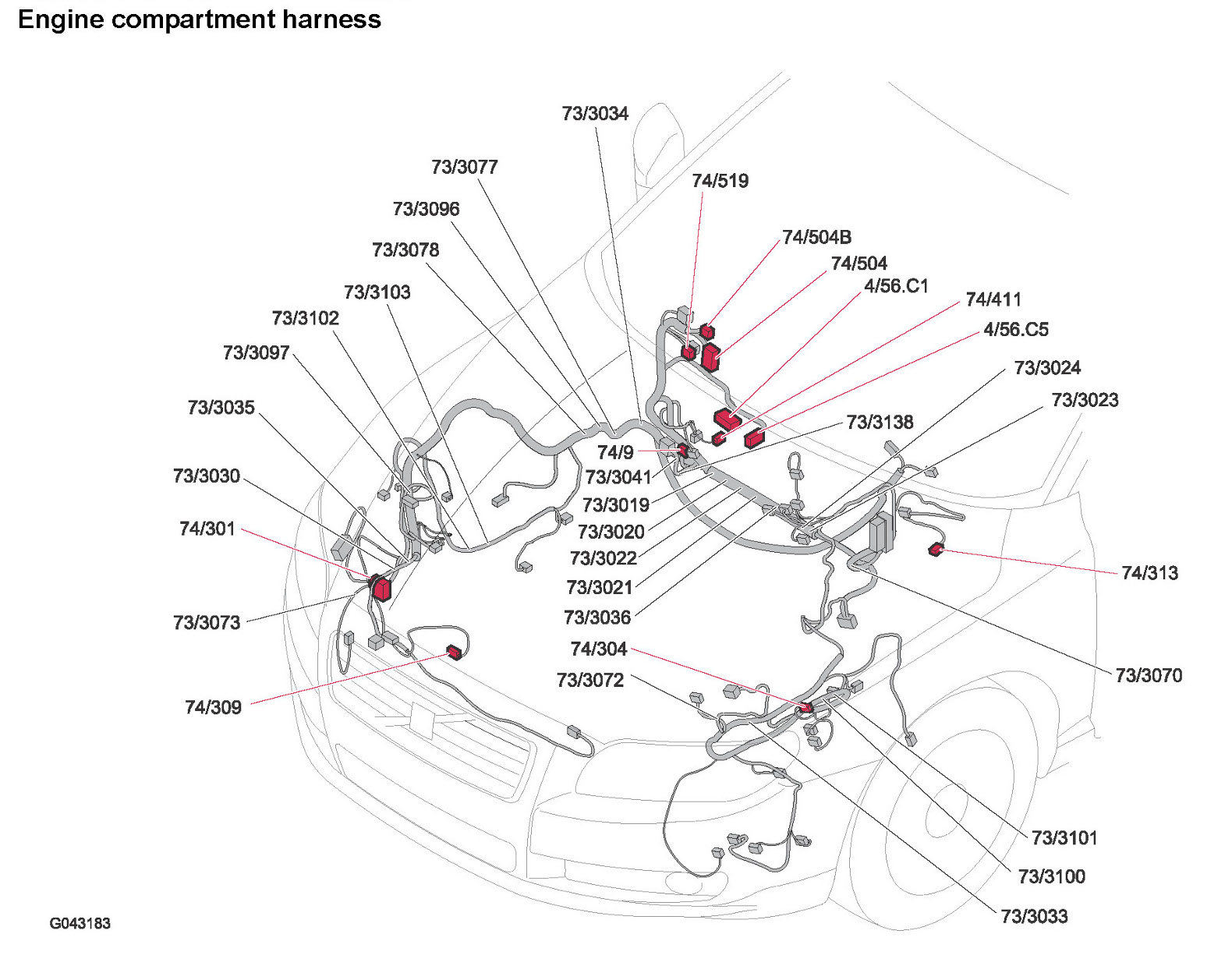

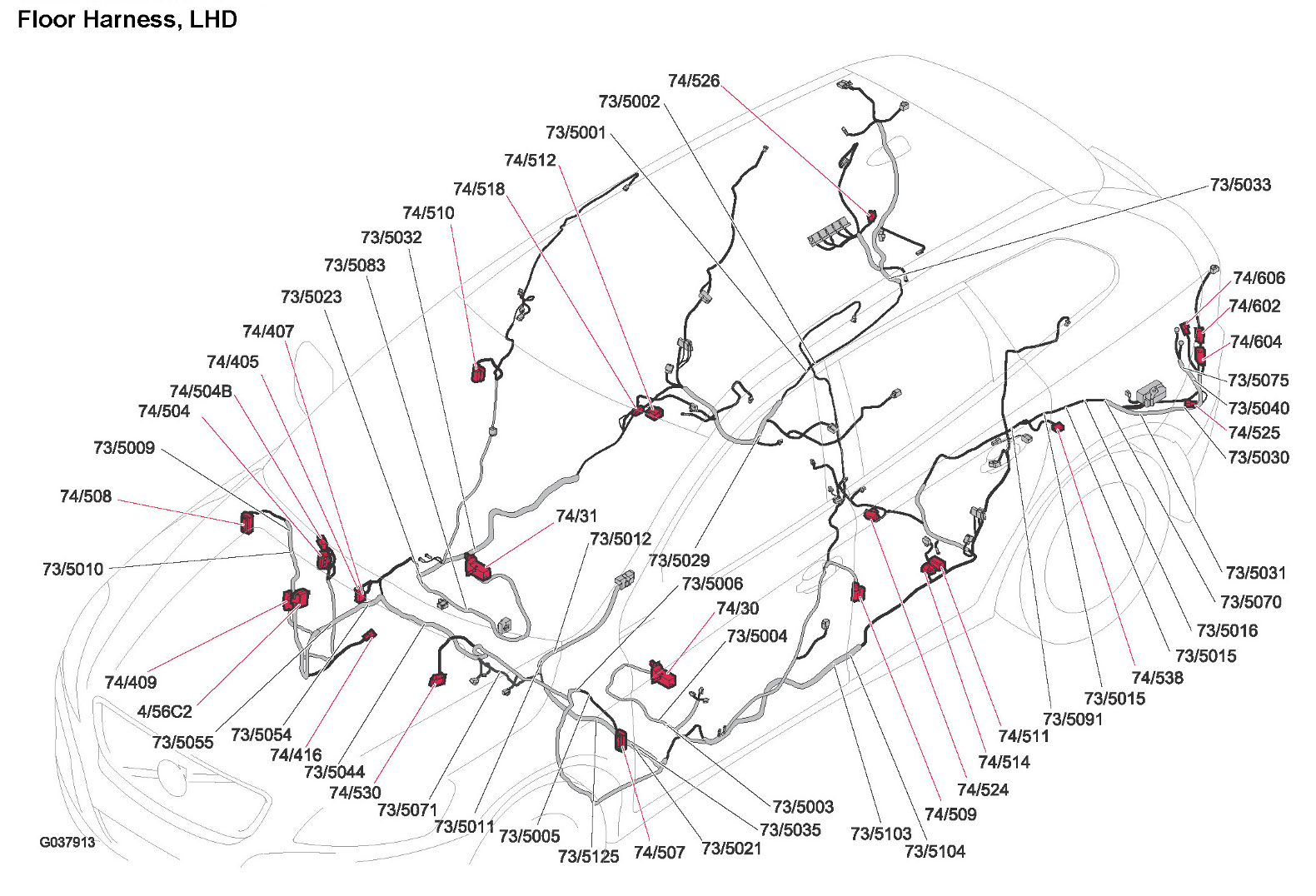

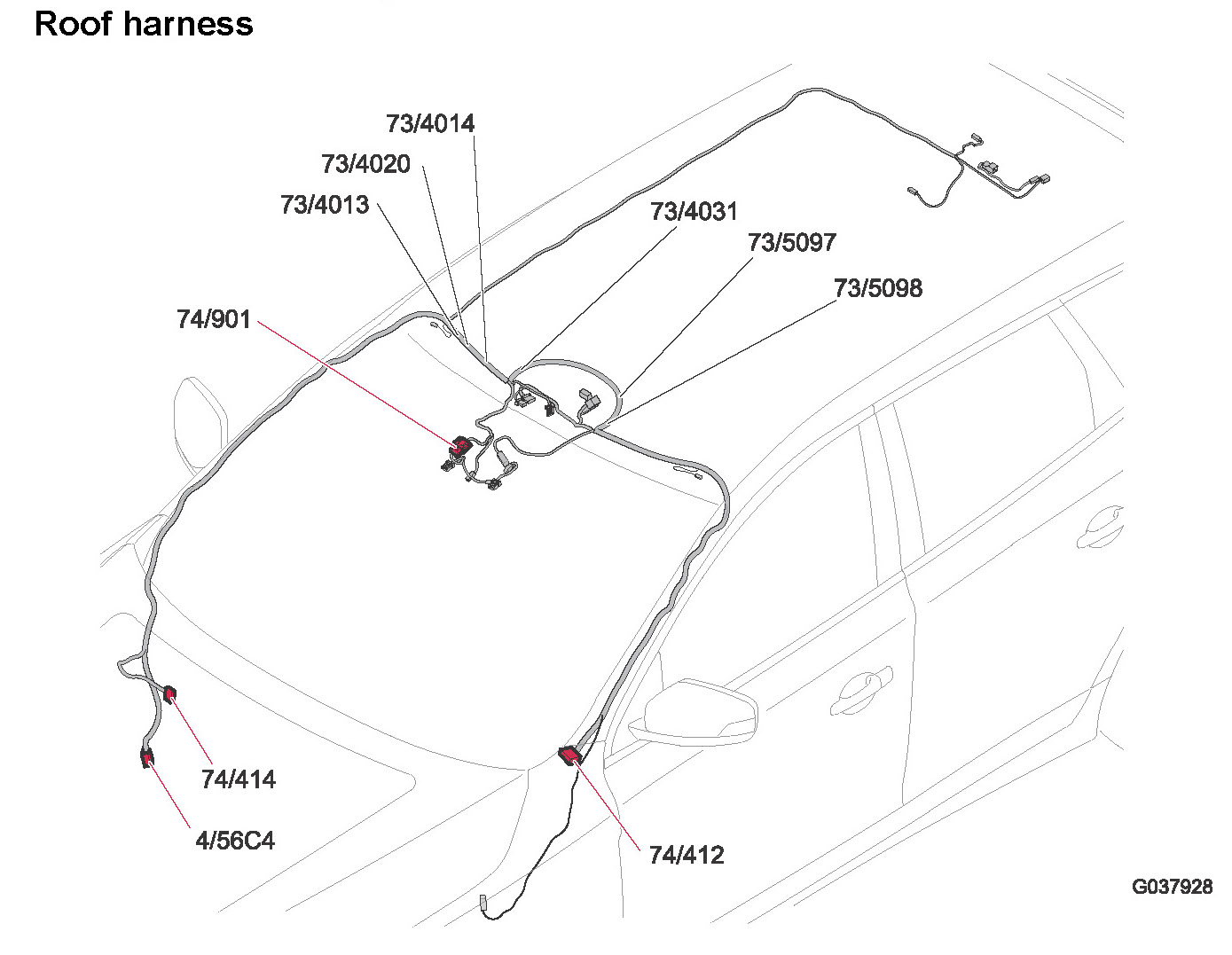

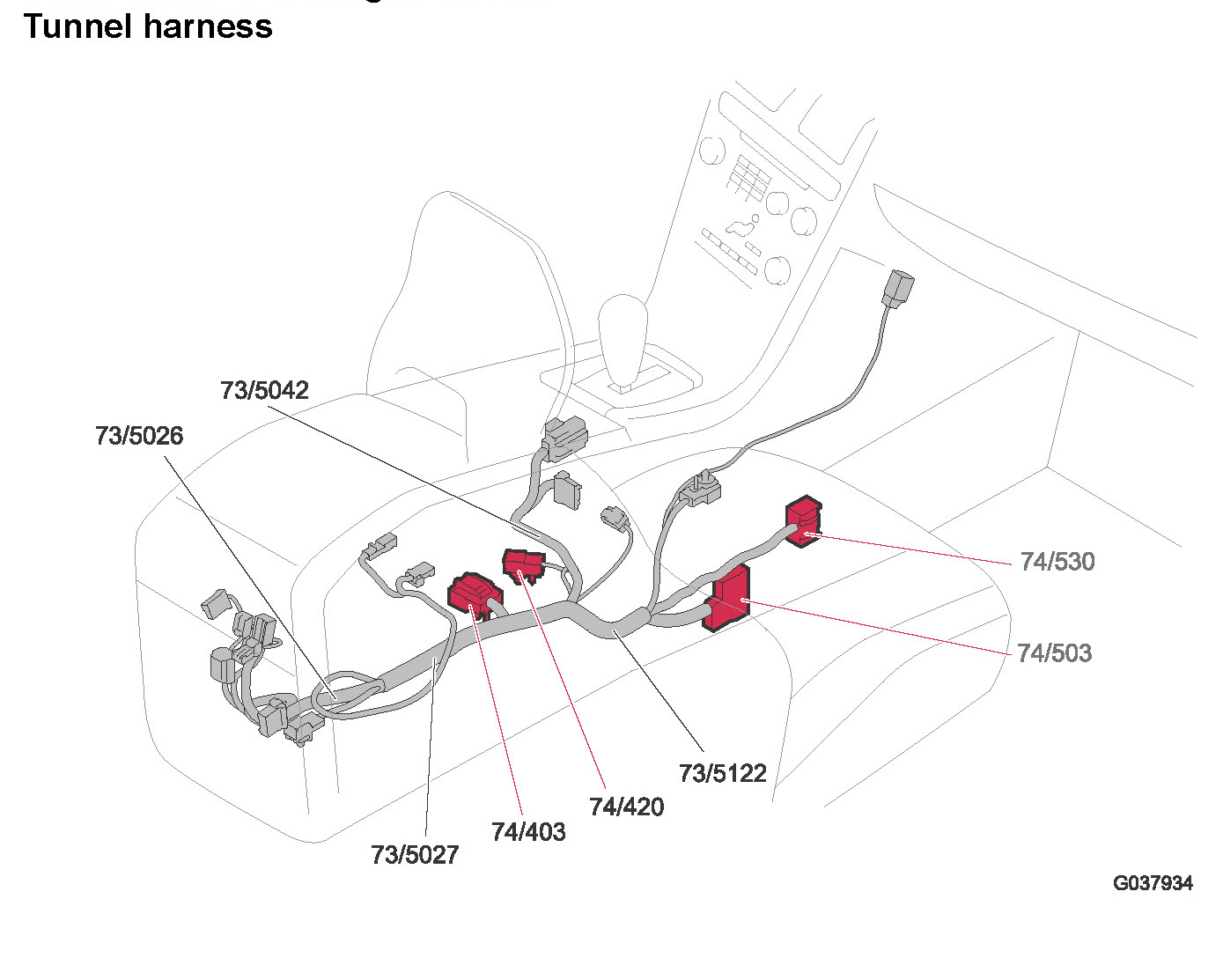

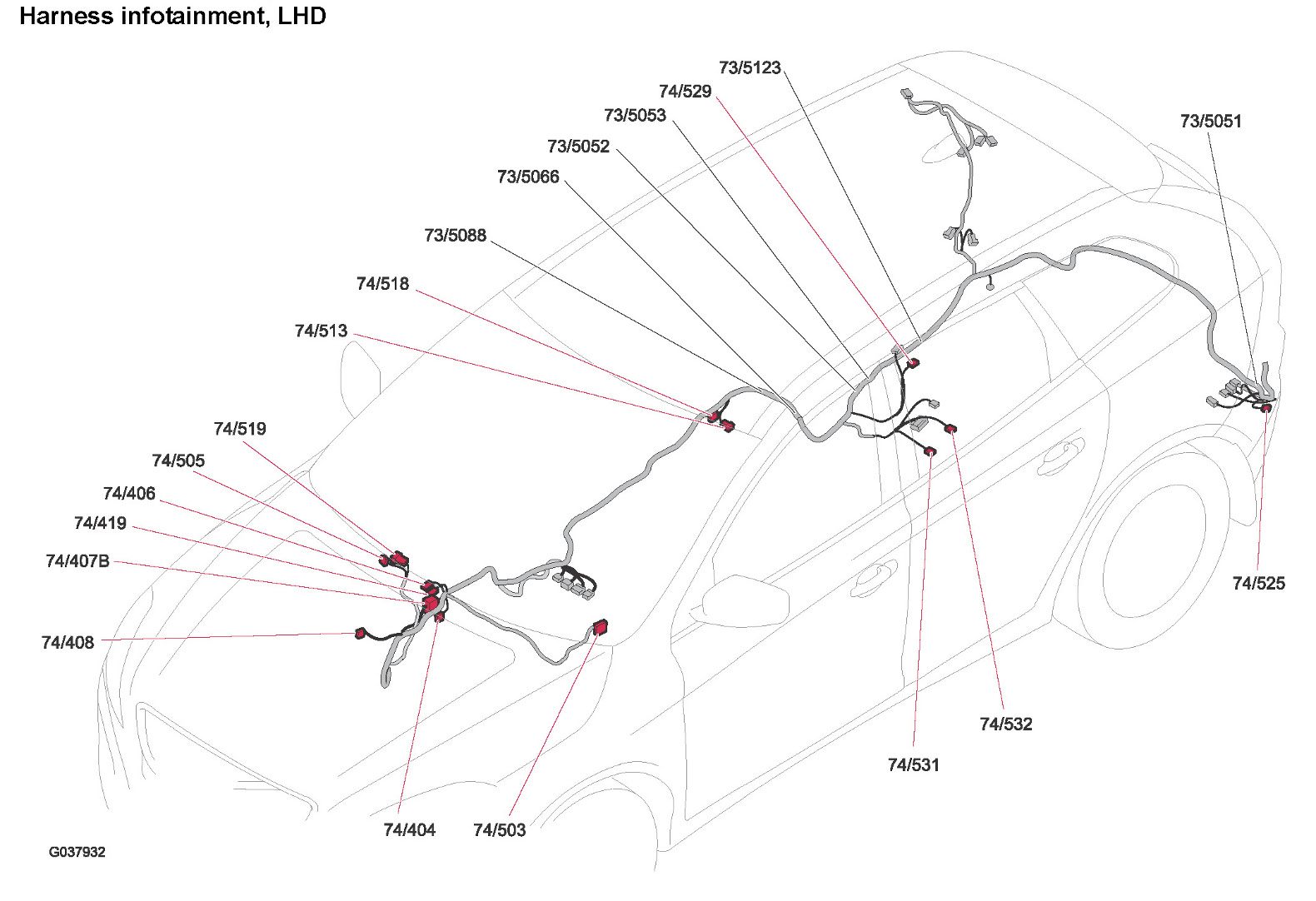

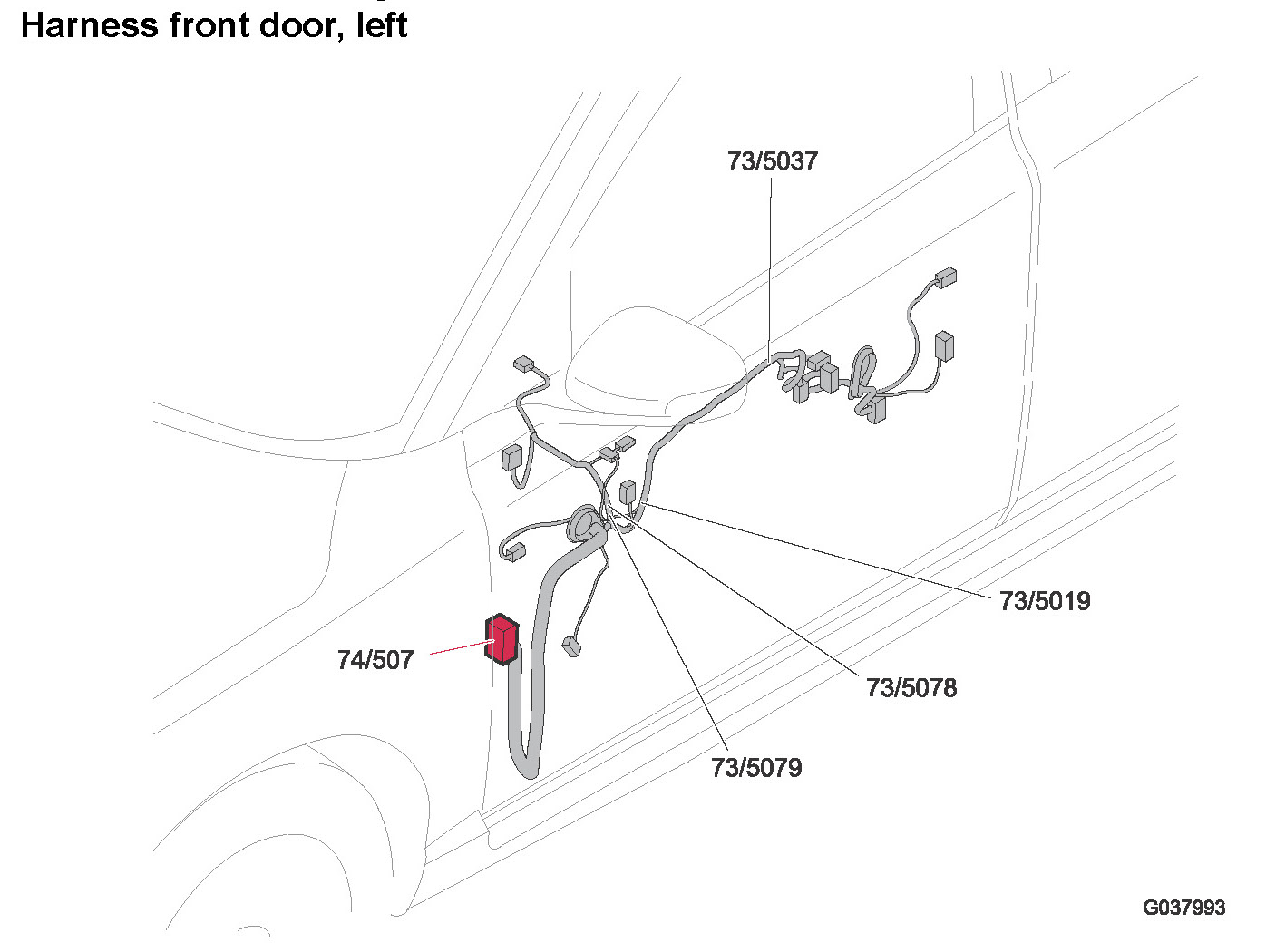

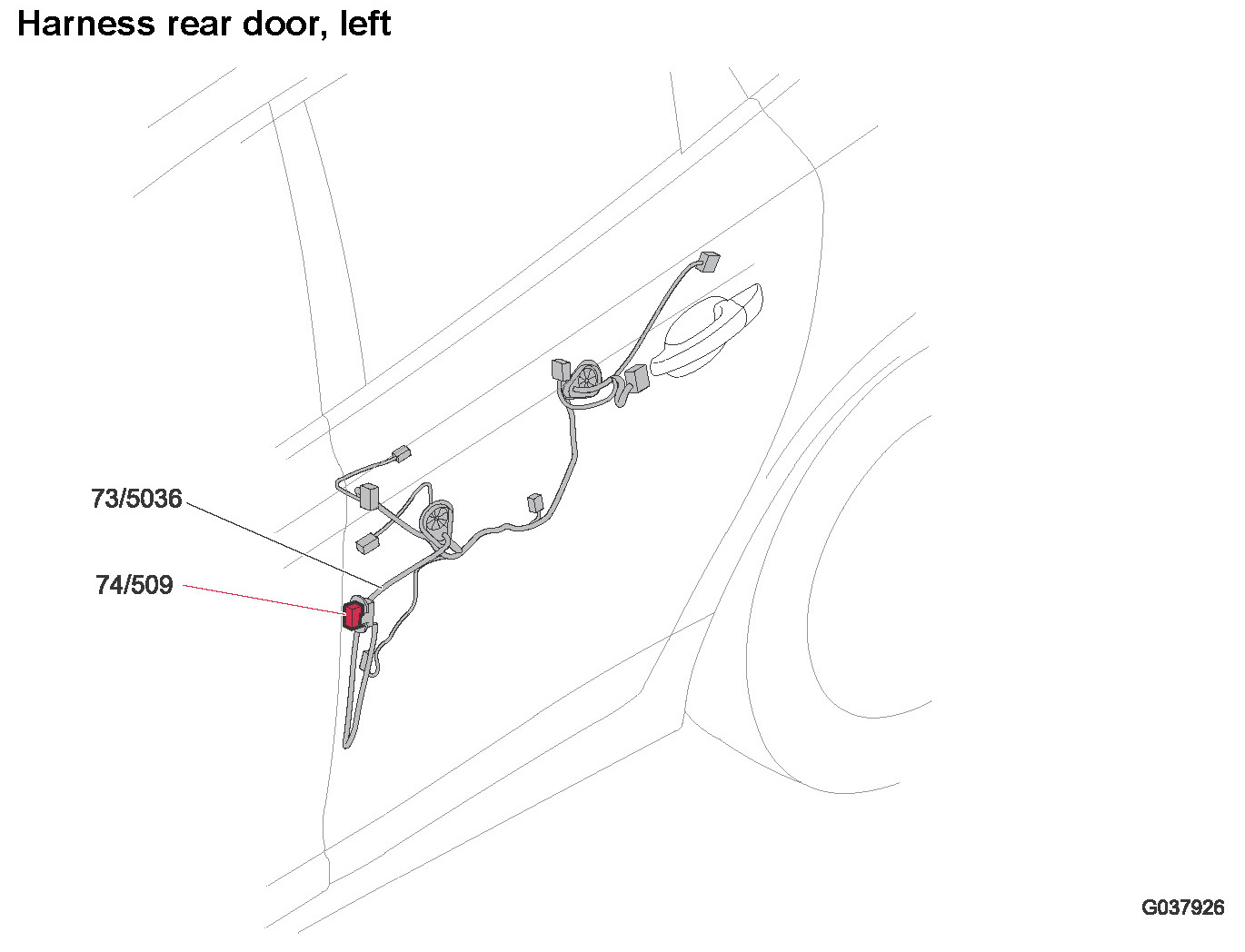

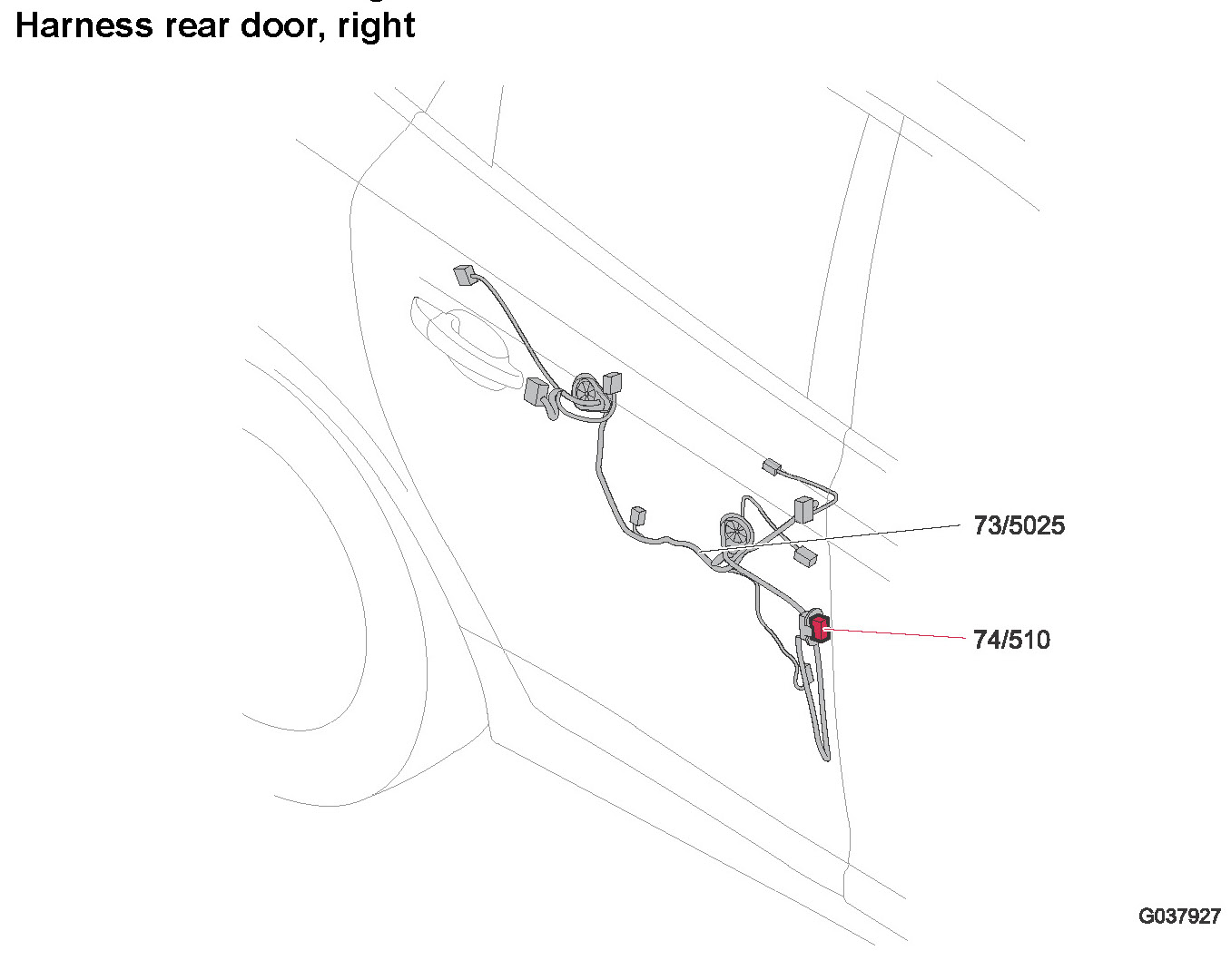

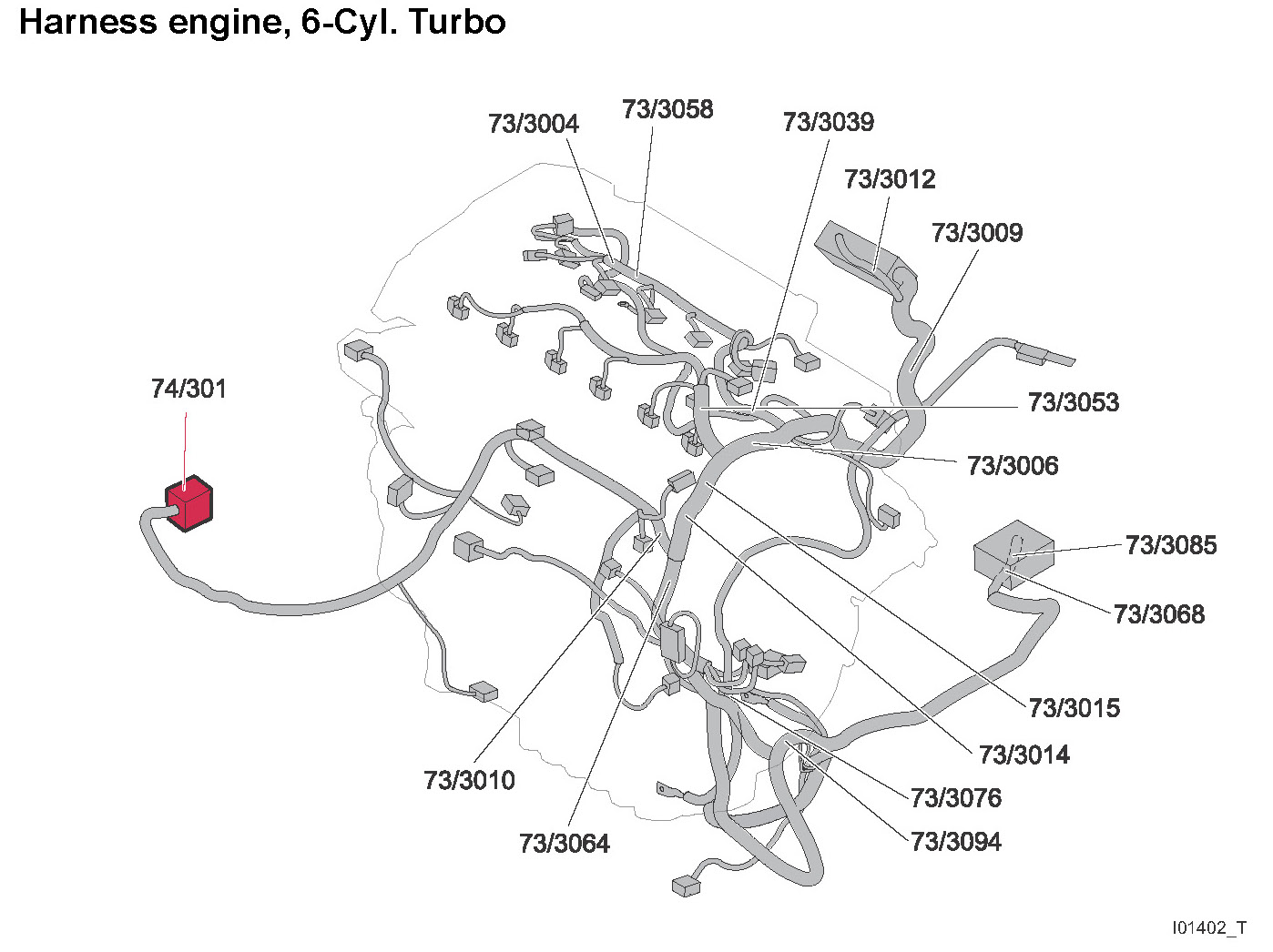

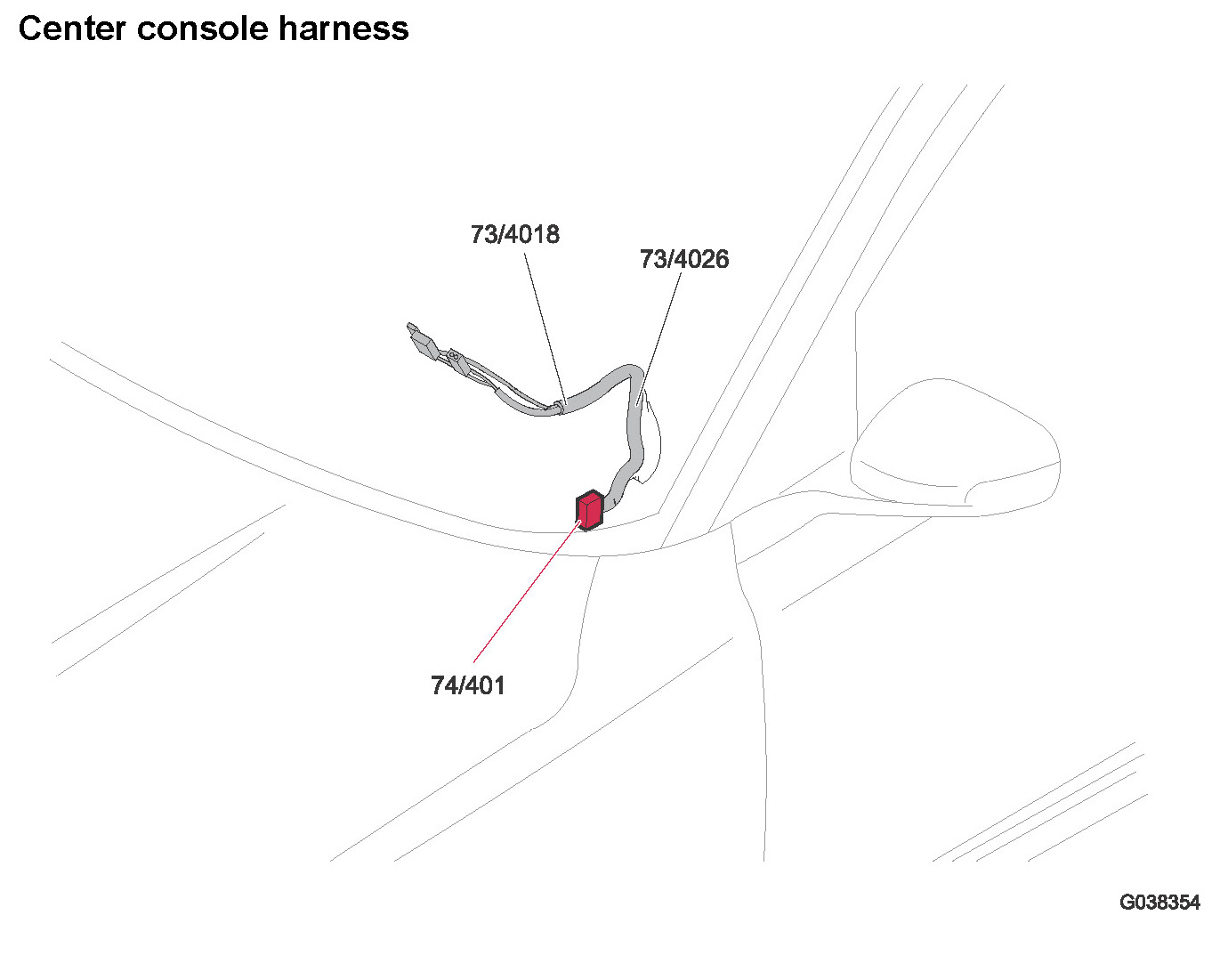

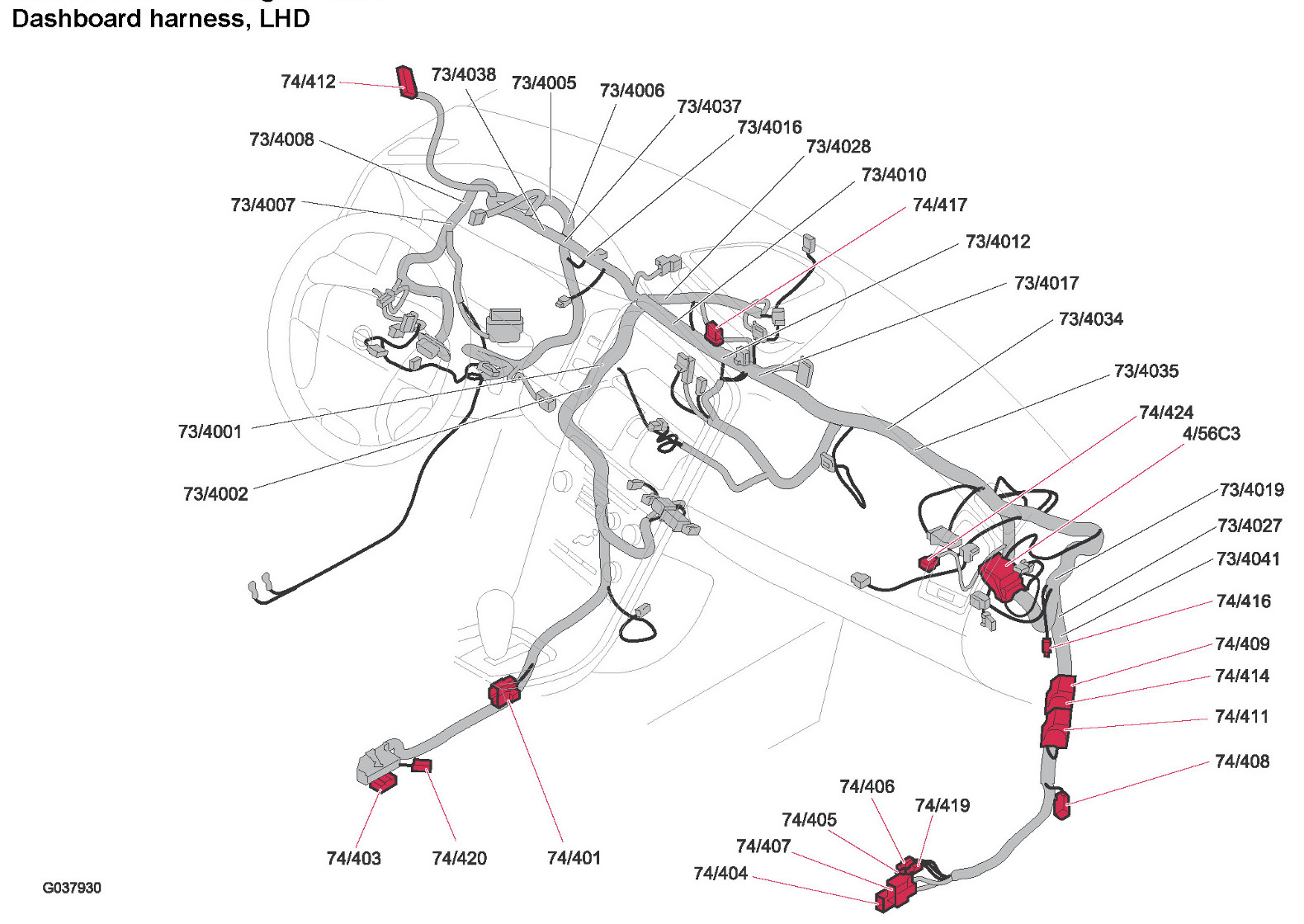

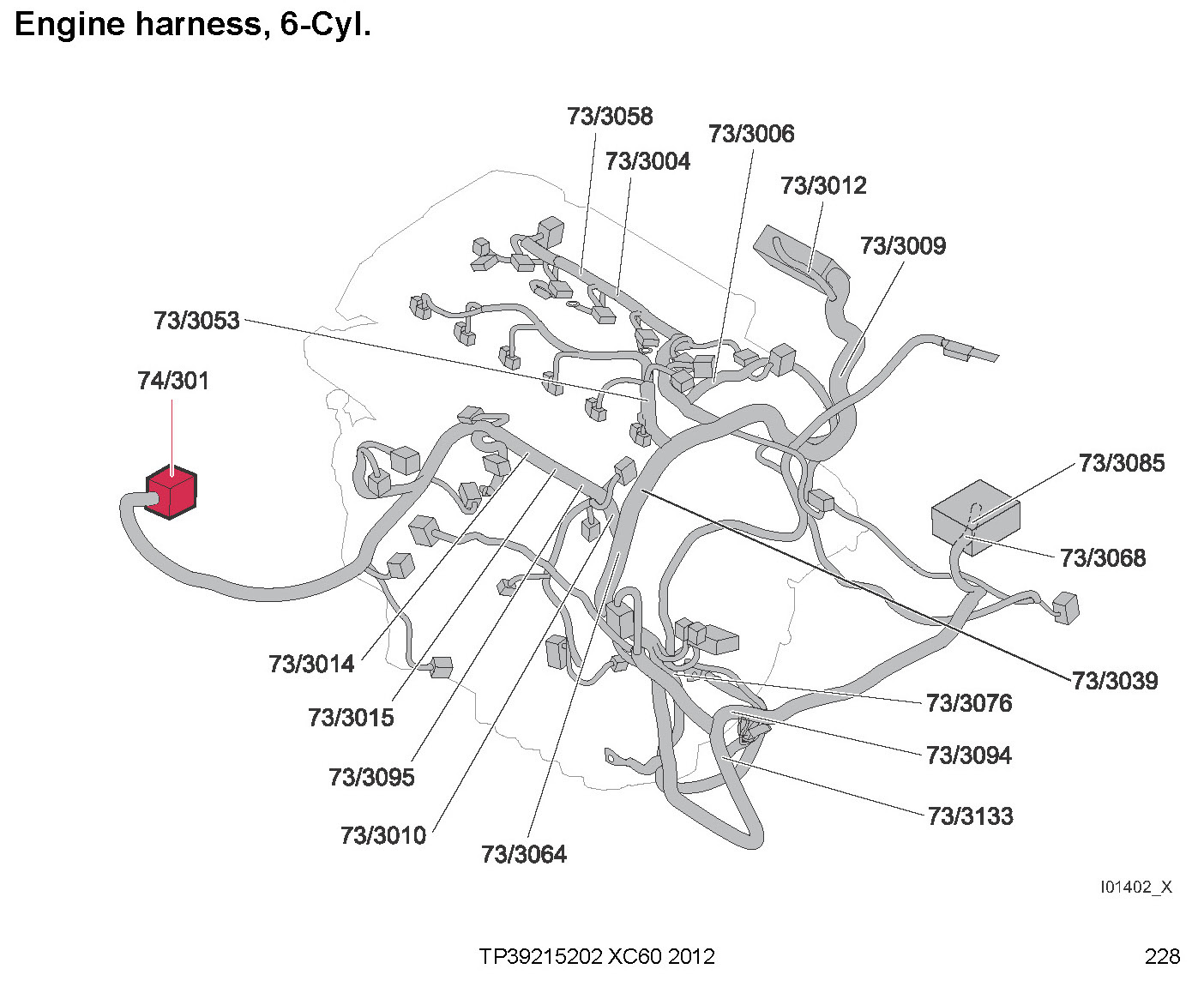

Cable Harness Routing In Vehicle

















































Image Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
