Home >> Volvo >> 2012 >> XC60 R Design AWD L6-3.0L Turbo VIN 90 B6304T4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trailer Lamps >> Cable Harness Towbar/Tow Hitch 4-Pin

Cable Harness Towbar/Tow Hitch 4-Pin

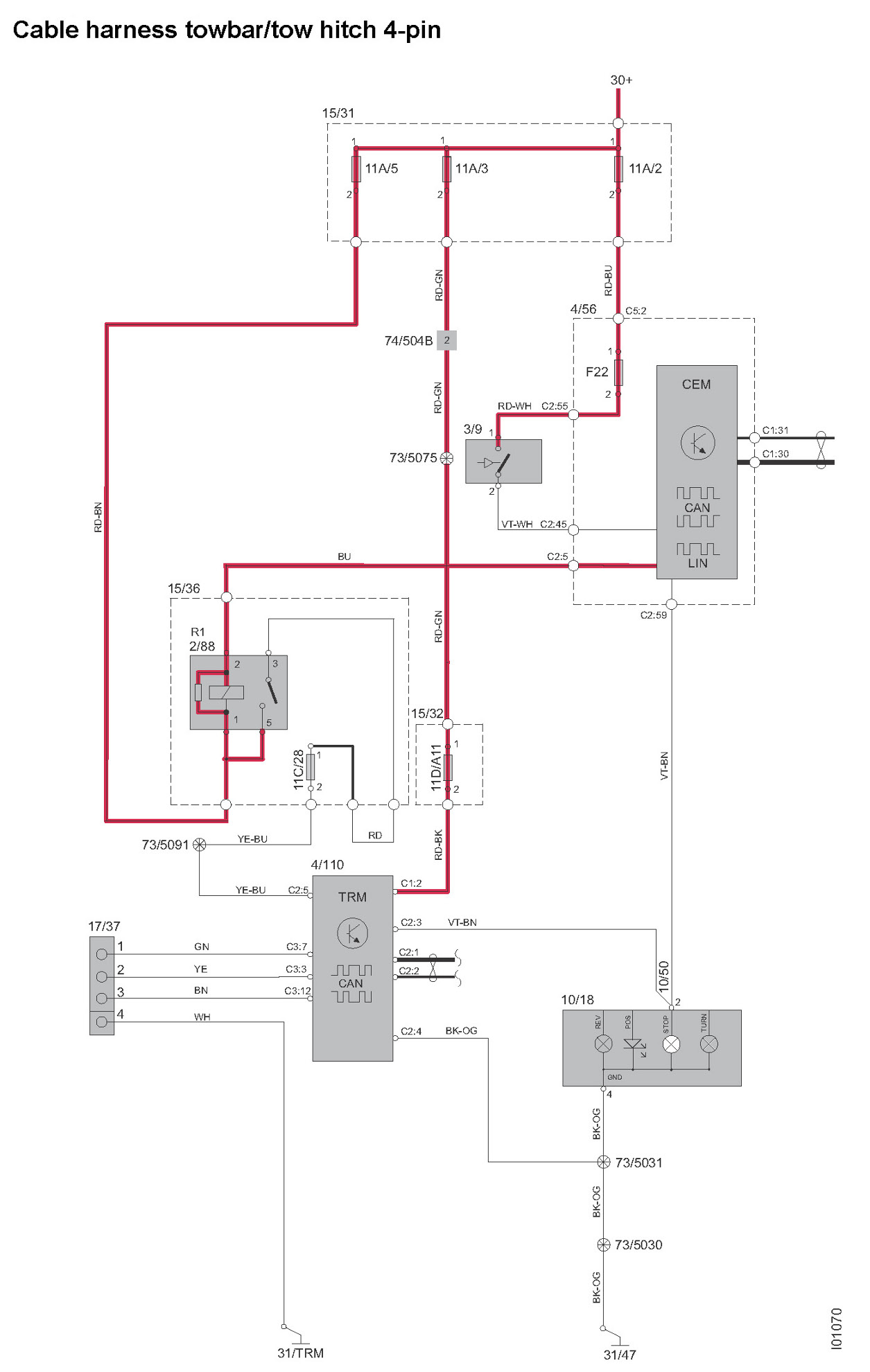

Cable Harness Towbar/tow Hitch 4-pin







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
