Heating and Air Conditioning

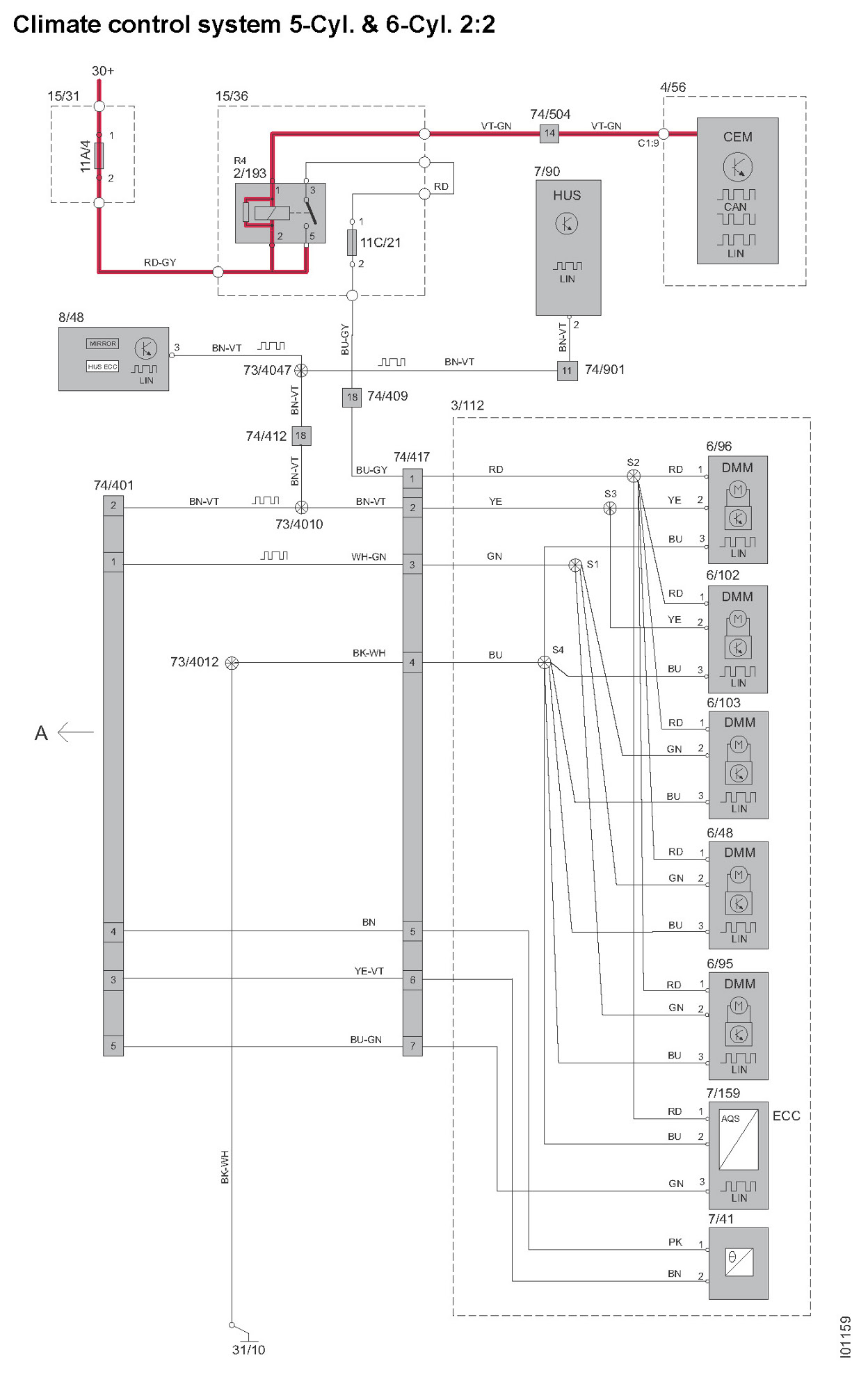

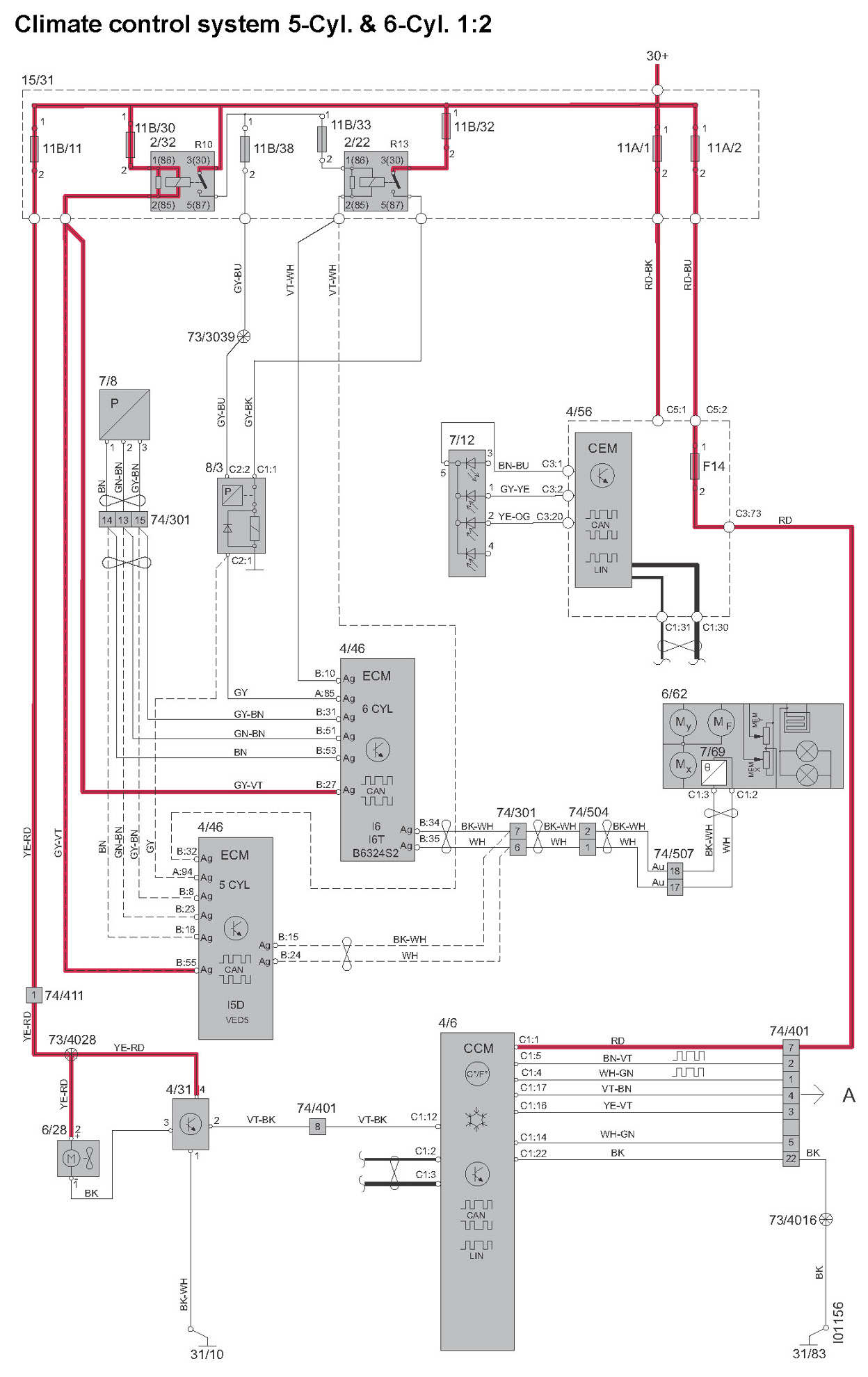

Climate Control System 5-Cyl. & 6-Cyl.










Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
