Home >> Volvo >> 2012 >> XC60 R Design AWD L6-3.0L Turbo VIN 90 B6304T4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Entertainment Systems >> Television / Monitor

Television / Monitor

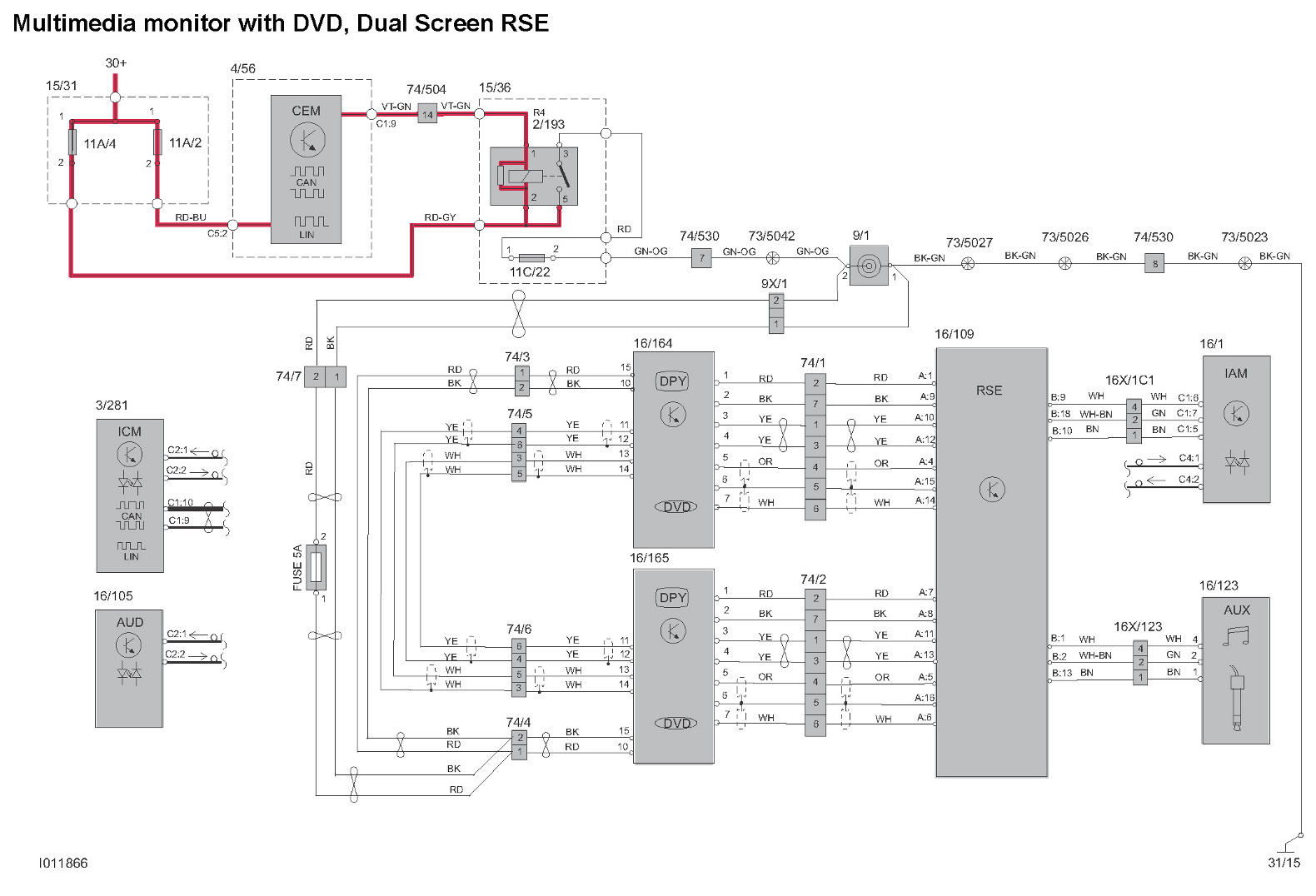

Multimedia Monitor With DVD, Dual Screen RSE







Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
